Intended audience: developers new to working on rancher or developers not familiar with certain components and concepts of rancher. This should be the next step after reading "Getting Start with Rancher".
Goal: kickstart development by explaining heavily used rancher concepts/components/constructs.
Alternate Resources: The primary docs and our blog both explain many concepts not mentioned here.
General API Docs: https://github.com/rancher/api-spec/blob/master/specification.md
Much of the Rancher API works by forwarding requests to and from the Kubernetes API. Most objects in the Rancher API map to Kubernetes objects. Kubernetes comes with some of these objects out of the box. Others were added by creating CRDs. CRDs (custom resource definitions) are a means of extending the Kubernetes API by creating custom objects. Rancher creates CRDs by defining them in Types, then instantiating them on startup. Types will also create the schema that is used to add the object to the rancher API.
Once a CRD has been added, objects of the CRD can be interacted with via kubectl or the Rancher API. These interactions can be one of 5 verbs: create, get, update, delete, watch. Sometimes when one of these is done to a CRD, we want to perform some logic. For example:
I made a CRD called DownloadURL. If a DownloadURL is created I want rancher to try to download from that URL.
This is done using a Controller. Every CRD has a controller which can add logic that will be executed whenever a CRD is has been created, removed, etc..
Kubernetes CRD Doc:
CRDs with Rancher:
Additional Resources:
- Writing Kubernetes Controllers for CRDs: Challenges, Approaches and Solutions - Alena Prokharchyk
- Extending Kubernetes 101
- Kubernetes Feature Prototyping with External Controllers and Custom Resource Definitions
- Extending the Kubernetes API: What the Docs Don't Tell You
- client-go: The Good, The Bad and The Ugly
- Extending Kubernetes: Our Journey & Roadmap

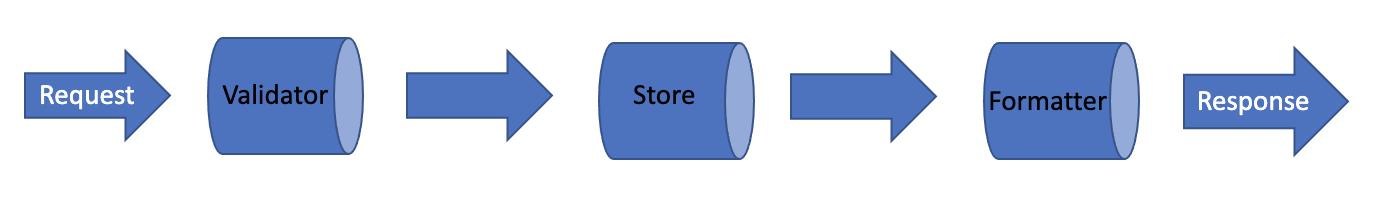

Validators, formatters, and stores are used to handle requests. By using these three components, we can return errors, transform a request, and redact information from a response. Data passes through these components in the order shown above: first the validator, then the store, and finally the formatter.
If you want to check the input of an API request before it is forwarded to Kubernetes, then you probably want to use a validator. Another use of a validator is to block a type of request. It is worth mentioning that validators are only applied to Post and Put requests. Validators are assigned to a schema in one of two setup.go files. Files containing validators are found in the /pkg/api/customization/ folder. An example of the NodeTemplate validator found in /pkg/api/customization/nodetemplate/validation.go:
package nodetemplate
import (
"github.com/rancher/norman/httperror"
"github.com/rancher/norman/types"
"github.com/rancher/rancher/pkg/configfield"
)
const (
Amazonec2driver = "amazonec2"
Azuredriver = "azure"
Vmwaredriver = "vmwarevsphere"
DigitalOceandriver = "digitalocean"
)
func Validator(request *types.APIContext, schema *types.Schema, data map[string]interface{}) error {
driver := configfield.GetDriver(data)
if driver == "" {
return httperror.NewAPIError(httperror.MissingRequired, "a Config field must be set")
}
if data != nil {
data["driver"] = driver
}
return nil
}The above example checks if the input data map contained a field, and returned an error if it did not. If it did, it assigned a value derived from the field onto a separate field of the input map - this is another capability of a validator.
Assigning the validator to the NodeTemplate schema in the setup.go file:
func NodeTemplates(schemas *types.Schemas, management *config.ScaledContext) {
schema := schemas.Schema(&managementschema.Version, client.NodeTemplateType)
npl := management.Management.NodePools("").Controller().Lister()
f := nodetemplate.Formatter{
NodePoolLister: npl,
}
schema.Formatter = f.Formatter
s := &nodeTemplateStore.Store{
Store: userscope.NewStore(management.Core.Namespaces(""), schema.Store),
NodePoolLister: npl,
CloudCredentialLister: management.Core.Secrets(namespace.GlobalNamespace).Controller().Lister(),
}
schema.Store = s
schema.Validator = nodetemplate.Validator
}If you want to change the output for a schema in the API, you would probably want to use a formatter. Formatters are created and assigned similarly to validators. A formatter is the only place where links can be redacted from
Action handlers are user when the API needs to be capable of an action that is not: create, update, delete, get, watch. An example would be the 'rollback' or 'upgrade' actions for Apps.
Stores can transform and filter requests, similar to formatters and validators. Unlike validators, stores can be used for Delete, Watch, List, and ByID, in addition to Create and Update.
Rancher has many dependencies, some of which are owned/maintained by rancher. Some functionalities for rancher will need to be modified or added by updating the Rancher dependency in its own repository, then importing the new version into rancher.
Some rancher maintained dependencies and what they do:
kontainer-engine: breaks down provisioning logic based on kubernetes provider (RKE, GKE, EKS, AKS) repo: https://github.com/rancher/kontainer-engine
types: defines schemas and structures used in kubernetes repo: https://github.com/rancher/types
norman: contains bulk of under the hood API logic, responsible for talking to and from kube API repo: https://github.com/rancher/norman
docker-machine: ranchers fork of dockers docker-machine. Responsible for node proivisioning (VMs) repo: https://github.com/rancher/machine docs: https://github.com/rancher/rancher/wiki/Developing-Docker-Machine
Some rancher dependencies are used as binaries, while others are imported and used as go libraries.
Binary dependencies, such as docker-machine, can be used by rancher locally by simply building the binary for the dependency you are working on and putting it into your path. Once your commits have been merged into master, a release has to be build for them. The release will contain the library and must be created by someone with admin privileges. Once the release is created, a PR must be made for the Rancher repository that sets the binary version to the new one that contains your changes. This is usually set in package/Dockerfile.
Controllers in rancher run in one of three contexts. The three contexts are scaled, management, and user. In an HA setup there are:
- one ScaledContext per management server (3)
- one ManagementContext per management server master (1)
- one UserContext per cluster
When referring to contexts a 'user' means a single downstream cluster.
There are two general sets of controllers, as you can see in pkg/controllers, management and user. The management controllers use the ManagementContext and handles actions relevant to the management server master, and the user controllers use the UserContext and handle actions relevant to their individual downstream cluster.
In many cases there will be two different controllers dealing with the same resources. For instance there are two controllers dealing with PRTB's (project-role-template-binding):
- a management controller which handles any global changes, like sending cluster-scoped RBAC privileges to downstream clusters
- a user controller which handles any operations in the downstream clusters, like updating a local clusterRole to match any roleTemplate changes
There are three types of tests that concern most developers: unit, integration, and validation.
Unit tests are written in go and handle code-level functionality such as testing single functions. They should have the a file name that is ends with "_test.go", like "catalog_test.go".
Integration tests are written in python using Rancher's Python client. They mainly interact with the API the same way the UI or CLI would, in order to test high-level functionality. See the readme for more info.
Validation tests are also written in python using Rancher's Python client, and are used for more complex use-cases such as multi-cluster tests, as well as ensuring stability across cloud providers. They are not run on every PR via CI, but rather on a set schedule against different cloud environments. See the readme for more info.
