Small mistake re: esp8266 shim rev2 on the esp8266 page

[espruino-discuss2]

Posted at 2016-01-06 by Snerkle

On http://www.espruino.com/ESP8266 there is a small error in the table titled Shim wiring: that gives the pin mappings from the espruino pico to the esp8266 for each revision of the shim.

For the rev 2 shim pin A2 is listed twice!

I believe the second occurence:

GPIO2 N/C A2

should read

GPIO2 N/C A0

I used the Eagle PCB visualisation tool at http://3dbrdviewer.cytec.bg/ to take a close look at the shim PCB and think I've got this right.

[gfwilliams]

Posted at 2016-01-06 by @gfwilliams

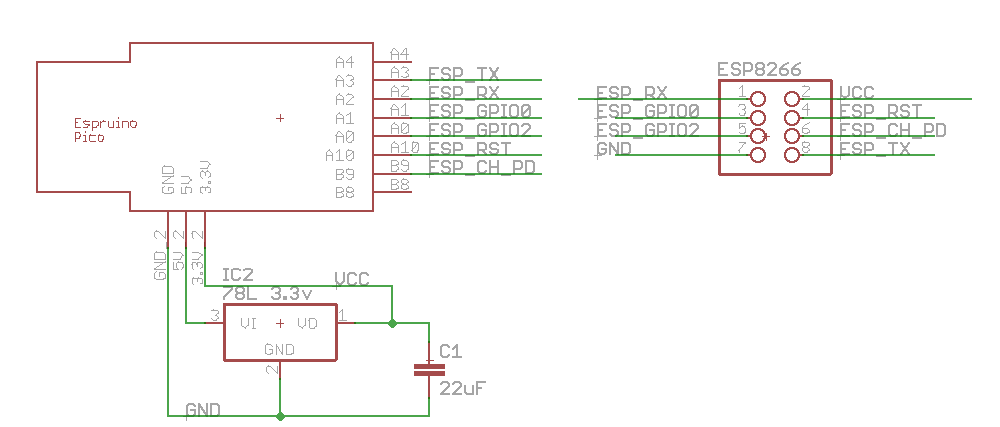

Great - thanks! I just checked and that's correct - I've just updated the docs and it'll go on the website next time I do an update.

Attachments:

• Screenshot from 2016-01-06 10:57:35.png

[espruino-discuss2]

Posted at 2016-01-06 by Snerkle

Great,
and chance of seeing the the Eagle files for the espruino Pico 1r4 go up on gitHub at https://github.com/espruino/EspruinoBoard/tree/master/Pico/eagle

[gfwilliams]

Posted at 2016-01-06 by @gfwilliams

Ok, just done :)

[gfwilliams]

Posted at 2016-01-06 by @gfwilliams

Also, PDF versions are at https://github.com/espruino/EspruinoBoard/tree/master/Pico/pdf - which is a bit easier if you don't have eagle :)
