biplanar gradient coils

[gBringout]

hbbdyzf would like to know if a bi-planar gradient coil could be designed (see #5 )

[gBringout]

Changing the Target Field used for the design:

CoilDesign/streamBEM/examples/TransMag_PlanarDrive.m

Lines 37 to 39 in d1411ef

	% define the target ampltiude
	targetCoil = 'DriveZ';
	bc(3).coefficient(1,1) = 0.003; % MPI - Drive Z - Homogeneous Field in Z Direction

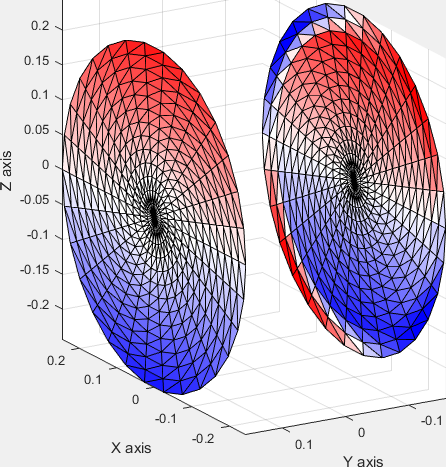

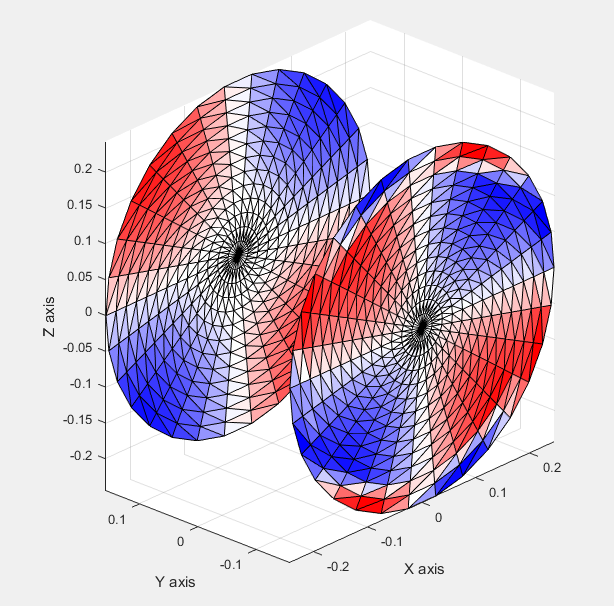

I can get first results :

which are close to some design available, for example on https://onlinelibrary.wiley.com/doi/epdf/10.1002/cmr.b.20049 Figure 2

But it seems that their are some issues on the bottom (y<0) mesh. -> #8 opened

So what do you mean that the results are wrong? Do you have a minimal examples/fork to share?
