ESP8266 how compile firmware with FS and Graphics libs?

[espruino-discuss]

Posted at 2017-05-17 by PressAnyKey

Hello everyone.
I have ESP-12E devboard.
I need FS and Graphics libs for my project but this libs are removed from firmware by default.
How can i compile firmware with this libs for my board with 4mb flash size?
Thanks for reply.

[espruino-discuss]

Posted at 2017-05-17 by @MaBecker

Hi @pressanykey this is a good point to start https://github.com/espruino/Espruino/blob/master/README_Building.md#for-esp8266

---

Posted at 2017-05-18 by PressAnyKey

Hi @MaBecker I read this file and got stuck in make.
I downloaded all the necessary files, create compile.sh file with some vars exports and make. First libs colpiles correctly but make stuck in neopixel lib.

#! /bin/bash
export FAMILY=ESP8266
export BOARD=ESP8266_BOARD
export FLASH_4MB=1
export USE_NET=1
export USE_CRYPTO=1
export USE_TELNET=1
export USE_FILESYSTEM=1
export USE_GRAPHICS=1
export ESP8266_SDK_ROOT=/github/espressif
export PATH=$PATH:/github/espopensdk/esp-open-sdk/xtensa-lx106-elf/bin
export COMPORT=/dev/ttyUSB0
make clean && make $*

This is terminal output.

In file included from /home/noface/source/repos/github/espopensdk/esp-open-sdk/xtensa-lx106-elf/lib/gcc/xtensa-lx106-elf/4.8.5/include/stdint.h:9:0,
                 from /home/noface/source/repos/github/espruino/Espruino/src/jsutils.h:23,
                 from /home/noface/source/repos/github/espruino/Espruino/src/jspin.h:18,
                 from /home/noface/source/repos/github/espruino/Espruino/libs/neopixel/jswrap_neopixel.h:15,
                 from libs/neopixel/jswrap_neopixel.c:28:
/home/noface/source/repos/github/espopensdk/esp-open-sdk/xtensa-lx106-elf/xtensa-lx106-elf/include/stdint.h:80:20: error: conflicting types for 'int32_t'
 typedef signed int int32_t;
                    ^
In file included from libs/neopixel/jswrap_neopixel.c:21:0:
/home/noface/source/repos/github/espressif/include/c_types.h:17:29: note: previous declaration of 'int32_t' was here
 typedef signed long         int32_t;
                             ^
In file included from /home/noface/source/repos/github/espopensdk/esp-open-sdk/xtensa-lx106-elf/lib/gcc/xtensa-lx106-elf/4.8.5/include/stdint.h:9:0,
                 from /home/noface/source/repos/github/espruino/Espruino/src/jsutils.h:23,
                 from /home/noface/source/repos/github/espruino/Espruino/src/jspin.h:18,
                 from /home/noface/source/repos/github/espruino/Espruino/libs/neopixel/jswrap_neopixel.h:15,
                 from libs/neopixel/jswrap_neopixel.c:28:
/home/noface/source/repos/github/espopensdk/esp-open-sdk/xtensa-lx106-elf/xtensa-lx106-elf/include/stdint.h:81:22: error: conflicting types for 'uint32_t'
 typedef unsigned int uint32_t;
                      ^
In file included from libs/neopixel/jswrap_neopixel.c:21:0:
/home/noface/source/repos/github/espressif/include/c_types.h:15:29: note: previous declaration of 'uint32_t' was here
 typedef unsigned long       uint32_t;
                             ^
cc1: warning: unrecognized command line option "-Wno-float-conversion" [enabled by default]
cc1: warning: unrecognized command line option "-Wno-discarded-qualifiers" [enabled by default]
Makefile:744: error«libs/neopixel/jswrap_neopixel.o»

---

Posted at 2017-05-19 by PressAnyKey

Make of the firmware was successed (without errors and with few warnings) but after flash firmware on my esp8266 devboard i can't connect by WebIDE to this board (Wemos D1 mini board and LoLin v3 board). At this time i can connect to original Espruino board and it's weird. I don't know why but it's happened. I'll try to fix it but i don't know what i need to do :(

When i try to connect to this boards WebIDE write to console

Connected
>
Disconnected

---

Posted at 2017-05-19 by Wilberforce

After flashing the USB/serial device gets left in an odd state.

I have found if you connect with a serial programme ( screen on linux, putty ) on windows with a baud of 115200 after flashing, you get a command prompt. Then quit this, and try the connection from the web ide with baud rate 115200.

The other related factor is the ESP8266 outputs on the UART and boot at 76800 baud and spits out:

 ets Jan  8 2013,rst cause:1, boot mode:(3,7)

load 0x40100000, len 25336, room 16
tail 8
chksum 0x1f
load 0x3ffe8000, len 2544, room 0
tail 0
chksum 0xb8
load 0x3ffe89f0, len 1044, room 8
tail 12
chksum 0x7f
csum 0x7f

I think this output confuses the web ide, an if you look in the console you see 'overrun' or something similar, and the nodejs serialport connection is disconnected. Perhaps this could be commented out and see if this works a work around?

---

Posted at 2017-05-19 by hungryforcodes

What were the warnings? I never get any warnings anymore when compiling my firmware (and yes I do use the FS + FLASH options), since @wilberforce fixed all the type casting.

---

Posted at 2017-05-19 by @MaBecker

@pressanykey, please share the used flash command

---

Posted at 2017-05-19 by PressAnyKey

@hungryforcodes there is few not critical (i think so) warnings about declaration variables.

libs/network/esp8266/network_esp8266.c: In function 'esp8266_dumpSocketData':
libs/network/esp8266/network_esp8266.c:198:9: warning: variable 'stateMsg' set but not used [-Wunused-but-set-variable]
   char *stateMsg;
         ^
libs/network/esp8266/network_esp8266.c:182:9: warning: variable 'creationTypeMsg' set but not used [-Wunused-but-set-variable]
   char *creationTypeMsg;
         ^

and this

libs/network/esp8266/network_esp8266.c: At top level:
cc1: warning: unrecognized command line option "-Wno-float-conversion" [enabled by default]
cc1: warning: unrecognized command line option "-Wno-discarded-qualifiers" [enabled by default]

---

Posted at 2017-05-19 by PressAnyKey

@MaBecker, i used this flash commands.

python ../esptool.py --port /dev/ttyUSB0 --baud 115200 erase_flash
python ../esptool.py --port /dev/ttyUSB0 --baud 115200 write_flash --flash_freq 80m --flash_mode qio --flash_size 32m 0x0000 boot_v1.6.bin 0x1000 espruino_esp8266_user1.bin 0x3FC000 esp_init_data_default.bin 0x3FE000 blank.bin

---

Posted at 2017-05-19 by PressAnyKey

@wilberforce, yep at first connect i have message like

Connected
>load 0x40100000, len 25336, room
Disconnected

I connect to board by minicom and get it as output when reset the board

---

Attachments:

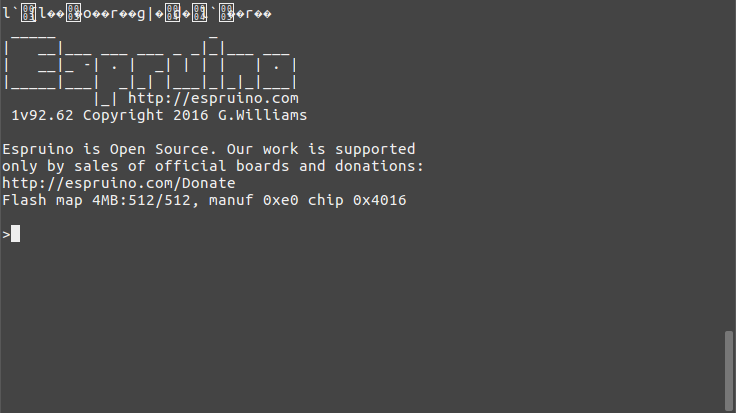

• Снимок экрана от 2017-05-19 15-53-41.png

---

Posted at 2017-05-19 by @MaBecker

@pressanykey - great, so it works.

if you like do

export BOARD=ESP8266_4MB

make clean
make
make flash_erase
make flash

and you will get a Flash map 4MB:1024/1024 with lots off free flash areas

---

Posted at 2017-05-19 by PressAnyKey

@MaBecker, yes, firmware is working fine but the first line on output is weird and WebIDE won't connect to the board.
Thank you for tips about flash areas. Compiles correctly. Now espruino output

 _____                 _
|   __|___ ___ ___ _ _|_|___ ___
|   __|_ -| . |  _| | | |   | . |
|_____|___|  _|_| |___|_|_|_|___|
          |_| http://espruino.com
 1v92.62 Copyright 2016 G.Williams

Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
Flash map 4MB:1024/1024, manuf 0xe0 chip 0x4016

Maybe you know how can i fix the first weird line of output? It's totaly not comfortable without WebIDE :( Thank you again.

p.s. Now i use minicom and web ide at the same time. If i connected to port with minicom, WebIDE connected fine but can't use the terminal side, but WebIDE can upload code from the right side.

---

Posted at 2017-05-19 by PressAnyKey

@wilberforce, where i can comment it out?

---

Posted at 2017-05-19 by @MaBecker

please share the CONSOLE output of the WEB IDE

---

Posted at 2017-05-19 by PressAnyKey

I was flash some code to the board and it start connect to the WebIDE. I don't know why but it work for me.

---

Posted at 2017-05-19 by @MaBecker

glad to hear that it now works for you.

---

Posted at 2017-05-19 by PressAnyKey

I have new problem.
When i try to connect SD card console outputs to me this errors

Running onInit()...
Uncaught Error: Unimplemented on Linux
 at line 10 col 25
  E.connectSDCard(spi,D2);
                        ^

but when i try to start SD card at original espruino i have this in output

Running onInit()...
ERROR: Unable to mount SD card : NOT_READY

What i'm doing wrong?

---

Posted at 2017-07-25 by Polypod

@pressanykey, how did you solve the "error: conflicting types for 'int32_t'" ?
I had the same, I changed the int32_t and uint32_t from long to int in c_types.h ( I used esp_iot_sdk_v1.5.0), I am not sure I did right, but it compiled, and surprise, the binary is working fine with today espruino code v1.93.162. here's the result :

 _____                 _
|   __|___ ___ ___ _ _|_|___ ___
|   __|_ -| . |  _| | | |   | . |
|_____|___|  _|_| |___|_|_|_|___|
          |_| http://espruino.com
 1v93.162 Copyright 2016 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
Flash map 4MB:512/512, manuf 0xef chip 0x4016
