WGPU / WebGPU ImGui Mandelbrot example

This is a very short example that use WebGPU as graphics backend and (also) ImGui as User Interface. It was written in C++ and can be compiled in native mode (for a standalone desktop application) or with EMSCRIPTEN to perform it via the web browser

Live online WebGPU Mandelbrot example (with and w/o ImGui user interface):

• wgpu - Mandelbror - GLFW example
• wgpu - Mandelbror - SDL2 example
• wgpu+imgui - Mandelbror - GLFW example
• wgpu+imgui - Mandelbror - SDL2 example

Simply: L_Button-down - ZoomIn, R_Button-down - ZoomOut *Obviously is necessary to use a brows with WebGPU capability: e.g. Chrome-Canary, FireFox Nightly, Safari Technology Preview ...

These examples use Google DAWN (as WGPU SDK) to build native executable (CMakeLists.txt).

WGPU /WebGPU is still in the experimental phase and in continuous development, you can view the current status of these examples: what does it work and what it doesn't work, and also in which O.S. it was tested and with wath backends (Vulkan / DX / Metal)

Anyway feel free to open a issue

How to Build

Clone using git clone --recursive https://github.com/BrutPitt/wgpu_imgui_mandelbrot_example

It's necessary to have installed SDL2 and / or GLFW (development package)

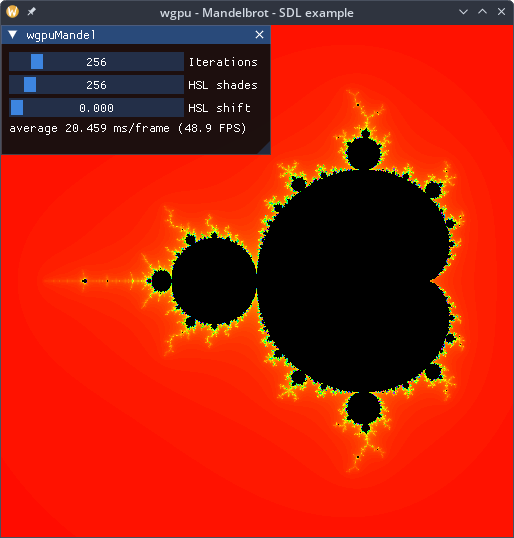

Native - Desktop application

• clone Google DAWN (WGPU SDK): git clone https://dawn.googlesource.com/dawn
• Install Ninja build system (DAWN requires)
• from any folder example type: cmake -B build -DCURRENT_DAWN_DIR=path/where/cloned/dawn (absolute or relative path)
• then cmake --build build

Emscripten - Web Browser application (WASM)

• Install Emscripten SDK following the instructions: https://emscripten.org/docs/getting_started/downloads.html
• Install Ninja build system
• emcmake cmake -G Ninja -B build
• cmake --build build

then

• emrun build/wgpu_mandelbrot.html

or

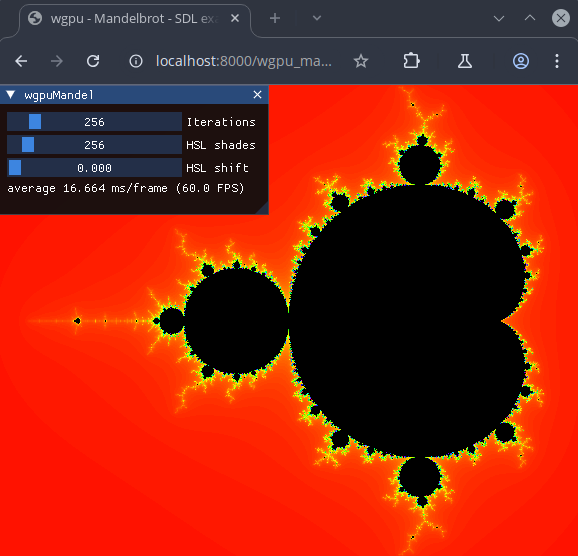

• python -m http.server (in a build folder)... then open WGPU browser with url: http://localhost:8000/wgpu_mandelbrot.html

notes

Any folder has two files main_js_inline.cpp and main_oldStyle.cpp: they do the same thing in Emscripten, but with two different techniques. (no differences in wgpu native)

• main_js_inline.cpp: acquire Adapter and Device using a JS calls (via EM_ASYNC_JS macro)
• main_oldStyle.cpp : acquire Adapter and Device using old callbacks alredy mofdified in wgpu native, but not yet in EMSCRIPTEN

Indeed EMSCRIPTEN still uses some old functions (already changed in DAWN/WGPU native) and Google DAWN maintain a private fork of the Emscripten WebGPU bindings emdawnwebgpu (a step forward) to speedup the WebGPU evolution (emdawnwebgpu is available in DAWN repo) *waiting to know how to use it for external (no DAWN internal) examples

"default" (not offcial) WGPU ImGui examples, currently in PullRequest, and available here:

• imgui_example_glfw_wgpu ==> Live demo
• imgui_example_sdl2_wgpu ==> Live demo

*they are not yet available in official ImGui branch

You can follow ImGui WebGPU examples Pull Request
