Reol marked projekt (Shelf Market project)

A WPF application for managing a shelf market, built with .NET 9 and following Clean Architecture principles.

About

This project is a sample implementation of a shelf market management system using WPF for the user interface and .NET 9 for the backend. It adheres to Clean Architecture principles, ensuring a clear separation of concerns and maintainability.

Table of Contents

• About
• Getting Started
  • Prerequisites
  • Installation
• Clean Architecture Folder Structure
  • Layer Responsibilities
    • Domain Layer
    • Application Layer
    • Infrastructure Layer
    • UI Layer
  • Dependency Flow
• Functionality
  • Shelf Market Management
  • EAN-13 Barcode Generator (Shelf + Price)

Getting Started

Prerequisites

• .NET 9 SDK
• MSSQL Server or SQL Server Express

Installation

Clean Architecture Folder Structure

The following folder structure is designed to follow the principles of Clean Architecture, promoting separation of concerns and maintainability. Each layer has a specific responsibility, and dependencies flow inward.

ShelfMarket/
│
├── src/
│   ├── ShelfMarket.Domain/
│   │   ├── Entities/                   # Core business entities
│   │   ├── ValueObjects/               # Immutable objects representing concepts
│   │   ├── Interfaces/                 # Repository and service interfaces
│   │   └── DomainServices/             # Business logic services
│   │
│   ├── ShelfMarket.Application/
│   │   ├── UseCases/                   # Application use cases
│   │   ├── DTOs/                       # Data Transfer Objects
│   │   ├── Interfaces/                 # Application service interfaces
│   │   └── Services/                   # Application services
│   │
│   ├── ShelfMarket.Infrastructure/
│   │   ├── Persistence/                # Database context and migrations
│   │   ├── Repositories/               # Repository implementations
│   │   ├── ExternalServices/           # Integrations with external systems
│   │   └── Configuration/              # Infrastructure configurations
│   │
│   └── ShelfMarket.UI/
│       ├── Views/                      # UI views and pages
│       │   └── UserControls/           # Reusable UI components
│       ├── ViewModels/                 # UI logic and data binding
│       ├── Commands/                   # UI commands and actions
│       └── Helpers/                    # UI utility classes
│
├── tests/
│   ├── ShelfMarket.Domain.Tests/
│   ├── ShelfMarket.Application.Tests/
│   └── ShelfMarket.Infrastructure.Tests/
│
└── README.md

Layer Responsibilities

Domain Layer

• Pure business logic
• No dependencies on other layers
• Contains entities, value objects, domain events, and domain services

Application Layer

• Coordinates use cases
• Depends on the Domain layer
• Defines interfaces for services and repositories
• Contains DTOs and application-level logic

Infrastructure Layer

• mplements interfaces from Application and Domain layers
• Handles persistence (e.g., EF Core), external APIs, file systems, etc.
• Should not contain business logic

UI Layer

• WPF or other front-end technology
• Implements MVVM pattern
• Talks to Application layer via ViewModels and Services

Dependency Flow

• UI → Infrastructure → Application → Domain
• Infrastructure implements interfaces from Domain/Application
• No layer should depend on Infrastructure Use Dependency Injection to wire everything together, typically in the UI layer's composition root.

Functionality

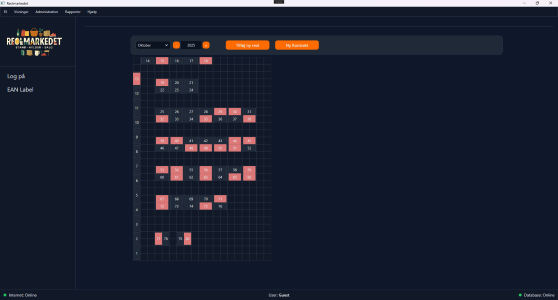

Shelf Market Management

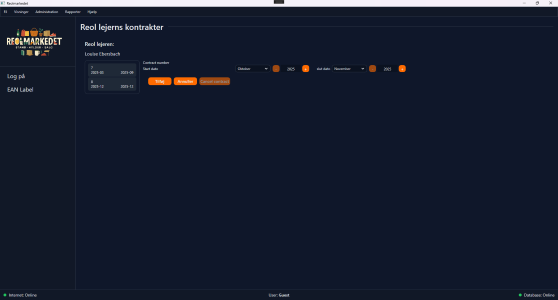

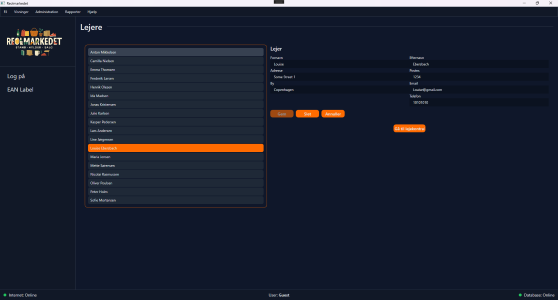

• Manage Tenants.
• Manage Shelves.
• Manage Shelf Types
• Assign Shelves to Tenants.

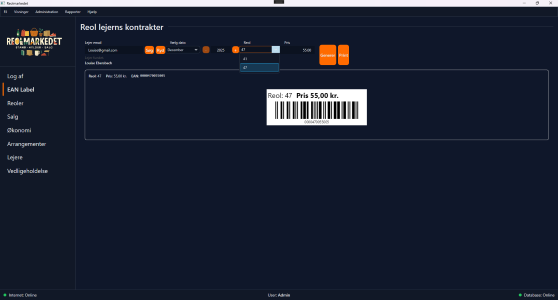

EAN‑13 Barcode Generator (Shelf + Price)

• Generate EAN-13 barcodes for products.
• Input Tenant shelf id and price.
