NVMe Exporter

Prometheus exporter for NVMe SMART log and OCP SMART log metrics, inspired by fritchie nvme exporter and following Prometheus node_exporter design patterns.

Features

• Resilient Operation: Continues running even if nvme-cli is not installed, user is not root, or version is unsupported (similar to Prometheus node_exporter behavior)
• Graceful Degradation: Logs errors and increments failure metrics instead of crashing
• Flexible Collector Management: Enable/disable collectors individually using --collector.* and --no-collector.* flags
• OCP Metrics by Default: OCP SMART log metrics are enabled by default and gracefully disabled if not supported by the drive
• Prometheus-Compatible: Follows Prometheus naming conventions and best practices

Specifications

Specification versions of reference:

• NVMe SMART log field descriptions can be found on page 209 of NVMe Base Specification Revision 2.1

• NVMe OCP SMART log field descriptions can be found on page 24 of Datacenter NVMe SSD Specification v2.5

Supported NVMe CLI Versions

Supports NVMe CLI versions 2.8 and above.

Note: The exporter will continue to run with unsupported versions, but may produce incorrect data or fail scrapes.

Repository Contents

• Docker: Sample Dockerfile for containerized deployment
• Kubernetes: Deployment manifests in resources/k8s/
• Grafana: Dashboard templates in resources/grafana/
  • SMART log and OCP dashboard
• Prometheus: Recording and alert rules in resources/prom/
• Systemd: Service unit files in resources/systemd/
• Scripts: Package installation hooks in resources/scripts/

Installation & Running

Prerequisites

• nvme-cli package installed on the host
• root privileges (recommended for full functionality)

Note: The exporter will start without root or nvme-cli installed, but scrapes will fail and increment the nvme_exporter_scrape_failures_total metric.

Quick Start

# Run with all default collectors enabled
nvme_exporter

# View help and available options
nvme_exporter --help

Command-Line Flags

Web Server Options

Flag	Description	Default
--web.listen-address	Address on which to expose metrics and web interface	:9998
--web.telemetry-path	Path under which to expose metrics	/metrics

Collector Options

Flag	Description	Default
--collector.<name>	Enable the specified collector	See table below
--no-collector.<name>	Disable the specified collector	-
--collector.disable-defaults	Disable all default collectors	false

Available Collectors

Collector	Description	Enabled by Default
info	NVMe device info metrics	✅ Yes
smart	NVMe SMART log metrics	✅ Yes
ocp	NVMe OCP (Open Compute Project) SMART log metrics	✅ Yes

Usage Examples

# Start with all default collectors on default port
nvme_exporter

# Listen on a specific address and port
nvme_exporter --web.listen-address=":9998"

# Change metrics endpoint path
nvme_exporter --web.telemetry-path="/nvme-metrics"

# Disable OCP metrics collection
nvme_exporter --no-collector.ocp

# Only collect SMART metrics (disable info and OCP)
nvme_exporter --collector.disable-defaults --collector.smart

# Enable only info and smart collectors
nvme_exporter --no-collector.ocp

Systemd Service

By installing the packaged version (RPM or DEB), the systemd unit will be automatically deployed and started as nvme_exporter.service.

If you are installing from tar.gz, the systemd unit file is provided in this repository.

To customize flags, edit the systemd unit file:

sudo systemctl edit nvme_exporter.service

Add your custom flags:

[Service]
ExecStart=
ExecStart=/usr/bin/nvme_exporter --web.listen-address=":9998" --no-collector.ocp

Container Deployment

With Podman

# Run with all default collectors
podman run --rm -d --network=host --privileged nvme_exporter

# Run with custom flags
podman run --rm -d --network=host --privileged nvme_exporter \
  --web.listen-address=":9998" \
  --no-collector.ocp

With Docker

# Run with all default collectors
docker run --rm -d --network=host --privileged nvme_exporter

# Run with custom flags
docker run --rm -d --network=host --privileged nvme_exporter \
  --web.listen-address=":9998" \
  --no-collector.ocp

Metrics

Exporter Metrics

Metric Name	Type	Description
nvme_exporter_scrape_failures_total	Counter	Total number of scrape failures due to validation errors (not root, nvme-cli not found, or unsupported version)

NVMe Device Metrics

This collector exports metrics from the following nvme-cli commands:

nvme list -o json
nvme smart-log <device> -o json
nvme ocp smart-add-log <device> -o json  # If OCP collector is enabled

All metrics include the device label with the device path (e.g., /dev/nvme0n1).

Info Metrics (collector: info)

Metric Name	Description	Labels
nvme_namespace	NVMe namespace identifier	device, generic_path, firmware, model_number, serial_number
nvme_used_bytes	Used storage capacity in bytes	device, generic_path, firmware, model_number, serial_number
nvme_maximum_lba	Maximum Logical Block Address	device, generic_path, firmware, model_number, serial_number
nvme_physical_size	Physical size in bytes	device, generic_path, firmware, model_number, serial_number
nvme_sector_size	Sector size in bytes	device, generic_path, firmware, model_number, serial_number

SMART Log Metrics (collector: smart)

Gauge Metrics

Metric Name	Description
nvme_critical_warning	Critical warnings for the controller state. Bits indicate spare capacity, temperature, degraded reliability, or read-only mode
nvme_temperature	Current composite temperature in Kelvin
nvme_avail_spare	Available spare capacity as a normalized percentage (0-100)
nvme_spare_thresh	Available spare capacity threshold below which an asynchronous event is generated
nvme_percent_used	Vendor-specific estimate of the percentage of device life used (0-255)
nvme_endurance_grp_critical_warning_summary	Critical warnings for endurance groups. Contains the OR of all critical warnings for all endurance groups

Counter Metrics

Metric Name	Description
nvme_data_units_read	Total number of 512-byte data units read from the NVMe device by the host
nvme_data_units_written	Total number of 512-byte data units written to the NVMe device by the host
nvme_host_read_commands	Total number of read commands completed by the controller
nvme_host_write_commands	Total number of write commands completed by the controller
nvme_controller_busy_time	Total time in minutes the controller was busy processing I/O commands
nvme_power_cycles	Total number of power cycles
nvme_power_on_hours	Total number of power-on hours. May not include time when the controller was powered but in a low power state
nvme_unsafe_shutdowns	Total number of unsafe shutdowns where the controller was not properly notified before power loss
nvme_media_errors	Total number of unrecovered data integrity errors detected by the controller
nvme_num_err_log_entries	Lifetime number of error log entries available in the Error Information Log
nvme_warning_temp_time	Total time in minutes the controller temperature exceeded the warning threshold
nvme_critical_comp_time	Total time in minutes the controller temperature exceeded the critical composite temperature threshold
nvme_thm_temp1_trans_count	Total number of times the controller transitioned to a lower power state due to thermal management (threshold 1)
nvme_thm_temp2_trans_count	Total number of times the controller transitioned to a lower power state due to thermal management (threshold 2)
nvme_thm_temp1_trans_time	Total time in seconds the controller was in a lower power state due to thermal management (threshold 1)
nvme_thm_temp2_trans_time	Total time in seconds the controller was in a lower power state due to thermal management (threshold 2)

OCP SMART Log Metrics (collector: ocp)

Note: These metrics are only available if the NVMe drive supports OCP vendor-specific commands. If not supported, the collector will log a warning and continue with other metrics.

Counter Metrics

Metric Name	Description
nvme_physical_media_units_written_hi	Physical media units written to the device (high 64 bits). Unit size is 1000h sector size
nvme_physical_media_units_written_lo	Physical media units written to the device (low 64 bits). Unit size is 1000h sector size
nvme_physical_media_units_read_hi	Physical media units read from the device (high 64 bits). Unit size is 1000h sector size
nvme_physical_media_units_read_lo	Physical media units read from the device (low 64 bits). Unit size is 1000h sector size
nvme_bad_user_nand_blocks_raw	Raw count of user NAND blocks that have been retired due to errors
nvme_bad_user_nand_blocks_normalized	Normalized value (0-100) of bad user NAND blocks relative to the maximum allowed
nvme_bad_system_nand_blocks_raw	Raw count of system area NAND blocks that have been retired due to errors
nvme_bad_system_nand_blocks_normalized	Normalized value (0-100) of bad system NAND blocks relative to the maximum allowed
nvme_xor_recovery_count	Total number of times data was recovered using XOR parity
nvme_uncorrectable_read_error_count	Total number of uncorrectable read errors that could not be recovered
nvme_soft_ecc_error_count	Total number of soft ECC errors that were corrected
nvme_end_to_end_detected_errors	Total number of end-to-end data protection errors detected
nvme_end_to_end_corrected_errors	Total number of end-to-end data protection errors that were corrected
nvme_refresh_counts	Total number of NAND page refresh operations performed
nvme_max_user_data_erase_counts	Maximum number of erase cycles performed on any user data block
nvme_min_user_data_erase_counts	Minimum number of erase cycles performed on any user data block
nvme_number_of_thermal_throttling_events	Total number of times thermal throttling was activated
nvme_pcie_correctable_error_count	Total number of PCIe correctable errors detected
nvme_incomplete_shutdowns	Total number of incomplete or unsafe shutdown events
nvme_unaligned_io	Total number of unaligned I/O operations performed
nvme_plp_start_count	Total number of times the Power Loss Protection (PLP) mechanism was activated
nvme_pcie_link_retraining_count	Total number of PCIe link retraining events
nvme_power_state_change_count	Total number of power state transitions

Gauge Metrics

Metric Name	Description
nvme_system_data_percent_used	Percentage of system data area used (0-100)
nvme_current_throttling_status	Current thermal throttling status (0=not throttled, 1=throttled)
nvme_percent_free_blocks	Percentage of free NAND blocks available (0-100)
nvme_capacitor_health	Health indicator of the power loss protection capacitor (vendor-specific scale)
nvme_security_version_number	Security version number of the device firmware
nvme_nuse_namespace_utilization	Namespace utilization as reported by the device
nvme_endurance_estimate	Estimated remaining endurance of the device as a percentage (0-100)
nvme_log_page_version	Version number of the OCP SMART log page specification
nvme_log_page_guid	GUID (Globally Unique Identifier) of the OCP SMART log page
nvme_errata_version_field	Errata version field from the OCP specification version
nvme_point_version_field	Point version field from the OCP specification version
nvme_minor_version_field	Minor version field from the OCP specification version
nvme_major_version_field	Major version field from the OCP specification version
nvme_nvme_errata_version	NVMe base specification errata version supported by the device

Visualization

Grafana dashboards are available in the resources/grafana/ directory.

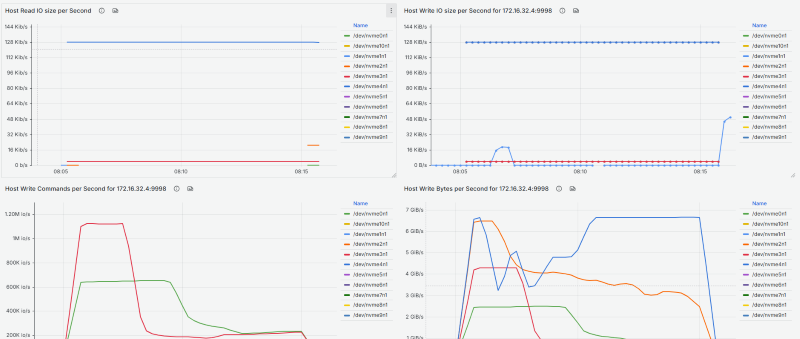

Dashboard Screenshots

OCP Metrics

Endurance Metrics

Statistics Metrics

Error Metrics

Prometheus Configuration

Scrape Configuration

Add this to your prometheus.yml:

scrape_configs:
  - job_name: 'nvme'
    static_configs:
      - targets: ['localhost:9998']

Recording and Alert Rules

Example recording and alert rules are available in resources/prom/.

Troubleshooting

Exporter starts but no metrics are collected

Symptom: The exporter starts successfully, but scrapes return no NVMe metrics, only the nvme_exporter_scrape_failures_total metric is incrementing.

Possible causes:

1. Not running as root
2. nvme-cli not installed
3. Unsupported nvme-cli version

Solution: Check the exporter logs for WARNING messages indicating the specific issue.

OCP metrics not available

Symptom: OCP metrics are not being exported.

Possible causes:

1. NVMe drive doesn't support OCP vendor-specific commands
2. OCP collector disabled with --no-collector.ocp

Solution: Check exporter logs for "OCP metrics not supported" messages. This is normal for non-OCP drives.

Permission denied errors

Symptom: Logs show permission denied when accessing /dev/nvme* devices.

Solution: Run the exporter as root or with appropriate capabilities:

sudo nvme_exporter

Or with Docker/Podman:

podman run --privileged nvme_exporter

License

See LICENSE file for details.

Contributing

Contributions are welcome! Please open an issue or submit a pull request.

Acknowledgments

• Inspired by fritchie/nvme_exporter
• Follows design patterns from prometheus/node_exporter
