dioxus-tui

Render Dioxus components into a terminal cell grid using the Blitz DOM/CSS/layout stack (dioxus-native-dom), and present the result either interactively (TUI) or as one-shot stdout output (render()).

Why

• Author UI with Dioxus and render it in terminals with a deterministic, testable pipeline.
• Keep renderer behavior capability-aware (colors, inline images) without per-terminal special-casing.
• Provide a stable Surface abstraction that can be snapshot-tested.

Design

At a high level, the renderer does:

• Build a Dioxus VirtualDom.
• Drive it with dioxus-native-dom::DioxusDocument (Blitz DOM + CSS + layout).
• Resolve layout for a specific pixel viewport (layout.rs).
• Paint into a terminal cell grid (Surface) and (optionally) collect placed images (cell_render.rs).
• Present either through an interactive terminal loop (launch*()) or as a one-shot ANSI stream (render()).

Terminal constraints shape the output:

• Cell grid only: everything is mapped to cells (no subcell positioning).
• Grapheme-aware text width (wide/combining/emoji).
• Capability-aware colors (16/256/truecolor).

Usage

There are two primary APIs:

• launch*() starts an interactive TUI session (alternate screen + input loop).
• render() renders a single frame to stdout (no alternate screen; scrollback-friendly).

Configuration is provided via Config. The most important knob is RenderingMode:

• Visual: interactive TUI renderer.
• Debug: debug snapshot mode.
• Headless: no terminal/no input thread (useful for tests).
• BlitzTerminal: render() only. If the terminal supports image protocols, render the full document as a terminal image; otherwise fall back to ANSI text output.
• BlitzGui: launch*() only. If the environment supports a GUI, launch via dioxus-native; otherwise fall back to the TUI renderer.

This crate has no default Cargo features:

• hot-reload: enables Dioxus hot reloading in debug builds.
• blitz-terminal: enables RenderingMode::BlitzTerminal (full-document offscreen rasterization via blitz-paint and emission via terminal image protocols).
• blitz-gui: enables RenderingMode::BlitzGui (GUI launch via dioxus-native).

Example (one-shot render that prefers terminal image protocols when available):

use dioxus::prelude::*;
use dioxus_tui::{Config, RenderingMode};

fn app() -> Element {
    rsx!(div { "Hello" })
}

fn main() -> anyhow::Result<()> {
    #[cfg(feature = "blitz-terminal")]
    let mode = RenderingMode::BlitzTerminal;
    #[cfg(not(feature = "blitz-terminal"))]
    let mode = RenderingMode::Visual;

    dioxus_tui::render_cfg(app, Config::new().with_rendering_mode(mode))
}

Images

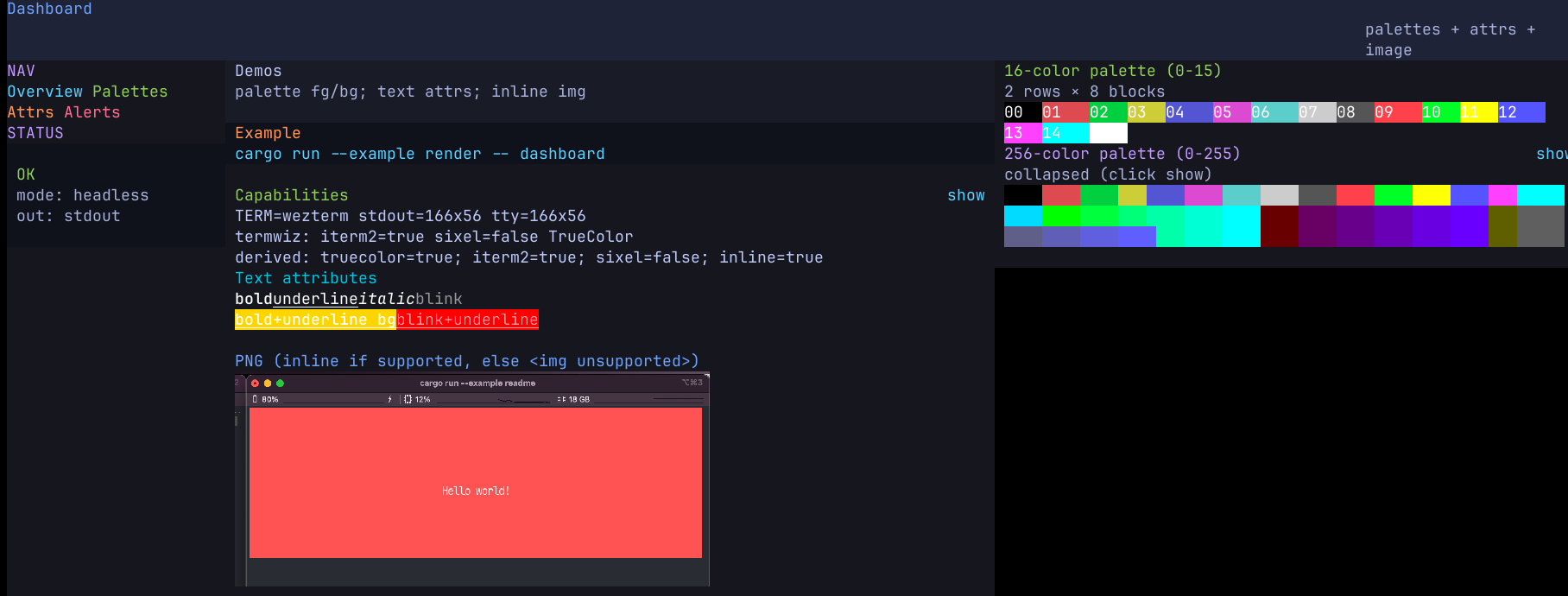

Run the dashboard example:

TERM=wezterm cargo run --example render -- --rendering-mode=visual dashboard

cd examples/btop && cargo run

Inline <img> elements

• With ImagePolicy::Inline, when the terminal supports inline image protocols, the renderer emits images using OSC 1337 (iTerm2; also supported by WezTerm) or sixel, depending on capabilities.
• If inline images are unsupported, ImageDowngrade selects the fallback (AltText, Sampling, Omit, Error).

Note: OSC 1337 emission uses preserveAspectRatio=0 so the requested cell width/height is honored (some terminals otherwise shrink one dimension).

Full-document image (RenderingMode::BlitzTerminal)

When RenderingMode::BlitzTerminal is selected in render() and the terminal supports image protocols, the renderer rasterizes the full document offscreen (Blitz paint pipeline) and emits it as a single terminal image.

Development

• Examples live under examples/.
• Tests render into Surface and compare snapshots under tests/.

For deeper design notes, see docs/Design.md.

License

Licensed under either of:

• Apache License, Version 2.0 (LICENSE-APACHE)
• MIT license (LICENSE-MIT)
