App

This camera app applies filters to the live camera feed in real time. Users can select different filters, save the captured photos, and share them easily.

Tech

#UIKit #Combine #AVFoundation #CoreImage #MVVM

Features

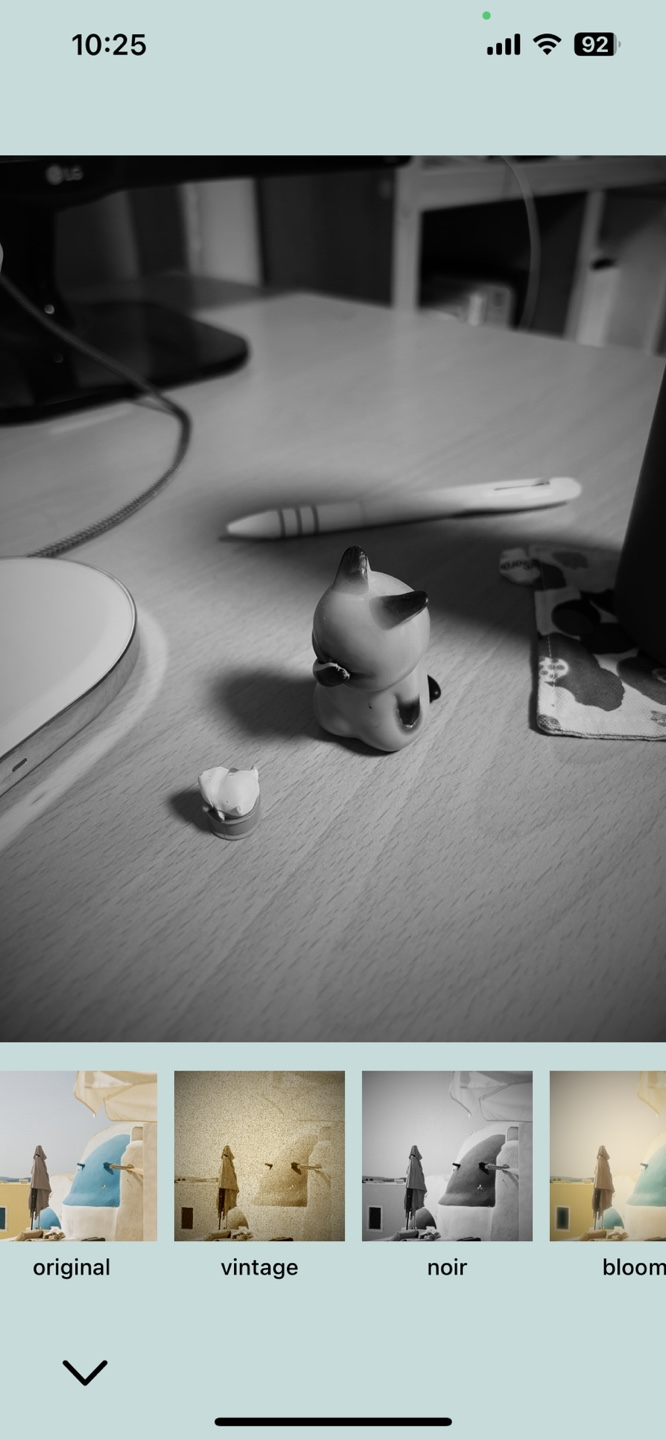

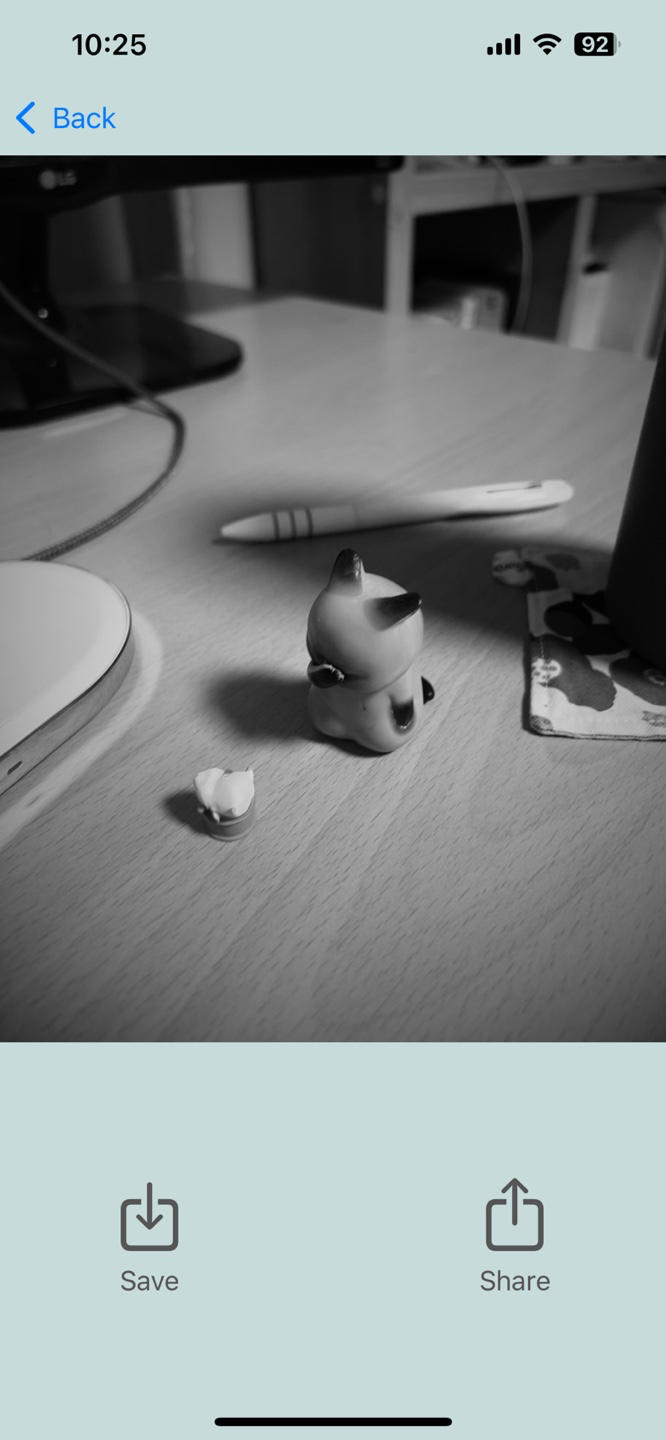

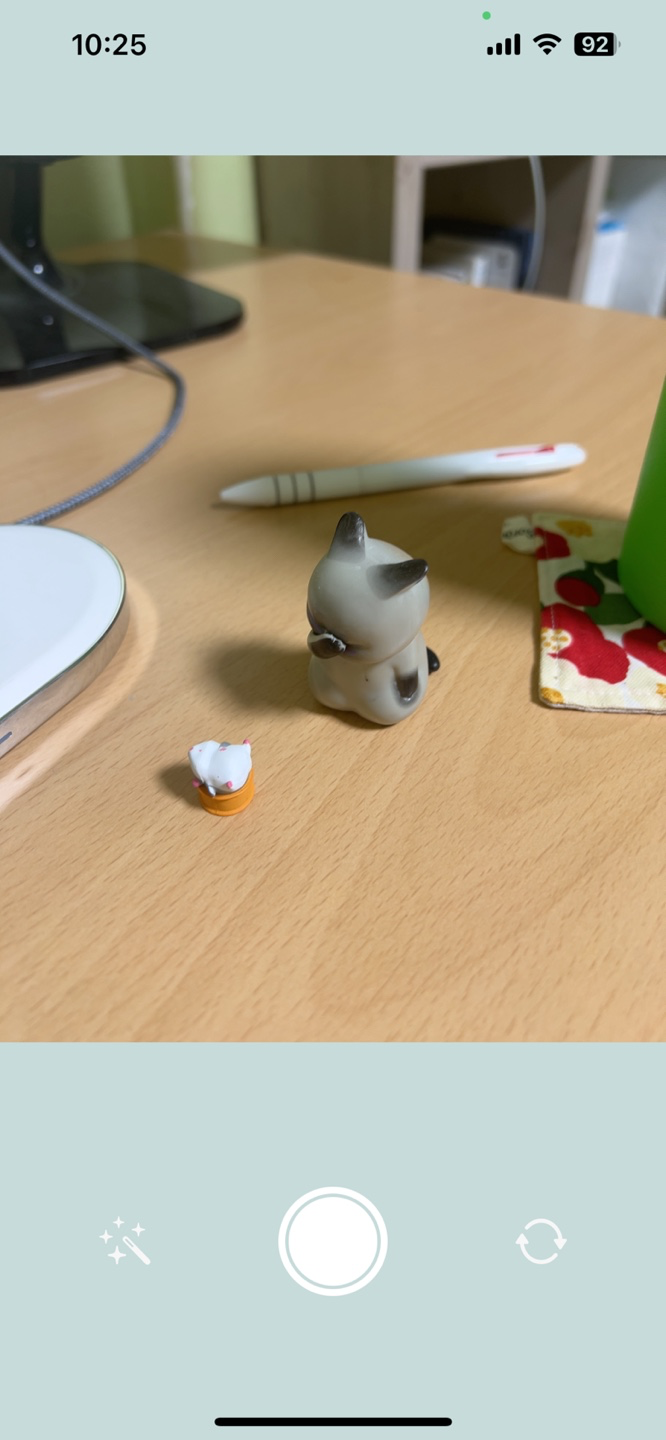

Camera	Filter	Save&Share

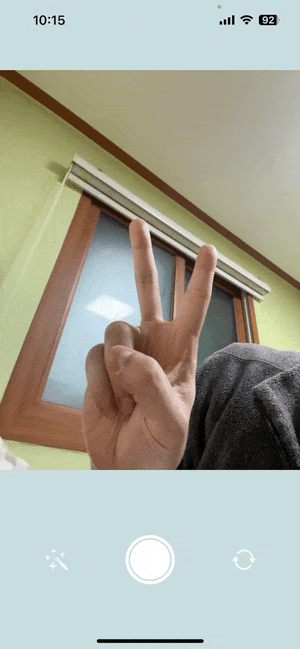

GIF

Develop

Custom Camera With AVFoundation

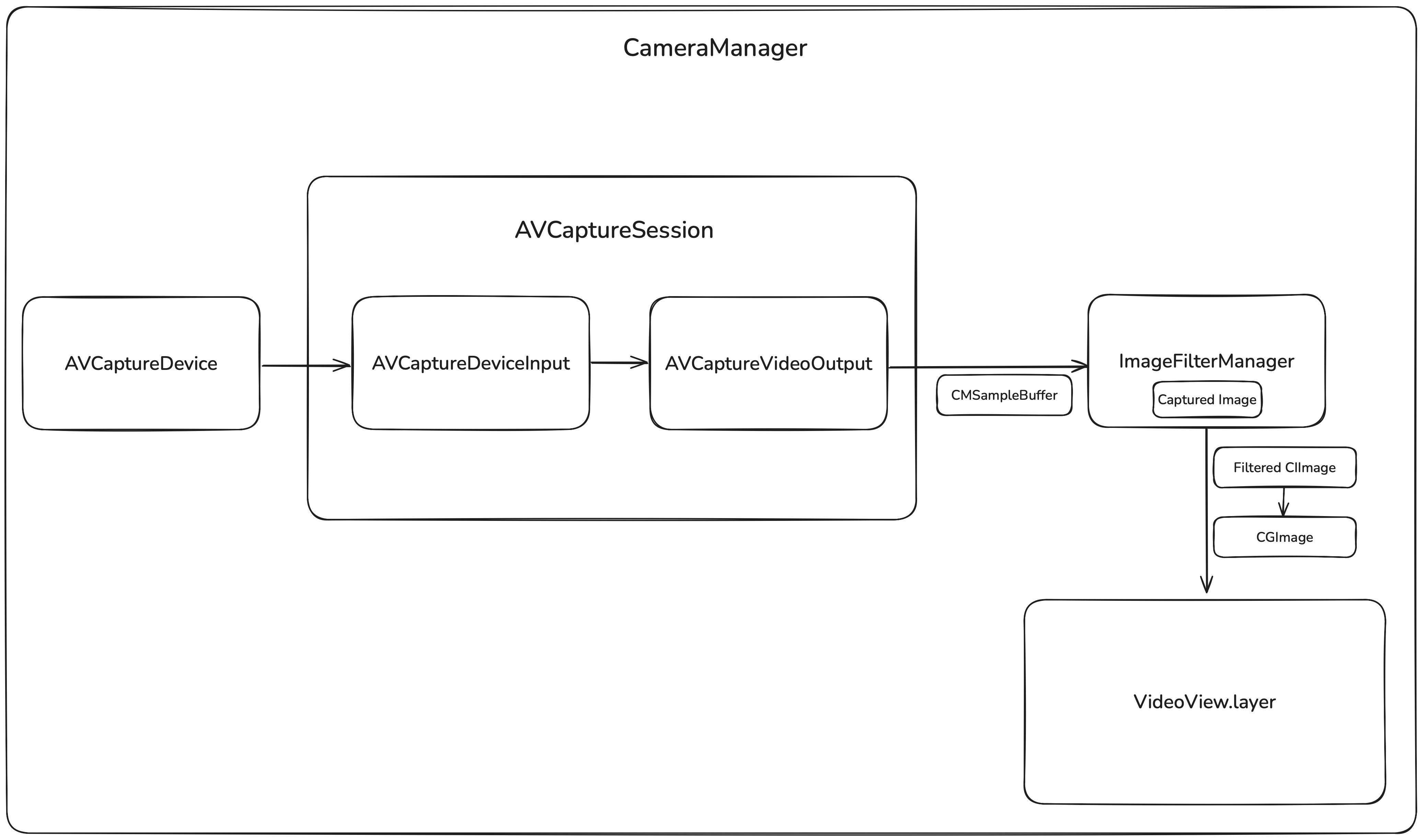

Structure of Camera Manager

1. AVCaptureDevice(Camera) sends data to AVCaptureDeviceInput
2. The Input sends video data to AVCaptureVideoOuput
3. The Output conforms to AVCaptureVideoDataOutputSampleBufferDelegate to use captureOutput method which is used for handling CMSampleBuffer from the output.
4. CameraManager uses ImageFilterManager to apply CIFilters to CMSampleBuffer
5. CameraManager renders CGImage with filtered CIImage from ImageFilterManager
6. CameraManager sets the contents of the VideoView's layer to render the layer with CGImage
7. CameraManager uses capturedImage when taking a photo(capturedImage is updated on every frame update)

FilterBuilder

• This resultBuilder makes easier to connect CIFilter chaining.

@resultBuilder
struct FilterBuilder {
    static func buildBlock(_ components: CIFilter...) -> CIImage? {
        guard let final = components.first,
              var image = final.outputImage else { return nil }

        for component in components.dropFirst() {
            component.setValue(image, forKey: kCIInputImageKey)
            if let output = component.outputImage {
                image = output
            }
        }

        return image
    }
}

Before

// Before
func applyFilters(to image: CIImage) -> CIImage? {
    // 1️⃣ Apply sepiaTone filter
    let sepiaFilter = CIFilter(name: "CISepiaTone")
    sepiaFilter?.setValue(image, forKey: kCIInputImageKey)
    sepiaFilter?.setValue(0.8, forKey: kCIInputIntensityKey)

    guard let sepiaOutput = sepiaFilter?.outputImage else { return nil }

    // 2️⃣ Add vignette effect
    let vignetteFilter = CIFilter(name: "CIVignette")
    vignetteFilter?.setValue(sepiaOutput, forKey: kCIInputImageKey)
    vignetteFilter?.setValue(1.5, forKey: kCIInputIntensityKey)
    vignetteFilter?.setValue(2.0, forKey: kCIInputRadiusKey)

    return vignetteFilter?.outputImage
}

After

// After
func applyFilters(to image: CIImage) -> CIImage? {
	@FilterBuilder
	var filteredImage: CIImage? {
		sepiaFilter(ciImage: image)
		vignetteFilter(intensity: 1.2, radius: 3.0)
	}

	return filteredImage
}

// �Filter Method Example
private func sepiaFilter(ciImage: CIImage = CIImage()) -> CIFilter {
	let filter = Filter.sepiaTone.ciFilter
	filter.setValue(ciImage, forKey: kCIInputImageKey)
	return filter
}

Issues

Failed to save photo

1. Although all permission were granted, I failed to save the photo.
2. The reason I failed to save it was that the UIImage I tried to save was not in png or jpg format.(PhotoLibrary requires jpg, png format)
3. To save an image in my photo library, image must be in png or jpg format.
4. So, I improved the photo capture function by rendering the UIImage with PNG data.

Improved code

func takePhoto(scale: CGFloat = 1.0, orientation: UIImage.Orientation = .right) -> UIImage? {
    guard let ciImage = capturedImage else { return nil }
    captureSession.stopRunning()

    guard let pngData = context.pngRepresentation(
        of: ciImage,
        format: CIFormat.RGBA8,
        colorSpace: CGColorSpaceCreateDeviceRGB()
    ) else { return nil }

    return UIImage(data: pngData)
}

AVCaptureVideoPreviewLayer

Failed to apply filters to the live camera feed

1. At the first time, I used AVCaptureVideoPreviewLayer to render video data on the screen
2. After setting captureOutput delegate method, I realize that filtering is not working on the camera
3. The reason was that the AVCaptureVideoPreviewLayer just render input data directly whatever I do on captureOuput method.
4. So I made VideoView which is subclass of UIView and render data on its layer and replace # AVCaptureVideoPreviewLayer with VideoView

final class VideoView: UIView {
	//...init...
    func renderCGImage(_ cgImage: CGImage?) {
        DispatchQueue.main.async {
            [weak self] in
            self?.layer.contents = cgImage
        }
    }
}

// CameraManager.swift
func captureOutput(_ output: AVCaptureOutput,
					didOutput sampleBuffer: CMSampleBuffer,
					from connection: AVCaptureConnection) {
	guard let pixelBuffer = CMSampleBufferGetImageBuffer(sampleBuffer)
	else { return }
	// ...
	videoView?.renderCGImage(cgImage)
}
