Device configuration for Edge 30 Ultra / Edge X30 Pro (codenamed "eqs")

The Motorola Edge 30 Ultra / Edge X30 Pro (codenamed "eqs") is a flagship smartphone from Motorola mobility announced in December 2021.

Device specifications

Basic	Spec Sheet
SoC	Qualcomm SM8475 Snapdragon 8+ Gen 1 (4 nm)
CPU	Octa-core (1x3.19 GHz Cortex-X2 & 3x2.75 GHz Cortex-A710 & 4x1.8GHz Cortex-A510)
GPU	Adreno 730
Memory	8/12 GB RAM (LPDDR5)
Shipped Android Version	12.0, My UX 3.0 (Global) / MY UI 3.0 (China)
Storage	128/256/512 GB (UFS 3.1)
Battery	Non-removable Li-Po 4610 mAh battery
Display	2400 x 1080 pixels, 6.67 inches (~403 ppi density)
Camera	200MP (Main) + 50MP (Ultra-wide) + 12MP (Telephoto) + 60MP (Selfie)

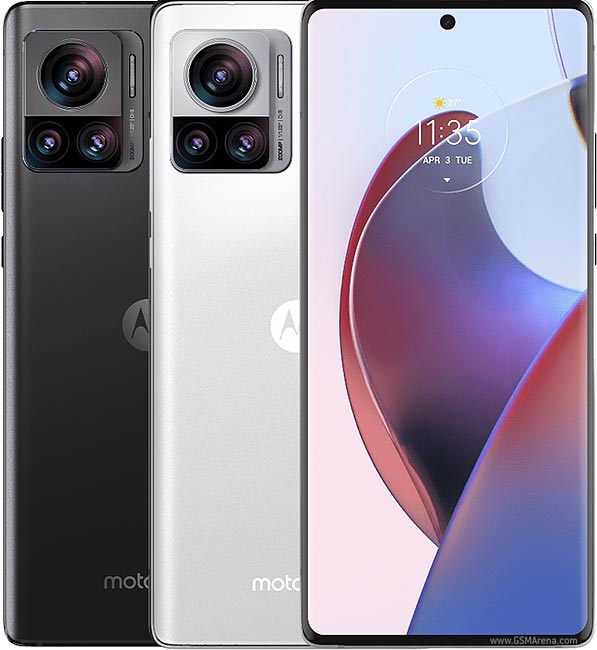

Device picture

Status

Current state of features:

• Correct screen/recovery size
• Working touch, display
• Screen goes off and on
• Backup/restore to/from internal/external storage and adb
• Poweroff
• Reboot to system, bootloader, recovery, fastboot, edl
• ADB (including sideload)
• Support EROFS/F2FS/EXT4/exFAT/FAT32/NTFS
• Decrypt /data
• Flashing zip/images
• MTP export
• All important partitions listed in wipe/mount/backup lists
• Input devices via USB-OTG
• USB mass storage export
• Correct date
• Battery level
• Set brightness
• Vibrate and set vibration
• Screenshot
• Advanced features

Optimization roadmap (Edge 30 Ultra - 12 GB / 256 GB)

This tree is already in good shape for daily recovery use. If your goal is to improve reliability, speed and maintainability, prioritize the items below.

1) Security hardening (highest priority)

• Move from permissive SELinux to enforcing during normal operation and keep permissive only as a debug fallback.
• Replace test AVB keys with dedicated release keys before official/public builds.
• Keep anti-rollback bypass only for local testing builds; avoid it in release artifacts.

2) Decryption and data stability

• Validate FBE/FDE flow across cold boot, reboot to recovery and OTA sideload paths.
• Test decryption with PIN/password/pattern and with multiple user profiles.
• Add a simple regression checklist after each vendor blob update.

3) Boot and recovery responsiveness

• Benchmark boot-to-UI time before/after library/module updates.
• Keep only required recovery binaries and shared libraries to reduce ramdisk pressure.
• Review kernel module loading order to ensure only essential modules initialize in recovery.

4) A/B and dynamic partition robustness

• Recheck complete AB_OTA_PARTITIONS against stock payload metadata from the same firmware branch.
• Validate fastbootd resize/flash paths for super, vendor_dlkm and product.
• Confirm rollback and slot-switch behavior after failed sideload.

5) Storage path optimization (UFS 3.1)

• Validate fstab mount flags for userdata and metadata consistency with stock.
• Run backup/restore stress tests with large archives (>50 GB) to detect throttling or mount edge-cases.
• Validate NTFS/exFAT write behavior for external media workflows.

6) Maintenance and long-term quality

• Pin tree changes to specific stock firmware builds and document tested base version.
• Track updated proprietary blobs by category (crypto, boot, display, vibrator) to simplify bisects.
• Keep a short release checklist (decrypt, MTP, sideload, backup/restore, reboot targets).

Building

export ALLOW_MISSING_DEPENDENCIES=true
source build/envsetup.sh
lunch twrp_eqs-eng
mka recoveryimage -j$(nproc --all)

Copyright (C) 2023 Team Win Recovery Project
