correct negative damping in BEM results by rgcoe · Pull Request #134 · SNL-WaterPower/WecOptTool-MATLAB

rgcoe · 2020-05-01T17:24:09Z

Description

Nemoh is well known to have issues with irregular frequencies (see discussion in #35). This can create cases where there is negative radiation damping at certain frequencies (which is not physical for diagonal elements). If the sum of the radiation damping and friction are less than zero, this can create stability issues and is believed to be the source of the convergence problems noted in #4.

This PR adds a function (checkNemoh) to look for negative values in the diagonal radiation damping terms in the hydro structure produced by getNemoh. checkNemoh sets values less than 0 to 0 and returns a tracking of where negative values were found.

Before
----------
    0.0523    2.7783   15.8544   23.5220   20.8416   16.0492   11.6885    8.3137    1.3735    3.6513    2.6734
    0.0523    2.7783   15.8543   23.5220   20.8416   16.0492   11.6885    8.3137    1.3735    3.6513    2.6734
   58.1025  103.7792   82.5054   46.8996   21.5337    9.7066    0.7951    0.5628    0.0681   -0.0089   -0.0419
    0.8039   32.5602  121.1623  102.2461   45.1301   13.4254    1.9090    1.3394  -14.7975    0.6399    0.5099
    0.8039   32.5602  121.1622  102.2458   45.1301   13.4250    1.9093    1.3394  -14.7976    0.6399    0.5099
   -0.0000   -0.0000    0.0001   -0.0005    0.0009   -0.0006   -0.0001    0.0002   -0.0002    0.0000    0.0003
    0.0264   -0.0025    0.0000   -0.0000   -0.0000   -0.0000    0.0000    0.0000   -0.0000   -0.0000   -0.0000
    0.0264   -0.0025    0.0000   -0.0000   -0.0000   -0.0000    0.0000    0.0000   -0.0000   -0.0000   -0.0000
    2.0205    0.4124    0.0026   -0.0013   -0.0017   -0.0053   -0.0014   -0.0001    0.0000   -0.0000   -0.0000
   51.0431   -3.9977    0.0049   -0.0001   -0.0001   -0.0002    0.0000    0.0001   -0.0005   -0.0000   -0.0000
   51.0555   -3.9983    0.0049   -0.0001   -0.0001   -0.0002    0.0000    0.0001   -0.0005   -0.0000   -0.0000
    0.0000   -0.0000    0.0000   -0.0000   -0.0000   -0.0000   -0.0000   -0.0000   -0.0000    0.0000    0.0000


After
---------
    0.0523    2.7783   15.8544   23.5220   20.8416   16.0492   11.6885    8.3137    1.3735    3.6513    2.6734
    0.0523    2.7783   15.8543   23.5220   20.8416   16.0492   11.6885    8.3137    1.3735    3.6513    2.6734
   58.1025  103.7792   82.5054   46.8996   21.5337    9.7066    0.7951    0.5628    0.0681         0         0
    0.8039   32.5602  121.1623  102.2461   45.1301   13.4254    1.9090    1.3394         0    0.6399    0.5099
    0.8039   32.5602  121.1622  102.2458   45.1301   13.4250    1.9093    1.3394         0    0.6399    0.5099
         0         0    0.0001         0    0.0009         0         0    0.0002         0    0.0000    0.0003
    0.0264         0    0.0000         0         0         0    0.0000    0.0000         0         0         0
    0.0264         0    0.0000         0         0         0    0.0000    0.0000         0         0         0
    2.0205    0.4124    0.0026         0         0         0         0         0    0.0000         0         0
   51.0431         0    0.0049         0         0         0    0.0000    0.0001         0         0         0
   51.0555         0    0.0049         0         0         0    0.0000    0.0001         0         0         0
    0.0000         0    0.0000         0         0         0         0         0         0    0.0000    0.0000

Fixes #4

test_results.pdf

Checklist:

Added the results of running the test suite (in pdf form)
All new files contain the GPL header
If example.m has been modified, the content / line numbers in
docs\user\example.rst are still valid or have been fixed

currently checks for negative vals in diagonal FRFs

may need to further consider whether/how to pass a warning up to higher level functions and/or set debug/verbosity level across WecOptTool

toolbox/+WecOptLib/+nemoh/checkNemoh.m

rgcoe · 2020-05-01T17:34:44Z

toolbox/+WecOptLib/+tests/+unit/checkNemohTest.m

+        'flagged for negative values'])
+end
+
+function testNegativeRadDampingKnownBad(testCase)


One thing that I have not yet rigorously checked is whether this PR resolves the convergence issues originally noted in #4. My own naivety is the limiting factor. We need to write a unit test case (or some snippet that we just call to test this PR ad-hoc) that does the following:

Tries to find the power for known nonconvergent cases mentioned in noncoverged PS cases? #4 (RM3_getPow(S, 'PS', 'parametric', [14.76, 15.71, 2.58, 37.27]))

Check that the PS problem does NOT converge when checkNemoh is not used (note that the application of checkNemoh is currently hardcoded in getNemoh)

Check that the PS problem does converged when checkNemoh is used.

@H0R5E - I would do this, but I don't quite know how yet with the toolbox/OOP structure, I can certainly finish it through if you'll get me started or point to a relevant example.

I think the best way to deal with this is to break up getNemoh, so that the call to WEC_Sim.Read_NEMOH is in a different function (getHydro?), and remove the call to checkNemoh in there also. Then the assumption is that getNemoh (or whatever is a sensible name for the rest of the function) will take a checked (or not) WEC-SIM hydro object. Then you can test with or without checking.

I can do this for you, if you want, but I don't have push access to your fork and I don't think you clicked the allow edits from maintainers box, so you would need to grant me rights on your fork.

H0R5E · 2020-05-05T13:19:28Z

I'm going to switch this to a draft while we're updating it.

This is done through the parametric geometry option, which takes an option called fixNegative, that defaults to true.

…to checkBemIrregFreqs # Conflicts: # toolbox/+WecOptLib/+nemoh/getNemoh.m

Doesn't seem to work.

H0R5E · 2020-05-05T15:23:16Z

OK so this does not appear to fix #4. I added two tests to +WecOptLib\+tests\+unit\RM3DeviceModelTest.m called testPSNoConverge and testPSConverge where one uses the damping fix and the other doesn't and testPSConverge errors. Interestingly the first test in that file also fails.

Back to you!

H0R5E · 2020-05-05T15:26:33Z

Hang on, that's probably my fault! I didn't test the exit flag properly. One sec.

H0R5E · 2020-05-05T15:30:04Z

OK, so after I check the value of the exitflag (doh), it seems like your expected failure case doesn't actually fail. Have I done something else wrong? Maybe it's sensitive to S?

rgcoe · 2020-05-05T15:43:48Z

OK, so after I check the value of the exitflag (doh), it seems like your expected failure case doesn't actually fail. Have I done something else wrong? Maybe it's sensitive to S?

Yes, a sensitivity to S (specifically to the frequencies at which we run NEMOH) is definitely likely. The frequencies that would be evaluated in a case has been updated by 1e2866a (#129) and probably a few other times since that specific problem case was noted in #4...

My thinking is we should complete this PR, but keep an eye on this (your addition of the error check on the exitflag with 65164f6 should allow us to do so).

H0R5E · 2020-05-05T15:53:24Z

Seems OK to me. Comment out the failing test so we can reuse later if needed?

our test case parameters for this do not currently create a non- convergent solution, so we must wait to find a set of parameters that result in such an error

rgcoe · 2020-05-05T16:14:22Z

toolbox/+WecOptLib/+tests/+unit/RM3DeviceModelTest.m

+verifyError(testCase, test, "WecOptTool:getPSPhasePower:NoConvergence");
+end
+
+function testPSConverge(testCase)


Should we be somehow performing an operation on testCase in testPSConverge (somehow explicitly pass to the testCase whether an error has occurred)?

Well, the test passes if the case doesn't error, so you don't strictly have to check something. Checking its numerical value (again what it is producing now) would probably be useful so that we will see if it changes for some reason. I was just lazy putting it in so I could show you what was happening.

You might consider replacing the case in RM3DeviceModelParametricCCTest with this one, so that we are not doing more NEMOH runs.

My little brain cannot quite digest this... I guess my main hang up is that I understand how to reuse data within a single file (e.g., RM3DeviceModelParametricCCTest.m), but not how to share between files.

I also feel like the +tests directory could use some clean up. I don't understand where I should look between all of the files and how tests should be broken up between files. Is there a suggested structure for this?

You can't share between files, I don't think, so anything you want to share should be in a single file.

The +unit package is getting a bit unruly for sure. We could add another package level below (it won't upset the testing system) for when there are several tests for one source file. Perhaps something else for our coding policy.

I'll fix these things, so you can see what I mean.

DeviceModel tests into new subpackage.

H0R5E · 2020-05-06T15:13:06Z

So, I pushed that update. It's interesting because on the second run of the PS controller with the stored NEMOH result the output is about 3% less (I added a relative tolerance of 5% to make it pass). It's likely this is a bug somewhere.

H0R5E · 2020-05-06T19:11:36Z

Further to that this number it's producing: 6.556208812689474e+09 is too big right? So, I'm not sure this is working, but we are not capturing why it's not working.

rgcoe · 2020-05-06T19:15:55Z

Further to that this number it's producing: 6.556208812689474e+09 is too big right? So, I'm not sure this is working, but we are not capturing why it's not working.

this sounds like an unconverged case... can you point me to a specific test case and/or MWE?

H0R5E · 2020-05-06T19:21:53Z

It's the same test as before, but it's now in toolbox/+WecOptLib/+tests/+unit/+models/RM3DeviceModelParametricPSTest.m.

It's being run in the getPower method and then the value of that run is being checked in test_runParametric. I just copied the value it was producing to expSol, but I didn't really think about it.

Note, this test is being run with the negative damping fix and it's not throwing an error in toolbox/+WecOptLib/+models/+RM3/getPSPhasePower.m (line 66) so there must be something we are not checking.

H0R5E · 2020-05-13T12:05:34Z

Having played around with the optimiser for a bit, I think it's a red herring. I think it's worth looking at the start of the chain and seeing if the NEMOH results are sound. @ryancoe do you have any advice on how best to check the quality of the NEMOH model?

Use plotmesh in RM3/optimization.m example. Fix other descriptions of the mesh output throughout.

H0R5E · 2020-09-14T13:59:34Z

OK, here is a list of the pertinent changes in this PR:

Added the WecOptTool.Hydrodynamics class to take standardised output of solvers and do stuff. Currently it fixes any negative damping found on the diagonal of the B matrix.
Added a warning to the RM3 model if the maximum absolute combined damping (i.e. B39) exceeds the maximum absolute damping of the individual bodies.
Added plotMesh which can plot the mesh structures generated by the AxiMesh class. An example of its usage has been added to the RM3/optimization.m example.

The only query I have from this (which is unrelated to the damping issue) is the relationship between wave amplitude and spectral density, which is used in a few places in the code. Is there some reference for this somewhere? I was wondering if it is missing a factor of pi?

H0R5E · 2020-09-14T14:00:48Z

@ryancoe can you review this, please?

H0R5E · 2020-09-14T14:03:34Z

examples/WaveBot/simulateDevice.m

    % Calculate wave amplitude
-    waveAmp = SS.getAmpSpectrum(w, interpMethod);
+    % TODO: Why times root(2) here?
+    waveAmpSS = sqrt(2 * SS.dw * SS.S);
+    waveAmp = interp1(SS.w, waveAmpSS, w, interpMethod, 'extrap');



@ryancoe, I couldn't figure out this relationship between wave amplitude and spectral density. What is the root(2) doing in there and shouldn't there be a factor of pi, also?

I believe it looks correct to me. You would need a 2pi if the frequency were in Hz.

https://ocw.mit.edu/courses/mechanical-engineering/2-019-design-of-ocean-systems-spring-2011/lecture-notes/MIT2_019S11_OWE.pdf

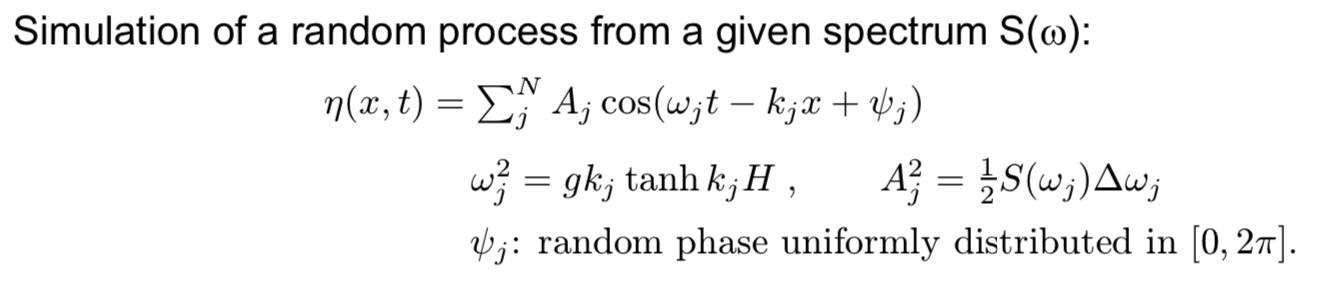

Doesn't that indicate that A is sqrt(2 * S * dw) / 2? Unless amplitude is supposed to say wave height?

Hmm, I think that half is incorrect in those note you posted. If you look at https://www.usna.edu/NAOE/_files/documents/Courses/EN455/EN455_Chapter3.pdf page 40, then it has the formula used in the code, and the derivation there makes sense to me.

Yes, agreed. I was going to send you a photo from a textbook, but then decided to try to respect copyright rules and find something publicly available. Even MIT is wrong sometimes :)

H0R5E · 2020-09-14T14:04:36Z

Test results:

test_results.pdf

interpolation to the user.

rgcoe · 2020-09-15T18:56:23Z

Tests all passing on macOS: test_results.pdf

toolbox/+WecOptTool/Hydrodynamics.m

rgcoe · 2020-09-15T19:24:13Z

Tests still passing after my attempts to break it: test_results.pdf

H0R5E · 2020-09-16T08:27:45Z

I think we need to put a little more effort into preparing the commit messages for the merged pull requests. I don't think you would have a clue what was added from the default commit message that was generated from this one.

rgcoe · 2020-09-16T16:48:10Z

Agreed, I only recently understood how this works with squash and merge

H0R5E · 2020-09-16T17:19:20Z

Added rule 10 to the DevOps Rule Book

Ryan Coe added 2 commits May 1, 2020 11:08

add function to check nemoh results

c677d1b

currently checks for negative vals in diagonal FRFs

don't issue warnings

3864e3f

may need to further consider whether/how to pass a warning up to higher level functions and/or set debug/verbosity level across WecOptTool

rgcoe added bug Something isn't working enhancement New feature or request labels May 1, 2020

rgcoe commented May 1, 2020

View reviewed changes

toolbox/+WecOptLib/+nemoh/checkNemoh.m Outdated Show resolved Hide resolved

rgcoe commented May 1, 2020

View reviewed changes

rgcoe requested a review from H0R5E May 1, 2020 17:35

legend for debugging plot

5a80b3d

rgcoe mentioned this pull request May 4, 2020

set global verbosity #136

Open

H0R5E marked this pull request as draft May 5, 2020 13:19

H0R5E and others added 4 commits May 5, 2020 15:24

Allow fixing of negative damping values to be switched off

4385372

This is done through the parametric geometry option, which takes an option called fixNegative, that defaults to true.

add some inline comments to explain workflow

287cfec

Merge branch 'checkBemIrregFreqs' of github.com:ryancoe/WecOptTool in…

845f4ed

…to checkBemIrregFreqs # Conflicts: # toolbox/+WecOptLib/+nemoh/getNemoh.m

Test for convergence if negative damping is fixed.

65164f6

Doesn't seem to work.

Check the value of the exitflag

fe74604

Ryan Coe added 2 commits May 5, 2020 10:06

indent all functions

bf17c9b

comment out testPSNoConverge

9e5eaaf

our test case parameters for this do not currently create a non- convergent solution, so we must wait to find a set of parameters that result in such an error

rgcoe commented May 5, 2020

View reviewed changes

Update parametric test to PS case that might fail and organize

657f0d8

DeviceModel tests into new subpackage.

H0R5E added 6 commits September 14, 2020 14:39

Add description and test to plotMesh.

af2d5e1

Use plotmesh in RM3/optimization.m example. Fix other descriptions of the mesh output throughout.

Remove incorrect docstring in WaveBot/Performance class

2d3fece

Fix reference to removed types namespace and function

c8b8254

Add copyright boilerplate

486285c

Merge remote-tracking branch 'public/master' into checkBemIrregFreqs

407d36d

Bug fix

99dd794

H0R5E marked this pull request as ready for review September 14, 2020 13:52

H0R5E removed their request for review September 14, 2020 14:00

H0R5E reviewed Sep 14, 2020

View reviewed changes

H0R5E added 2 commits September 14, 2020 15:56

Fix Hydrodynamics docstring and add to API docs

a1271dd

Minor docstring edit

4a67ed6

H0R5E mentioned this pull request Sep 14, 2020

docs for creating new models #168

Merged

1 task

H0R5E added 4 commits September 15, 2020 13:28

Update example docs

3cc3698

Remove TODOs

7892f2a

Reintroduce getAmplitudeSpectrum method into SeaState, but leave

0c79d26

interpolation to the user.

Add getAmplitudeSpectrum to class docstring and give return value

481c7bf

some minor typos

8351504

rgcoe commented Sep 15, 2020

View reviewed changes

toolbox/+WecOptTool/Hydrodynamics.m Outdated Show resolved Hide resolved

Ryan Coe added 2 commits September 15, 2020 13:22

use complex array for excitation

f641c12

explicitly set variable with load statement

f995784

rgcoe merged commit 00c6603 into SNL-WaterPower:master Sep 15, 2020

rgcoe deleted the checkBemIrregFreqs branch September 25, 2020 16:36

Conversation

rgcoe commented May 1, 2020

Description

Checklist:

Uh oh!

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

H0R5E commented May 5, 2020

Uh oh!

H0R5E commented May 5, 2020

Uh oh!

H0R5E commented May 5, 2020

Uh oh!

H0R5E commented May 5, 2020

Uh oh!

rgcoe commented May 5, 2020

Uh oh!

H0R5E commented May 5, 2020

Uh oh!

rgcoe May 5, 2020 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

H0R5E commented May 6, 2020

Uh oh!

H0R5E commented May 6, 2020

Uh oh!

rgcoe commented May 6, 2020

Uh oh!

H0R5E commented May 6, 2020

Uh oh!

H0R5E commented May 13, 2020

Uh oh!

H0R5E commented Sep 14, 2020

Uh oh!

H0R5E commented Sep 14, 2020

Uh oh!

H0R5E Sep 14, 2020 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

H0R5E Sep 14, 2020 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

H0R5E commented Sep 14, 2020

Uh oh!

rgcoe commented Sep 15, 2020

Uh oh!

Uh oh!

rgcoe commented Sep 15, 2020

Uh oh!

H0R5E commented Sep 16, 2020

Uh oh!

rgcoe commented Sep 16, 2020

Uh oh!

H0R5E commented Sep 16, 2020

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

rgcoe May 5, 2020 •

edited

Loading

H0R5E Sep 14, 2020 •

edited

Loading

H0R5E Sep 14, 2020 •

edited

Loading
