服务器有两种基本方案
- 使用Socket搭建原始网络传输的客户端服务端，传统的BIO形式，阻塞IO，性能差功能单一。
- 使用Netty搭建作为网络传输，非阻塞的NIO形式，简化了TCP/UDP等网络编程，使用方便。
Socket不解释原理。
解释一下Netty的原理。
可以看博客：彻底理解Netty，这一篇文章就够了
本项目如何搭建Netty服务器：
NettyRpcClient 为主体，Handler为处理服务器返回消息并且配置心跳机制
ChannelProvider用来做一个频道的复用，存储于一个map结构中。
@Slf4j
public class ChannelProvider {
private final Map<String, Channel> channelMap;
public ChannelProvider() {
channelMap = new ConcurrentHashMap<>();
}
public Channel get(InetSocketAddress inetSocketAddress) {
// 把ip地址转换成字符串从map中取，取到的话就判断频道是否还在连接中，无法使用就从map中删除。
}
public void set(InetSocketAddress inetSocketAddress, Channel channel) {
// 新建的频道放入map中
}
public void remove(InetSocketAddress inetSocketAddress) {
// 把此频道从map中删除
}
}Reactor 线程组用来建立连接Socket，读写网络数据，处理业务功能。
Netty 的 EventGroup 自动封装好了多线程Reactor模型

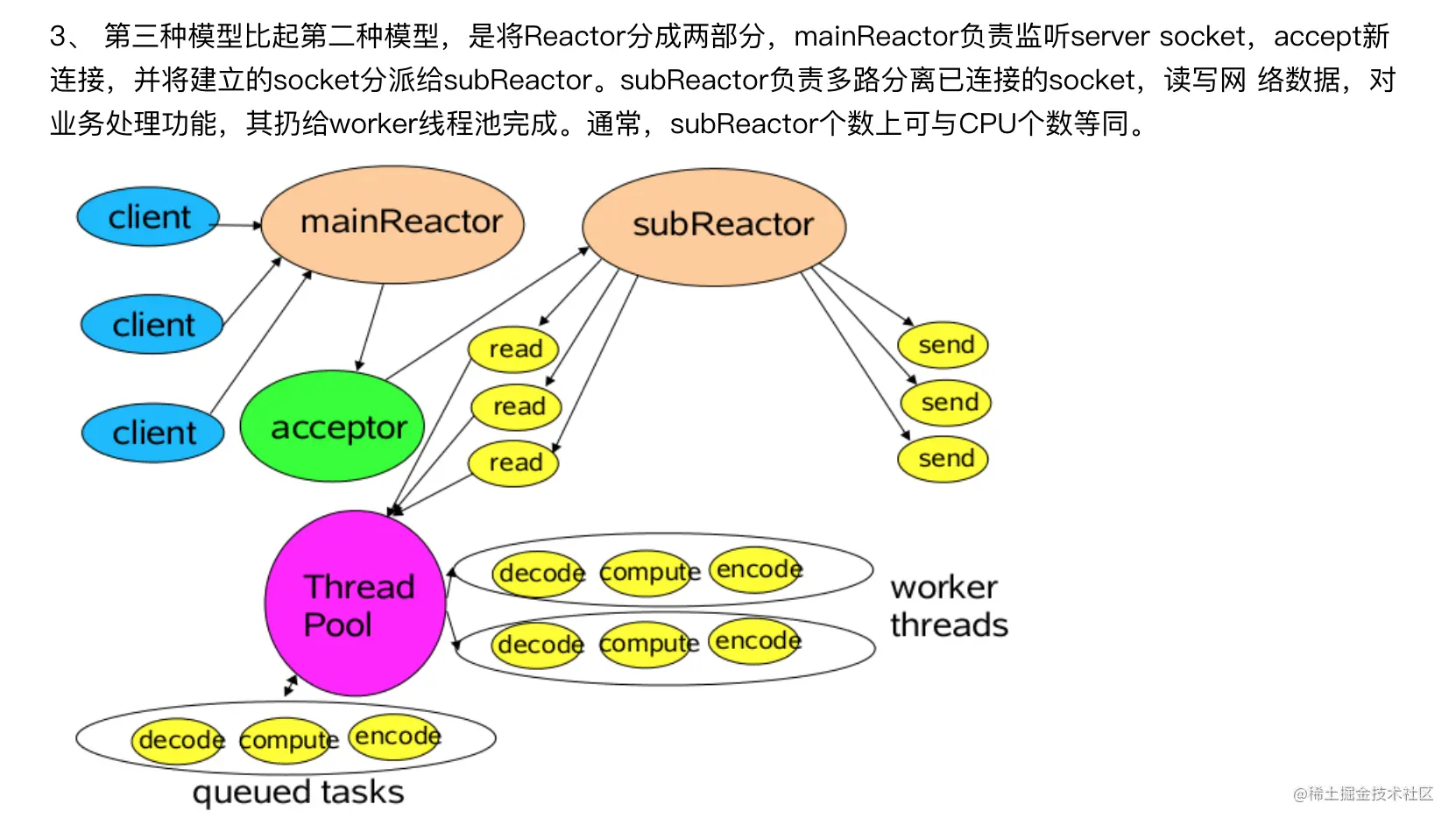

==Reactor 主从模型==：
接下来就是doconnect，getchannel，sendRequest
@SneakyThrows
public Channel doConnect(InetSocketAddress inetSocketAddress) {
// 建立连接 返回频道
}
public Channel getChannel(InetSocketAddress inetSocketAddress) {
// 从map中取得Channel，否则新建 doConnect(inetSocketAddress);
}
// 发送请求
public Object sendRpcRequest(RpcRequest rpcRequest) {
// build return value
CompletableFuture<RpcResponse<Object>> resultFuture = new CompletableFuture<>();
// get server address 从注册中心获取ip地址
InetSocketAddress inetSocketAddress = serviceDiscovery.lookupService(rpcRequest);
// get server address related channel
Channel channel = getChannel(inetSocketAddress);
if (channel.isActive()) {
// put unprocessed request
unprocessedRequests.put(rpcRequest.getRequestId(), resultFuture);
RpcMessage rpcMessage = RpcMessage.builder().data(rpcRequest)
.codec(SerializationTypeEnum.KYRO.getCode())
.compress(CompressTypeEnum.GZIP.getCode())
.messageType(RpcConstants.REQUEST_TYPE).build();
// 向频道中发送消息
channel.writeAndFlush(rpcMessage).addListener((ChannelFutureListener) future -> {
if (future.isSuccess()) {
log.info("client send message: [{}]", rpcMessage);
} else {
future.channel().close();
resultFuture.completeExceptionally(future.cause());
log.error("Send failed:", future.cause());
}
});
} else {
throw new IllegalStateException();
}
return resultFuture;
}
实现了一个线程工厂组任务来为Reactor模型提供线程。
DefaultEventExecutorGroup serviceHandlerGroup = new DefaultEventExecutorGroup(
RuntimeUtil.cpus() * 2,
ThreadPoolFactoryUtil.createThreadFactory("service-handler-group", false)
);包类如下：
主要功能为服务发现和服务注册，使用Curator来搭建连接zookeeper。
public final class CuratorUtils {
private static final int BASE_SLEEP_TIME = 1000;
private static final int MAX_RETRIES = 3;
public static final String ZK_REGISTER_ROOT_PATH = "/my-rpc";// 根目录
// 存储服务地址
private static final Map<String, List<String>> SERVICE_ADDRESS_MAP = new ConcurrentHashMap<>();
private static final Set<String> REGISTERED_PATH_SET = ConcurrentHashMap.newKeySet();
private static CuratorFramework zkClient;
private static final String DEFAULT_ZOOKEEPER_ADDRESS = "127.0.0.1:2181";
public static void createPersistentNode(CuratorFramework zkClient, String path) {
/**
* 创建永久节点 先检查是否存在，存在则复用返回，不存在则创建
*/
}
public static List<String> getChildrenNodes(CuratorFramework zkClient, String rpcServiceName) {
/**
* 获取子节点列表
* @param rpcServiceName rpc service name eg:github.javaguide.HelloServicetest2version1
* @return All child nodes under the specified node
*/
}
public static void clearRegistry(CuratorFramework zkClient, InetSocketAddress inetSocketAddress) {
/**
* Empty the registry of data
* 删除所有节点
*/
}
public static CuratorFramework getZkClient() {
// check if user has set zk address
// if zkClient has been started, return directly
// Retry strategy. Retry 3 times, and will increase the sleep time between retries.
// the server to connect to (can be a server list)
zkClient.start();
try {
// wait 30s until connect to the zookeeper
if (!zkClient.blockUntilConnected(30, TimeUnit.SECONDS)) {
throw new RuntimeException("Time out waiting to connect to ZK!");
}
} catch (InterruptedException e) {
e.printStackTrace();
}
return zkClient;
}
private static void registerWatcher(String rpcServiceName, CuratorFramework zkClient) throws Exception {
/**
* 注册监听通知子节点
*
* @param rpcServiceName rpc service name eg:github.javaguide.HelloServicetest2version
*/
}public class ZkServiceRegistryImpl implements ServiceRegistry {
@Override
public void registerService(String rpcServiceName, InetSocketAddress inetSocketAddress) {
String servicePath = CuratorUtils.ZK_REGISTER_ROOT_PATH + "/" + rpcServiceName + inetSocketAddress.toString();
CuratorFramework zkClient = CuratorUtils.getZkClient();
// 创建永久节点
CuratorUtils.createPersistentNode(zkClient, servicePath);
}
}public class ZkServiceProviderImpl implements ServiceProvider {
/**
* key: rpc service name(interface name + version + group)
* value: service object
*/
private final Map<String, Object> serviceMap;
private final Set<String> registeredService;
private final ServiceRegistry serviceRegistry;
// 得到连接zookeeper的客户端
public ZkServiceProviderImpl() {
serviceMap = new ConcurrentHashMap<>();
registeredService = ConcurrentHashMap.newKeySet();
serviceRegistry = ExtensionLoader.getExtensionLoader(ServiceRegistry.class).getExtension("zk");
}
@Override
public void addService(RpcServiceConfig rpcServiceConfig) {
/*
* 把服务放入map中
*/
}
@Override
public Object getService(String rpcServiceName) {
// 从map中获取服务
}
// 注册上传服务 注册到zookeeper中
@Override
public void publishService(RpcServiceConfig rpcServiceConfig) {
try {
String host = InetAddress.getLocalHost().getHostAddress();
this.addService(rpcServiceConfig);
serviceRegistry.registerService(rpcServiceConfig.getRpcServiceName(), new InetSocketAddress(host, NettyRpcServer.PORT));
} catch (UnknownHostException e) {
log.error("occur exception when getHostAddress", e);
}
}
}public class ZkServiceDiscoveryImpl implements ServiceDiscovery {
private final LoadBalance loadBalance;
public ZkServiceDiscoveryImpl() {
// 获取负载均衡的算法
this.loadBalance = ExtensionLoader.getExtensionLoader(LoadBalance.class).getExtension("loadBalance");
}
@Override
public InetSocketAddress lookupService(RpcRequest rpcRequest) {
String rpcServiceName = rpcRequest.getRpcServiceName();
CuratorFramework zkClient = CuratorUtils.getZkClient();
List<String> serviceUrlList = CuratorUtils.getChildrenNodes(zkClient, rpcServiceName);
if (CollectionUtil.isEmpty(serviceUrlList)) {
throw new RpcException(RpcErrorMessageEnum.SERVICE_CAN_NOT_BE_FOUND, rpcServiceName);
}
// load balancing
String targetServiceUrl = loadBalance.selectServiceAddress(serviceUrlList, rpcRequest);
log.info("Successfully found the service address:[{}]", targetServiceUrl);
String[] socketAddressArray = targetServiceUrl.split(":");
String host = socketAddressArray[0];
int port = Integer.parseInt(socketAddressArray[1]);
return new InetSocketAddress(host, port);
}
}public interface Serializer {
/**
* 序列化
*
* @param obj 要序列化的对象
* @return 字节数组
*/
byte[] serialize(Object obj);
/**
* 反序列化
*
* @param bytes 序列化后的字节数组
* @param clazz 目标类
* @param <T> 类的类型。举个例子, {@code String.class} 的类型是 {@code Class<String>}.
* 如果不知道类的类型的话，使用 {@code Class<?>}
* @return 反序列化的对象
*/
<T> T deserialize(byte[] bytes, Class<T> clazz);
}public class KryoSerializer implements Serializer {
/**
* 线程不安全，所以需要使用ThreadLocal来储存传输实体。
* Because Kryo is not thread safe. So, use ThreadLocal to store Kryo objects
*/
private final ThreadLocal<Kryo> kryoThreadLocal = ThreadLocal.withInitial(() -> {
Kryo kryo = new Kryo();
kryo.register(RpcResponse.class);
kryo.register(RpcRequest.class);
return kryo;
});
@Override
public byte[] serialize(Object obj) {
try (ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
Output output = new Output(byteArrayOutputStream)) {
Kryo kryo = kryoThreadLocal.get();
// Object->byte:将对象序列化为byte数组
kryo.writeObject(output, obj);
kryoThreadLocal.remove();
return output.toBytes();
} catch (Exception e) {
throw new SerializeException("Serialization failed");
}
}
@Override
public <T> T deserialize(byte[] bytes, Class<T> clazz) {
try (ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
Input input = new Input(byteArrayInputStream)) {
Kryo kryo = kryoThreadLocal.get();
// byte->Object:从byte数组中反序列化出对对象
Object o = kryo.readObject(input, clazz);
kryoThreadLocal.remove();
return clazz.cast(o);
} catch (Exception e) {
throw new SerializeException("Deserialization failed");
}
}
}设计传输协议
RpcMessage的头部，后面是data
4B magic code（魔法数） 1B version（版本） 4B full length（消息长度） 1B messageType（消息类型）
1B compress（压缩类型） 1B codec（序列化类型） 4B requestId（请求的Id）
编解码实现
先实现上图所说的一些成员：
public class RpcConstants {
/**
* Magic number. Verify RpcMessage
*/
public static final byte[] MAGIC_NUMBER = {(byte) 'g', (byte) 'r', (byte) 'p', (byte) 'c'};
public static final Charset DEFAULT_CHARSET = StandardCharsets.UTF_8;
//version information
public static final byte VERSION = 1;
public static final byte TOTAL_LENGTH = 16;
public static final byte REQUEST_TYPE = 1;
public static final byte RESPONSE_TYPE = 2;
//ping
public static final byte HEARTBEAT_REQUEST_TYPE = 3;
//pong
public static final byte HEARTBEAT_RESPONSE_TYPE = 4;
public static final int HEAD_LENGTH = 16;
public static final String PING = "ping";
public static final String PONG = "pong";
public static final int MAX_FRAME_LENGTH = 8 * 1024 * 1024;
}RpcMessageEncoder 编码器
public class RpcMessageEncoder extends MessageToByteEncoder<RpcMessage> {
// 发出请求数量的更替，使用原子性的Integer
private static final AtomicInteger ATOMIC_INTEGER = new AtomicInteger(0);
@Override
protected void encode(ChannelHandlerContext ctx, RpcMessage rpcMessage, ByteBuf out) {
try {
out.writeBytes(RpcConstants.MAGIC_NUMBER); // 4B "grpc"
out.writeByte(RpcConstants.VERSION); // 1B
// leave a place to write the value of full length
out.writerIndex(out.writerIndex() + 4);
byte messageType = rpcMessage.getMessageType();
out.writeByte(messageType); // 1B
out.writeByte(rpcMessage.getCodec()); // 0x01 ---> 1B "kryo"
out.writeByte(CompressTypeEnum.GZIP.getCode()); // 0x01 ---> 1B "gzip"
out.writeInt(ATOMIC_INTEGER.getAndIncrement()); // requestId 自增 Integer ---> 4B
// build full length
byte[] bodyBytes = null;
int fullLength = RpcConstants.HEAD_LENGTH; // 头部长度为16B
// if messageType is not heartbeat message,fullLength = head length + body length 排除心跳机制发送的报文
if (messageType != RpcConstants.HEARTBEAT_REQUEST_TYPE
&& messageType != RpcConstants.HEARTBEAT_RESPONSE_TYPE) {
// serialize the object
String codecName = SerializationTypeEnum.getName(rpcMessage.getCodec());
log.info("codec name: [{}] ", codecName);
Serializer serializer = ExtensionLoader.getExtensionLoader(Serializer.class)
.getExtension(codecName);
bodyBytes = serializer.serialize(rpcMessage.getData());
// compress the bytes
String compressName = CompressTypeEnum.getName(rpcMessage.getCompress());
Compress compress = ExtensionLoader.getExtensionLoader(Compress.class)
.getExtension(compressName);
bodyBytes = compress.compress(bodyBytes);
fullLength += bodyBytes.length;
}
if (bodyBytes != null) {
out.writeBytes(bodyBytes);
}
int writeIndex = out.writerIndex(); // 先保存当前指针位置，存好之前预留的空间之后再返回当前位置
out.writerIndex(writeIndex - fullLength + RpcConstants.MAGIC_NUMBER.length + 1); // 加 1 是跳过版本号，到之前预留的缓冲区
out.writeInt(fullLength);
out.writerIndex(writeIndex); // 恢复指针位置
} catch (Exception e) {
log.error("Encode request error!", e);
}
}RpcMessageDecoder 解码器
public class RpcMessageDecoder extends LengthFieldBasedFrameDecoder {
public RpcMessageDecoder() {
// lengthFieldOffset: magic code is 4B, and version is 1B, and then full length. so value is 5
// lengthFieldLength: full length is 4B. so value is 4
// lengthAdjustment: full length include all data and read 9 bytes before, so the left length is (fullLength-9). so values is -9
// initialBytesToStrip: we will check magic code and version manually, so do not strip any bytes. so values is 0
this(RpcConstants.MAX_FRAME_LENGTH, 5, 4, -9, 0);
}
public RpcMessageDecoder(int maxFrameLength, int lengthFieldOffset, int lengthFieldLength,
int lengthAdjustment, int initialBytesToStrip) {
super(maxFrameLength, lengthFieldOffset, lengthFieldLength, lengthAdjustment, initialBytesToStrip);
}
@Override
protected Object decode(ChannelHandlerContext ctx, ByteBuf in) throws Exception {
// 得到 bytebuf，转到 decodeFrame() 调用解析 bytebuf
return decoded;
}
private Object decodeFrame(ByteBuf in) {
// note: must read ByteBuf in order
checkMagicNumber(in);
checkVersion(in);
// magicNumber and version has been read so begin with full length.
int fullLength = in.readInt();
// build RpcMessage object
byte messageType = in.readByte();
byte codecType = in.readByte();
byte compressType = in.readByte();
int requestId = in.readInt();
RpcMessage rpcMessage = RpcMessage.builder()
.codec(codecType)
.requestId(requestId)
.messageType(messageType).build();
if (messageType == RpcConstants.HEARTBEAT_REQUEST_TYPE) {
rpcMessage.setData(RpcConstants.PING);
return rpcMessage;
}
if (messageType == RpcConstants.HEARTBEAT_RESPONSE_TYPE) {
rpcMessage.setData(RpcConstants.PONG);
return rpcMessage;
}
int bodyLength = fullLength - RpcConstants.HEAD_LENGTH;
if (bodyLength > 0) {
byte[] bs = new byte[bodyLength];
in.readBytes(bs);
// decompress the bytes
String compressName = CompressTypeEnum.getName(compressType);
Compress compress = ExtensionLoader.getExtensionLoader(Compress.class)
.getExtension(compressName);
bs = compress.decompress(bs);
// deserialize the object
String codecName = SerializationTypeEnum.getName(rpcMessage.getCodec());
log.info("codec name: [{}] ", codecName);
Serializer serializer = ExtensionLoader.getExtensionLoader(Serializer.class)
.getExtension(codecName);
if (messageType == RpcConstants.REQUEST_TYPE) {
RpcRequest tmpValue = serializer.deserialize(bs, RpcRequest.class);
rpcMessage.setData(tmpValue);
} else {
RpcResponse tmpValue = serializer.deserialize(bs, RpcResponse.class);
rpcMessage.setData(tmpValue);
}
}
return rpcMessage;
}
private void checkVersion(ByteBuf in) {
// read the version and compare
byte version = in.readByte();
if (version != RpcConstants.VERSION) {
throw new RuntimeException("version isn't compatible" + version);
}
}
private void checkMagicNumber(ByteBuf in) {
// read the first 4 bit, which is the magic number, and compare
int len = RpcConstants.MAGIC_NUMBER.length;
byte[] tmp = new byte[len];
in.readBytes(tmp);
for (int i = 0; i < len; i++) {
if (tmp[i] != RpcConstants.MAGIC_NUMBER[i]) {
throw new IllegalArgumentException("Unknown magic code: " + Arrays.toString(tmp));
}
}
}
} Client 端发送 request ，server 能够正常接收并且能够成功的解压和解码，但是发送回Client的时候，Client端接受不到数据，debug了一下返回的并不是预期的数据，而是 PooledUnsafeDirectByteBuf(ridx: 0, widx: 166, cap: 2048)，然后上网查找这是什么东西，发现有关的是client和server的编解码不统一，不对啊，我两者使用的都是一样的编解码器，然后从编解码器入手查看，发现在client端
这一块地方，由于顺序出错，这样子在管道中addlast，就会导致data先会被ClientHandler接收并处理，这样处理到的数据就是没有被解码的数据，自然无法识别，所以需要把编解码器在Handler前addlast，这样就可以顺利解码了。管道就类似一个流水线，数据在这个流水线上传输并被处理。
首先在服务端关闭的时候，最后会有一个线程执行一项清理zookeeper中注册的服务，即shutdownhook，但由于笔记本连接wifi原因，每天的IP地址都不一定一样，就导致在获取本地ip地址时，可能昨天使用的ip地址注册的服务并不能够清除，问题锁定在清除服务的时候，清楚服务失败导致zookeeper中服务所占有的ip列表有很多种（IP地址和端口号的排列组合）没被成功删除，那么如果下一天的ip地址变换的话例如 从 192.168.0.105 ----> 192.168.0.107 就会又新增多个ip地址进入zookeeper中（因为服务名是一样的）,（当然在单机的情况下）这样在负载均衡的时候，优先选择到的ip地址可能是无效的，还是得到具体的生产环境中，可能就不会出现这种问题。
解决方案：
在得到需要删除的服务的IP地址的时候，截取路径名到ip地址前的服务名为止，删除这个节点及其的子节点。
问题即可解决！！！
