ux: group device filter by home (structural redesign + wording clarification)

[jingyulong]

Background: how the problem was discovered

While setting up the integration in a real environment, a Mi account with two homes (the user's own home with 23 devices + a shared home with 15 devices) ended up importing the shared home's devices into HA and none of the user's own — only discovered when comparing device MACs/IPs against the local network.

Reviewing the filter flow surfaced several UX problems:

1. The device list was one flat checkbox list mixing devices from all homes, so home membership could only be guessed from IP prefixes;
2. The 筛选家庭 (留空保存) / Filter Home (Leave blank to save) label was misleading — blank actually means no home filtering at all (import every home), not "safe";
3. The exclude/include radio labels (排除 Exclude / 包含 Include) carried no semantics — unclear what checking a box does;
4. home_ids was a two-step filter and was not persisted.

Changes

Per-home grouped device filtering (structural redesign)

• Removed the flat did_list multi-select and the two-step home_ids filter; each home now gets its own multi-select (home__<home name>), and home-less devices get their own home__unassigned group, always rendered last;
• On submit, all home__* groups are merged back into did_list for persistence (handled in both the initial config flow and the options flow);
• Devices within a group are sorted by name; the existing selection is preserved in exclude mode (otherwise the default "nothing checked" would mean removing all devices).

Rendering notes

Home-group selectors use cv.multi_select; the HA frontend picks the rendering automatically: < 6 options → inline checkboxes, ≥ 6 options → dropdown (SHOW_ALL_ENTRIES_LIMIT = 6 in ha-form-multi_select.ts). No explicit selector is needed, and small groups (like unassigned devices) naturally render as checkboxes at the end.

Wording clarifications

• Step description now spells out exclude/include semantics: in exclude mode, "checking none integrates all devices";
• Exclude/include radio labels are now self-explanatory: 排除 Exclude（勾选 = 不接入这些设备） / 包含 Include（只接入勾选的设备）;
• New group label for home-less devices: 未分配家庭的设备（附近的/离线的） / Unassigned devices (nearby/offline).

Tests

New tests/test_cloud_filter_grouped.py (3 cases):

1. Grouped schema: devices are grouped per home; did_list / home_ids no longer appear in the schema;
2. Preserved selection: the options flow pre-fills home__* defaults from the saved did_list;
3. Submit merge: home__* values are merged back into did_list and persisted.

Local pytest passes: 21 passed (including options flow and translation cases).

Verification

Tested against a real environment (Home Assistant 2026.8.1, Mi account with two homes / 38 devices) via options → update device list: home groups rendered as dropdown multi-selects, the unassigned group rendered as checkboxes and stayed last; after saving, 26 devices were imported, all from the intended home with no cross-home leakage.

Screenshots

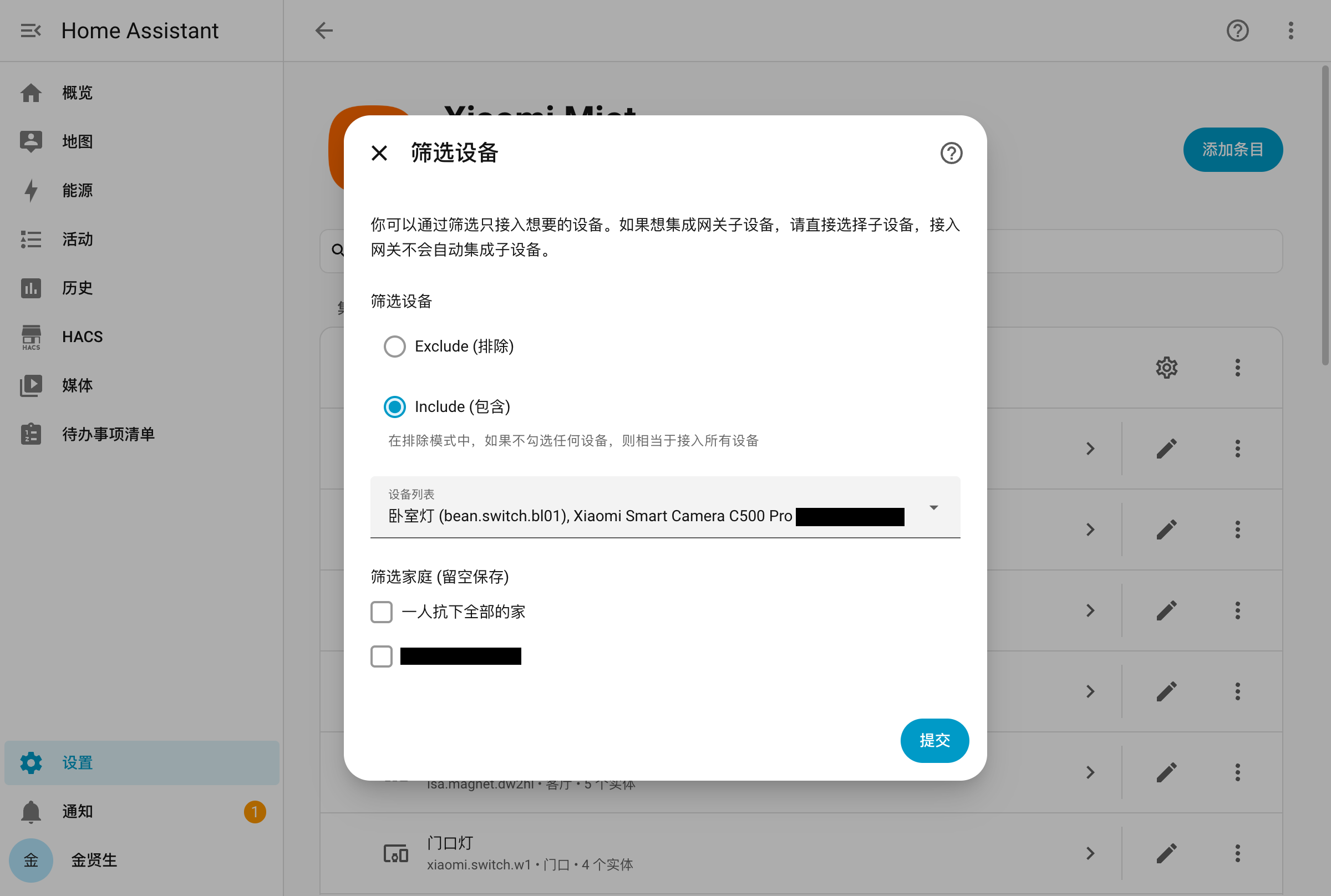

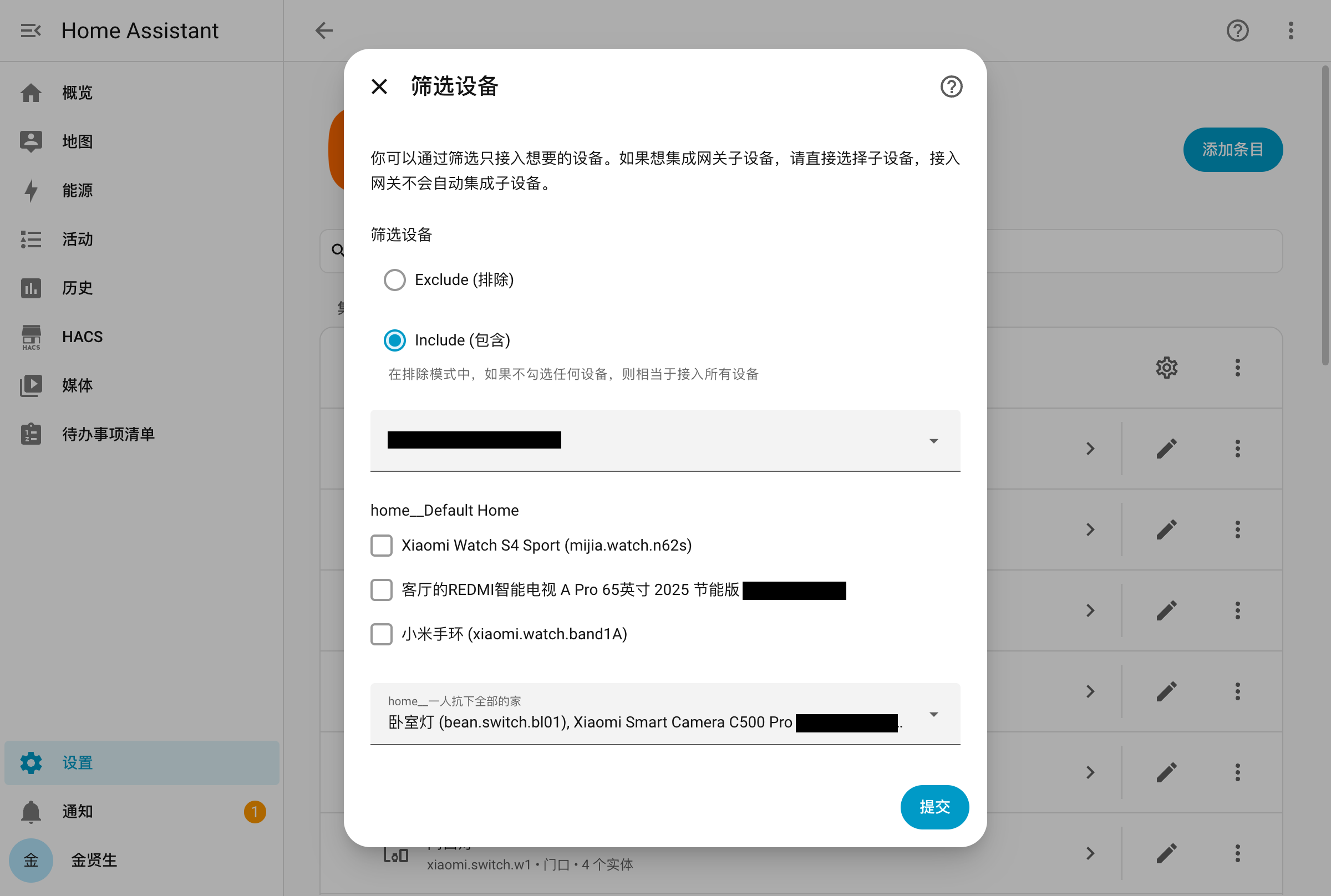

Before	After

(Sensitive data such as account IDs and IPs is masked in the screenshots.)

Related discussion: #2921

[al-one]

Thanks for the PR! I reviewed the changes. Here is my bilingual feedback (English / 中文). Overall the per-home grouping is a clear improvement. One critical bug and a couple of minor nits below.

谢谢这个 PR！我复查了变更，以下是双语反馈（英文 / 中文）。总体而言，按家庭分组是一处清晰的改进。下面是一个严重缺陷和几个小问题。

---

🔴 Critical bug: users cannot clear the device filter via the UI / 严重缺陷：用户无法通过 UI 清空设备过滤

Location 位置: config_flow.py L434 (initial flow 初始流) & L1152 (options flow 选项流)

The merge logic only writes did_list when it is truthy:

合并逻辑只有在 did_list 非空时才会写入：

did_list = []
for k in list(user_input.keys()):
    if k.startswith('home__'):
        did_list += user_input.pop(k) or []
if did_list:
    user_input['did_list'] = did_list   # skipped when did_list == [] / 当 did_list 为空时被跳过

Repro 复现: a user with did_list=['d1','d2'] and filter_did='exclude' unchecks every device across all home__* groups to clear the filter and submits. did_list becomes [], if did_list: is falsy, user_input['did_list'] is never set, and config_data.update() keeps the previously saved did_list. The user expects to integrate all devices but d1/d2 stay excluded, with no UI path to recover (short of removing and re-adding the config entry).

假设用户有 did_list=['d1','d2'] 且 filter_did='exclude'，在选项流中取消勾选所有 home__* 分组里的设备，想借此清空过滤并提交。此时 did_list 变成 []，if did_list: 为假，user_input['did_list'] 永远不会被设置，config_data.update() 保留了之前保存的 did_list。用户期望接入全部设备，但 d1/d2 仍然被排除，而且除了删除配置重新添加之外，UI 上没有其他恢复途径。

Suggested fix 修复建议 — always write the key / 始终写入该键：

if did_list:
    user_input['did_list'] = did_list
else:
    user_input['did_list'] = []

or simply / 或更简单：user_input['did_list'] = did_list

---

🟡 Minor: duplicated home__* merge logic / 轻微：home__* 合并逻辑重复

Location 位置: config_flow.py L430-435 & L1148-1153

The identical "pop home__* keys and concatenate into did_list" block appears in both the initial flow and the options flow. Any future fix (including the one above) has to be applied twice; missing one copy makes the two flows diverge. Consider extracting a small helper, e.g. a @staticmethod _merge_home_groups(user_input).

"弹出 home__* 键并合并进 did_list"的相同代码块在初始流和选项流中各出现一次。任何未来的修复（包括上面那个）都需要改两处；漏改一处就会导致两个流行为不一致。建议提取一个小辅助方法，例如 @staticmethod _merge_home_groups(user_input)。

---

🟡 Minor: translation files missing trailing newline / 轻微：翻译文件缺少尾随换行符

Location 位置: translations/en.json and translations/zh-Hans.json (last line)

Both files are committed without a trailing newline (the diff shows \ No newline at end of file), while master had one. This will trip pre-commit's end-of-file-fixer (or stricter text-lint hooks in CI). Please add the trailing newline back.

两个文件提交时都缺少尾随换行符（diff 中显示 \ No newline at end of file），而 master 上原本是有换行符的。这会触发 pre-commit 的 end-of-file-fixer（或 CI 中更严格的文本 lint 钩子）。请把末尾换行符补回去。

---

⚪ False alarm: home_ids filter / 非问题：home_ids 过滤

Location 位置: config_flow.py L219

The new if home_ids and d.get('home_id') not in home_ids: could look like a regression vs. the old walrus version, but home_ids is no longer in the schema (the field was removed from the grouped flow), so it is always [] and the branch never fires. Not a bug — just noting it since it reads as suspicious at first glance.

新的 if home_ids and d.get('home_id') not in home_ids: 相比旧版的海象表达式看起来像是回归，但 home_ids 已不再出现在 schema 中（该字段已从分组流里移除），因此它恒为 []，这个分支永远不会触发。不是 bug——只是说明一下，因为它乍一看有歧义。

---

Conclusion 结论: please fix the 🔴 bug before merging — it's a real regression that affects users who want to turn the filter off. The rest are code-quality suggestions. The grouped-by-home schema and the wording clarifications look good, and the tests cover the intended behavior well.

请务必在合并前修复 🔴 这个缺陷——它是真实的回归，会影响想关闭过滤的用户。其余都是代码质量建议。按家庭分组的 schema 和文案澄清都很好，测试也很好地覆盖了预期行为。

---

Generated by Claude Code while reviewing PR #2920; verified against the pr-2920 branch. / 由 Claude Code 在复查 PR #2920 时生成，已在 pr-2920 分支上核实。
