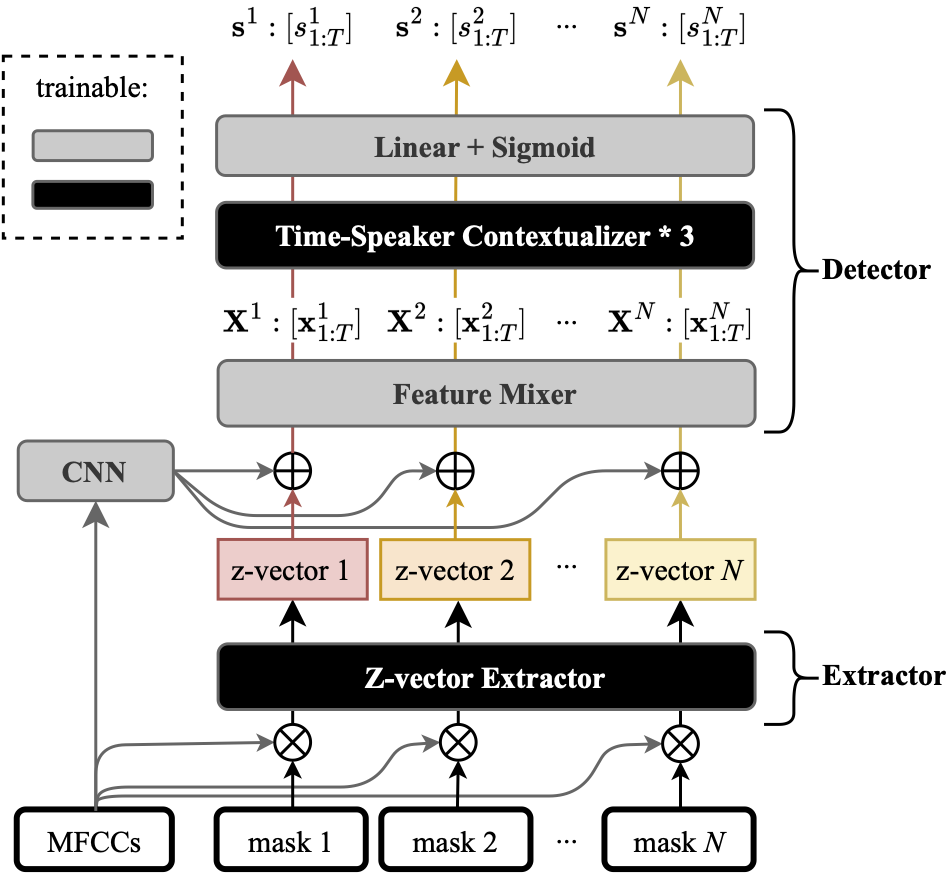

The model for proposed in Multi-Target Extractor and Detector for Unknown-Number Speaker Diarization.
The model is the neural stage of MTEAD, stored in model/
- X: Features, i.e. MFCC. Size: (Batch, Dim, Time)
- E: Speaker Features, i.e. 500 frames of speaker. Size: (Batch, Time , E_Dim, Spk)
- num_spks: Numbers of speaker, for training. Size: (Batch)
- Diarization (VAD) Result. Size: (Batch, Spk, Time)
=========================================================================================================
Layer (type:depth-idx) Output Shape Param #
=========================================================================================================
Model [32, 4, 500] --
├─Linear: 1-1 [128, 500, 513] 21,033
├─ResNet: 1-2 [128, 256] --
│ └─Sequential: 2-1 [128, 128, 500] --
│ │ └─Conv1d: 3-1 [128, 1024, 500] 1,577,984
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-2 [128, 1024, 500] 6,299,648
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-3 [128, 1024, 500] 6,299,648
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-4 [128, 1024, 500] 6,299,648
│ │ └─LeakyReLU: 3-5 [128, 1024, 500] --
│ │ └─Conv1d: 3-6 [128, 512, 500] 1,573,888
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-7 [128, 512, 500] 1,576,960
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-8 [128, 512, 500] 1,576,960
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-9 [128, 512, 500] 1,576,960
│ │ └─LeakyReLU: 3-10 [128, 512, 500] --
│ │ └─Conv1d: 3-11 [128, 256, 500] 393,728
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-12 [128, 256, 500] 395,264
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-13 [128, 256, 500] 395,264
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-14 [128, 256, 500] 395,264
│ │ └─LeakyReLU: 3-15 [128, 256, 500] --
│ │ └─Conv1d: 3-16 [128, 128, 500] 98,560
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-17 [128, 128, 500] 99,328
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-18 [128, 128, 500] 99,328
│ │ └─Conv1d_Layernorm_LRelu_Residual: 3-19 [128, 128, 500] 99,328
│ │ └─LeakyReLU: 3-20 [128, 128, 500] --
│ └─AttentiveStatisticPooling: 2-2 [128, 256] --
│ │ └─BatchNorm1d: 3-21 [128, 128, 500] 256
│ │ └─Conv1d: 3-22 [128, 128, 500] 16,640
│ │ └─Conv1d: 3-23 [128, 1, 500] 129
│ │ └─Softmax: 3-24 [128, 1, 500] --
├─Linear: 1-3 [32, 4, 128] 32,896
├─CNN: 1-4 [32, 128, 500] --
│ └─Sequential: 2-3 [32, 128, 500] --
│ │ └─Conv1d: 3-25 [32, 128, 500] 15,488
│ │ └─ReLU: 3-26 [32, 128, 500] --
│ │ └─BatchNorm1d: 3-27 [32, 128, 500] 256
│ │ └─Conv1d: 3-28 [32, 128, 500] 49,280
│ │ └─ReLU: 3-29 [32, 128, 500] --
│ │ └─BatchNorm1d: 3-30 [32, 128, 500] 256
│ │ └─Conv1d: 3-31 [32, 128, 500] 49,280
│ │ └─ReLU: 3-32 [32, 128, 500] --
│ │ └─BatchNorm1d: 3-33 [32, 128, 500] 256
│ │ └─Conv1d: 3-34 [32, 128, 500] 49,280
│ │ └─ReLU: 3-35 [32, 128, 500] --
│ │ └─BatchNorm1d: 3-36 [32, 128, 500] 256
├─RNN: 1-5 [128, 128, 500] --
│ └─LSTM: 2-4 [128, 500, 128] 264,192
│ └─Linear: 2-5 [128, 500, 128] 16,512

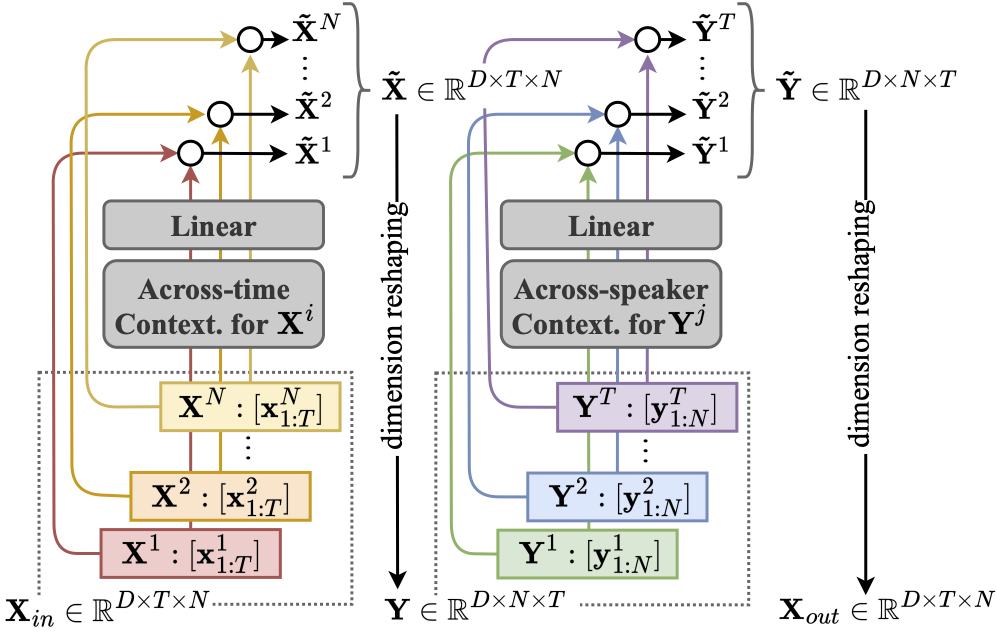

├─TimeSpeakerContextualizer: 1-6 [32, 4, 500] --
│ └─Sequential: 2-6 [32, 128, 4, 500] --
│ │ └─GroupNorm: 3-37 [32, 128, 4, 500] 256
│ │ └─Conv2d: 3-38 [32, 128, 4, 500] 16,512
│ └─ModuleList: 2-11 -- (recursive)
│ │ └─LSTMBlock: 3-39 [32, 500, 4, 128] 116,096
│ └─ModuleList: 2-12 -- (recursive)
│ │ └─LSTMBlock: 3-40 [32, 4, 500, 128] 116,096
│ └─ModuleList: 2-11 -- (recursive)
│ │ └─LSTMBlock: 3-41 [32, 500, 4, 128] 116,096
│ └─ModuleList: 2-12 -- (recursive)
│ │ └─LSTMBlock: 3-42 [32, 4, 500, 128] 116,096
│ └─ModuleList: 2-11 -- (recursive)
│ │ └─LSTMBlock: 3-43 [32, 500, 4, 128] 116,096
│ └─ModuleList: 2-12 -- (recursive)
│ │ └─LSTMBlock: 3-44 [32, 4, 500, 128] 116,096
│ └─Sequential: 2-13 [32, 128, 500, 4] --
│ │ └─PReLU: 3-45 [32, 128, 500, 4] 1
│ │ └─Conv2d: 3-46 [32, 128, 500, 4] 16,512
│ └─Sequential: 2-14 [128, 1, 500] --
│ │ └─Conv1d: 3-47 [128, 256, 500] 33,024
│ │ └─GroupNorm: 3-48 [128, 256, 500] 512
│ │ └─GatedTanhUnit: 3-49 [128, 128, 500] --
│ │ └─Conv1d: 3-50 [128, 1, 500] 128
=========================================================================================================
Total params: 30,037,291
Trainable params: 30,037,291
Non-trainable params: 0
Total mult-adds (T): 4.97
=========================================================================================================
Input size (MB): 12.80
Forward/backward pass size (MB): 15086.72
Params size (MB): 120.15
Estimated Total Size (MB): 15219.67
=========================================================================================================
- Optimizer: Adam
- learning rate: 0.1
- max gradiant norm: 5
- LR scheduler: noam
- warmup steps: 25000
- See
conf/for more information
- python >= 3.6
- pytorch >= 1.3
@ARTICLE{10132569,
author={Cheng, Chin-Yi and Lee, Hung-Shin and Tsao, Yu and Wang, Hsin-Min},
journal={IEEE Signal Processing Letters},
title={Multi-Target Extractor and Detector for Unknown-Number Speaker Diarization},
year={2023},
volume={30},
number={},
pages={638-642},
doi={10.1109/LSP.2023.3279781}
}
