refactor(polyline): introduces resizingOffset

[luizzappa]

Motivation

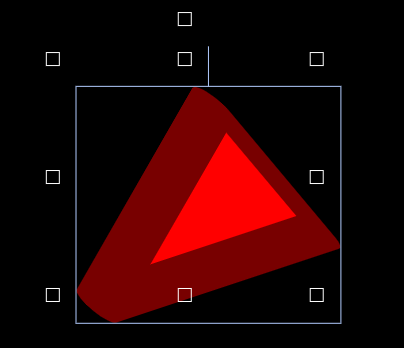

The calculation of the poly's BBOX alters the original height and width values ​​of the object's, causing a different behavior from other fabricjs objects and making the return of the _getNonTrasformedDimensions function incorrect.

Description

It introduces resizingOffset property that stores how much we must add to the width and height of the object to find the correct value for the BBOX and does not change the originals values of width and height.

Changes

In addition of the resizingOffset property, extend transformMatrixKey given that the properties strokeUniform, strokeLineJoin, strokeLineCap, strokeMiterLimit change the width/height of the BBOX, but the original matrix transform cache does not take into account these changes.

This was causing a bug in the controls when changing some property that the cache is not aware of.

As the strokeMiterLimit may or may not change the final width/height, I thought it would be better to store the resizingOffset property in the cache key instead of each of the properties individually (storkeLineJoin, StrokeLineCap, strokeUniform, strokeMiterLimit)

  transformMatrixKey(...args: any): string {
    const oldKey = super.transformMatrixKey(...args),
      newPart = this.resizingOffset || '';
    return oldKey + newPart;
  }

[ShaMan123]

diff

[ShaMan123]

If I understand correctly @asturur means we are going to take a closer look at width/height in general. So this effort might be redundant. Hopefully we will discuss it in the upcoming days.

[stale]

This pull request has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs 😔. Thank you for your contributions.

[stale]

This pull request has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs 😔. Thank you for your contributions.

[ShaMan123]

we will look at this in the context of #8767

[ShaMan123]

@luizzappa would want to try to do polys in #8767 ?

[luizzappa]

@luizzappa would want to try to do polys in #8767 ?

@ShaMan123, working on fabric.js internals is always rewarding (and most of the time fun) :)

The only problem is that I don't have a lot of time, so I need a direction of what has to be done and preferably smaller blocks. If the task fits these requirements, you can count on me. Trying to understand everything that is happening in that PR would take some time that I don't have at the moment.

[ShaMan123]

Great
I will ping you when I think it is time
And explain it all

[stale]

This pull request has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs 😔. Thank you for your contributions.

[ShaMan123]

closing in favor of #8374
