BuilderHub

BuilderHub is the central data source for BuilderNet builder registration and configuration.

Docs here: https://buildernet.org/docs/flashbots-infra

BuilderHub has these responsibilities:

1. Builder identity management
2. Provisioning of secrets and configuration
3. Peer discovery

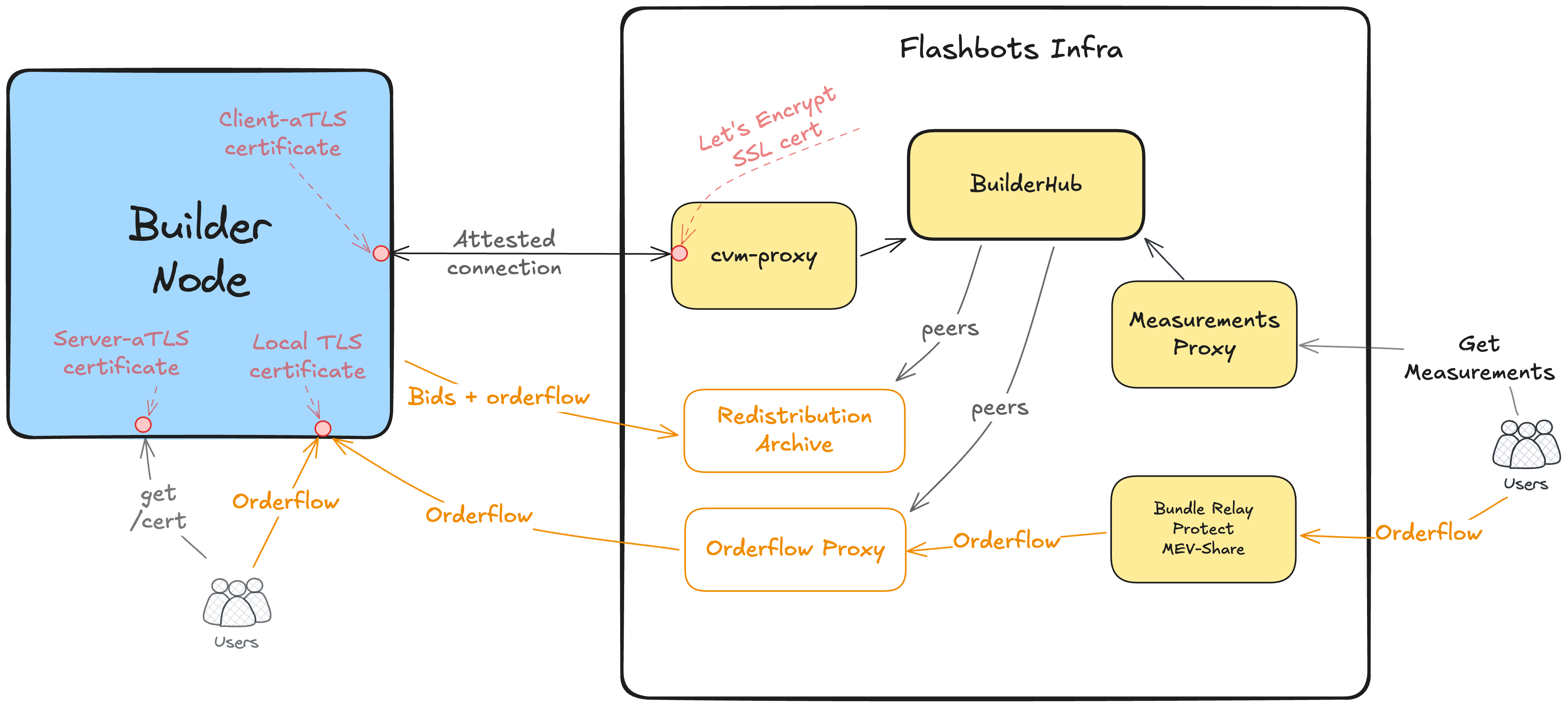

System context diagram:

---

Getting started

Start the database and the server:

# Start a Postgres database container
docker run -d --name postgres-test -p 5432:5432 -e POSTGRES_USER=postgres -e POSTGRES_PASSWORD=postgres -e POSTGRES_DB=postgres postgres

# Apply the DB migrations
for file in schema/*.sql; do psql "postgres://postgres:postgres@localhost:5432/postgres?sslmode=disable" -f $file; done

# Start the server
go run cmd/httpserver/main.go

Query a few endpoints:

# Public endpoints
curl localhost:8080/api/l1-builder/v1/measurements

# client-aTLS secured endpoints
curl localhost:8080/api/l1-builder/v1/builders
curl localhost:8080/api/l1-builder/v1/configuration
curl -X POST localhost:8080/api/l1-builder/v1/register_credentials/rbuilder

Run database tests>

RUN_DB_TESTS=1 make test

Stop the database:

docker rm -f postgres-test

---

Contributing

Install dev dependencies

go install mvdan.cc/[email protected]
go install honnef.co/go/tools/cmd/[email protected]
go install github.com/golangci/golangci-lint/cmd/[email protected]
go install go.uber.org/nilaway/cmd/[email protected]
go install github.com/daixiang0/[email protected]

Lint, test, format

make lint
make test
make fmt

---

API Documentation

BuilderHub exposes a JSON+REST API with these methods:

API	Exposure	Authentication	Requested by	Served by
Get Secrets + Config	TDX Node	IP + Client-ATLS Attestation	Builder (via cvm-proxy)	cvm-proxy → BuilderHub
Register Credentials	TDX Node	IP + Client-ATLS Attestation	Builder (via cvm-proxy)	cvm-proxy → BuilderHub
Get Active Builders	TDX Node	IP + Client-ATLS Attestation	Builder (via cvm-proxy)	cvm-proxy → BuilderHub
Get Active Builders	Internal	HTTP Basic Auth	MEV-Share, block processor, …	BuilderHub
Get Allowed Measurements	Internal	HTTP Basic Auth	Users, Builders	nginx → BuilderHub
Admin Endpoints	Internal	HTTP Basic Auth

---

Get Secrets + Configuration

GET /api/l1-builder/v1/configuration

Auth:

• IP + Client-ATLS Attestation

Response: testdata/get-configuration.json

---

Register Credentials

POST /api/l1-builder/v1/register_credentials/<SERVICE>

Auth:

• IP + Client-ATLS Attestation

Request:

• [service: orderflow_proxy]:

  • TLS cert + ECDSA pubkey address (for orderflow)

  {
  	"tls_cert": string (\n instead of newlines)
  	"ecdsa_pubkey_address": string
  }

• [service: rbuilder]: ECDSA pubkey address (for bids)

  {
  	"ecdsa_pubkey_address": string
  }

Response: 200 OK

---

Get Active Builders

GET /api/l1-builder/v1/builders (external, requests from builder via cvm-proxy)

GET /api/internal/l1-builder/v1/builders (internal, no auth)

Response: testdata/get-builders.json

---

Get Allowed Measurements

Auth: public

GET /api/l1-builder/v1/measurements

Response: Array with currently allowed measurement JSONs

testdata/get-measurements.json

---

Admin Endpoints

Add measurements

(created disabled by default)

POST /api/admin/v1/measurements

Payload

{
	"measurement_id": "v1.2.3-20241010-rc1",
	"attestation_type": "azure-tdx",
	"measurements": {
		"11": {
		    "expected": "efa43e0beff151b0f251c4abf48152382b1452b4414dbd737b4127de05ca31f7"
	    },
  }
}

Note that only the measurements given are expected, and any non-present will be ignored.

To allow any measurement, use an empty measurements field: "measurements": {}.

{
    "measurement_id": "test-blanket-allow",
    "attestation_type": "azure-tdx",
    "measurements": {}
}

Enable/disable measurements

POST /api/admin/v1/measurements/activation/{measurement_id}

{
  "enabled": true
}

Adding a new builder instance

(created inactive by default)

POST /api/admin/v1/builders/

Payload

{
	"name": string,
	"ip_address": string
}

Enable/disable builder instance

POST /api/admin/v1/builders/activation/{builder_name}

{
  "enabled": true
}

Errors:

• if no active configuration available

Get builder configuration

GET /api/admin/v1/builders/configuration/{builder_name}/active

gets always the latest/active configuration

Get builder configuration with secrets

GET /api/admin/v1/builders/configuration/{builder_name}/full

gets always the latest/active configuration

Update builder configuration

if valid JSON, will create a new active configuration and disable the old configuration

POST /api/admin/v1/builders/configuration/{builder_name}

{
  ...
}

Update secrets configuration

POST /api/admin/v1/builders/secrets/{builderName}

Payload: JSON with secrets, both flattened/unflattened

{
    ...
}
