Tuya Homebridge Plugin

Homebridge custom plugin for controlling Powered by Tuya (PBT) devices in HomeKit, it's based on Tuya Open API. The plugin is officially maintained by the Tuya Developer Team.

https://www.npmjs.com/package/homebridge-tuya-platform

Supported Tuya Device Types

The following Tuya Device types are currently supported by this plugin:

• Light: Supports Tuya Wi-Fi light devices.
• Outlet: Supports Tuya Wi-Fi Outlet devices.

Preparation

Registration

Please check Tuya IoT Platform Configuration Guide to register an account on the Tuya IoT Platform, and get the required information. You need to create a Cloud project and complete the configuration of asset, user, and application. Then, you will get the username, password, Access ID, and Access Secret.

Hardware Preparation

Hardware	Description
A Mac/PC, Raspberry Pi, or server	Install plugins and start Homebridge service. This demonstration runs on macOS.
Smart devices	Demonstrate device integration and control.
An iOS device with the Home app installed	Control HomeKit-enabled devices.

Software Preparation

Software	Description
Command line interface	Use the one you like. We use the built-in Terminal on macOS.
Pairing tool	Tuya Device Manager App or WeChat Mini Program (mainland China only).

Quick Start

1. Open the Terminal.

2. Check the Homebridge and install Homebridge in your system.

3. Install Tuya Homebridge plugin.

Note: If you encounter any problems with the installation, you may need to preface this command with sudo to make it run as an administrator.

1. Install plugins.

   npm install homebridge-tuya-platform


2. Wait for the plugin to install and check whether the installation is successful. For more information, see the video below.

Configuration

You need to configure the config.json file in the Homebridge plugin.

1. Go to the directory homebridge-tuya-platform.

   cd ./node_modules/homebridge-tuya-platform


2. Go to the directory config.

   cd ./config

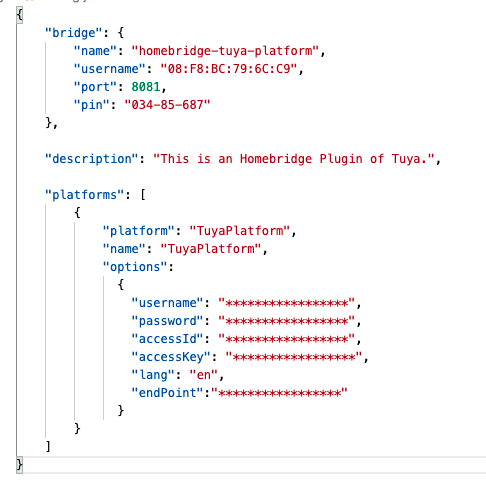

3. Edit the config.json file.

   vim config.json


4. In the options part, enter the username, password, accessId, and accessKey, which you can follow the Configure Cloud Development Project part in Tuya IoT Platform Configuration Guide to get.

   The lang value can set en as default and the endPoint is the domain name of the currently used Tuya Open API.

   Choose endPoint

   1. America:

   https://openapi.tuyaus.com


   2. China:

   https://openapi.tuyacn.com


   3. Europe:

   https://openapi.tuyaeu.com


   4. India:

   https://openapi.tuyain.com


   5. EasternAmerica:

   https://openapi-ueaz.tuyaus.com


   6. WesternEurope:

   https://openapi-weaz.tuyaeu.com




5. Save and close the file.

Start Tuya Homebridge Plugin

1. Go back to the directory homebridge-tuya-platform.

   cd ..


2. Start the plugin.

   homebridge -D -U ./config/ -P ./




Bridge to HomeKit

Open the Home app on your Apple device. Pair with Homebridge by scanning the QR code printed in the step of starting the plugin, or entering the 8-digit PIN code. You can find the PIN code in the config.json file.

Contribution guide

Fork Tuya's Homebridge repo in GitHub and follow the step-by-step tutorial to start the plugin service.

Set up the development environment

—-VSCode
—-engines
    "node": “>=0.12.0”
    "homebridge": ">=0.2.0"
—-dependencies
    "axios": “^0.21.1",
    "crypto-js": “^4.0.0”,
    "mqtt": “^4.2.6",
    "uuid": "^8.3.2"

Support more accessory types

How to implement plugins

Pay attention to several JSON files

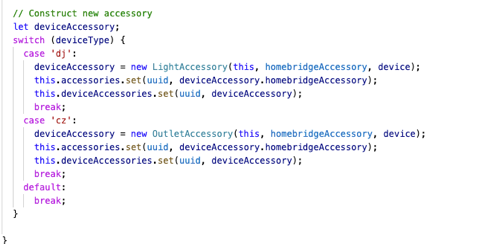

• The entry file index.js. Add your desired accessory type to the addAccessory() function and create the xx_accessy.js file.

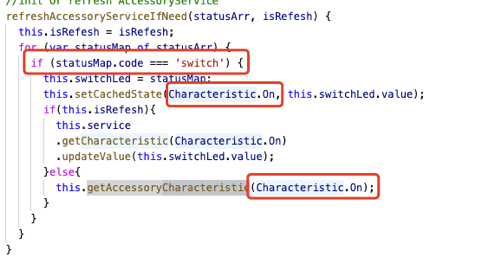

• The xx_accessory.js file. In this file, traverse your newly created function in refreshAccessoryServiceIfNeed() and get the Characteristic corresponding to a service.

• The tuyaopenapi.js file contains device related APIs.
• The tuyamqttapi.js file supports the MQTT service.

Common issues

For more information about Homebridge installation, see the Common Issues in the Homebridge repo.

Tuya Open API

• login(username, password): Login to the Tuya IoT Platform.
• getDeviceList(): Gets all the devices under an account's asset. (Devices correspond to accessories)
• get_assets(): Gets the available assets.
• getDeviceIDList(assetID): Queries the list of device IDs under an asset.
• getDeviceFunctions(deviceID): Gets the instruction set.
• getDeviceInfo(deviceID): Gets the information of single device.
• getDeviceListInfo(devIds = []): Gets the information of multiple devices.
• getDeviceStatus(deviceID): Gets the status of single device.
• getDeviceListStatus(devIds = []): Gets the status of multiple devices.
• sendCommand(deviceID, params): Sends commands to a device.

For more info, please check the Tuya Open API docs.

MQTT

• start(): Starts MQTT.
• stop(): Stops MQTT.
• addMessageListener(listener): Adds callbacks.
• removeMessageListener(listener): Removes callbacks.

What is HomeKit?

HomeKit is Apple's smart home platform introduced in 2014. It allows users of Apple devices to securely and easily control any devices with a 'Works with Apple HomeKit' badge, such as lights, door locks, thermostats, outlets, and many more.

What is Homebridge?

Homebridge is a lightweight NodeJS server you can run on your home network that emulates the iOS HomeKit API. It supports plugins that provide a basic bridge from HomeKit to various third-party APIs provided by manufacturers of smart home devices. We recommend you check the Homebridge before getting started with Homebridge plugins.

Users

If you are a smart home geek and have a bundle of devices from different platforms, this step-by-step tutorial will help you make devices HomeKit-enabled and then develop Tuya Homebridge plugins.

Feedback

You can use the GitHub Issue or tickets to provide feedback on any problems you encounter.

LICENSE

For more information, see the LICENSE file.
