UltraGrasp

UltraGrasp is a real-time hand-tracking teleoperation pipeline for a Franka robot arm and Weiss WSG-50 gripper.

It uses:

• Ultraleap for hand tracking
• UMI-style hardware controllers with a Polymetis backend
• ServoBox for RT VM / Polymetis host setup

The main entrypoint is a live dashboard that visualizes hand motion and can stream commands to the robot:

python ultragrasp.py

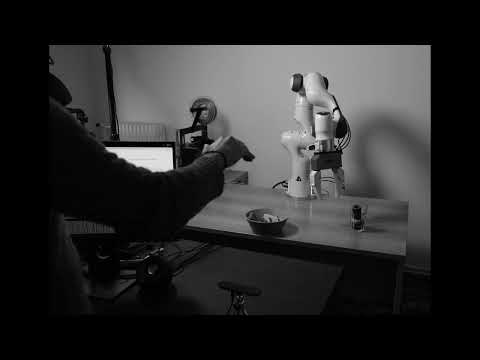

Demo

Quick Start

Tested on Ubuntu 24.04.

1. Clone with submodules

git clone --recurse-submodules <repo-url>
cd ultragrasp

If you already cloned the repo:

git submodule update --init --recursive

2. Install system packages

sudo apt update
sudo apt install -y build-essential python3-dev python3-venv python3-tk

python3-tk is needed for the dashboard GUI on many Ubuntu installs.

3. Install Ultraleap hand tracking

wget -qO - https://repo.ultraleap.com/keys/apt/gpg | gpg --dearmor | sudo tee /etc/apt/trusted.gpg.d/ultraleap.gpg >/dev/null
echo 'deb [arch=amd64] https://repo.ultraleap.com/apt stable main' | sudo tee /etc/apt/sources.list.d/ultragrasp-ultraleap.list >/dev/null
sudo apt update
sudo apt install -y ultraleap-hand-tracking
leapctl eula

Sanity check:

ultraleap-hand-tracking-control-panel

Make sure the control panel sees your hands before continuing.

4. Create a Python environment

python3 -m venv .venv
source .venv/bin/activate
python -m pip install --upgrade pip build

5. Install Python dependencies

python -m pip install -r requirements.txt
python -m pip install -r dependencies/leapc-python-bindings/requirements.txt
python -m build dependencies/leapc-python-bindings/leapc-cffi
python -m pip install dependencies/leapc-python-bindings/leapc-cffi/dist/leapc_cffi-*.whl
python -m pip install -e dependencies/leapc-python-bindings/leapc-python-api

6. Set a safe startup config

If you want to launch the dashboard without a live robot / gripper, edit config/ultragrasp.yaml and use:

robot_control:
  enabled: false

wsg_control:
  enabled: false

That gives you a tracking-only dashboard that should start cleanly on a laptop with an Ultraleap sensor.

7. Run

source .venv/bin/activate
python ultragrasp.py

Optional:

python ultragrasp.py --config config/ultragrasp.yaml

Controls

• Space: toggle zeroed hand-pose preview
• r: toggle robot live mode
• h: send robot to configured home pose
• q: quit

Enabling Live Franka + WSG Control

When you are ready to drive hardware:

1. Set up the Polymetis host, optionally with ServoBox:

servobox init
servobox pkg-install polymetis
servobox run polymetis

2. On the machine connected to the Franka, start the UMI / Polymetis bridge:

python dependencies/universal_manipulation_interface/scripts_real/launch_franka_interface_server.py

3. Update config/ultragrasp.yaml:

• Set robot_control.enabled: true
• Set robot_control.robot_ip and robot_control.robot_port
• Set robot_control.debug: false for live motion
• Set wsg_control.enabled: true and its hostname/port if using the WSG-50

Important: UMI Franka patch files

If the stock UMI Franka scripts do not work in your setup, use the patched files in src/umi-franka-patches/ before starting the bridge:

cp src/umi-franka-patches/franka_interpolation_controller.py \
  dependencies/universal_manipulation_interface/umi/real_world/franka_interpolation_controller.py

cp src/umi-franka-patches/launch_franka_interface_server.py \
  dependencies/universal_manipulation_interface/scripts_real/launch_franka_interface_server.py

Without these replacements, the Franka bridge may fail even if the rest of the setup looks correct.

Notes

• If import leap fails with a missing leapc_cffi module, rebuild and reinstall leapc-cffi.
• If Ultraleap is installed in a non-default location, set LEAPSDK_INSTALL_LOCATION.
• If the dashboard says No bridge, the Franka interface server is not reachable yet.

Attribution

UltraGrasp builds on third-party components with their own licenses and terms:

• dependencies/universal_manipulation_interface from the UMI project, licensed under MIT
• dependencies/leapc-python-bindings from Ultraleap, licensed under Apache-2.0
• The Ultraleap Linux runtime installed via ultraleap-hand-tracking, which is distributed separately under Ultraleap's own terms

The local files in src/umi-franka-patches/ are modified adaptations of upstream UMI files.

See THIRD_PARTY_NOTICES.md for a concise summary.
