sbol-db

sbol-db is a database for synthetic biology data. It stores your SBOL designs and lets you query them by IRI, across the design graph, with SPARQL, or by DNA sequence.

It ingests SBOL 3 RDF, upgrades SBOL 2 RDF, and imports GenBank or FASTA into SBOL 3, projecting every design into both a typed relational schema and an RDF triplestore. The query surface is five composable primitives: typed lookup by IRI, bounded graph neighborhood traversal, read-only SPARQL 1.1, nucleotide substring + reverse-complement search, and ontology-aware role expansion.

The persistence layer sits behind a backend-neutral storage contract (the sbol-db-storage crate), so the same query surface runs on Postgres, SQLite, or an embedded RocksDB engine. The connection-string scheme picks the backend; Postgres is the default. See docs/storage.md.

New to the codebase? Start with the crate guide. Want to see how a design flows through the tables? See the domain model. Deploying it? See docs/deployment.md. Curious how it compares with Virtuoso? See docs/benchmarks.md and the bench/ harness.

Scope

sbol-db is deliberately narrow: a best-in-class SBOL query database. It is not a DBTL workflow tracker, lab orchestration system, or model registry. Designs are first-class; experiments, builds, predictive model runs, and decision records are out of scope. The focus is on sophisticated ways to query SBOL objects, not broader project state.

Built on:

• sbol-rs for SBOL parsing, validation, and RDF I/O.
• Postgres, SQLite, or RocksDB as the storage engine, each implementing the sbol-db-storage contract. The scheme in --database-url selects the engine; Postgres is the default. See storage.md.
• The Oxigraph ecosystem (oxrdf, spareval, spargebra, sparesults) for SPARQL.

Installation

Bring up the dev Postgres (one command; the schema is applied on first CLI invocation):

docker compose up -d

Build and install the CLI, then apply migrations:

cargo install --path crates/sbol-db
sbol-db db migrate

Quickstart — CLI

# Import a single document.
sbol-db graph import path/to/design.ttl

# SBOL 2 RDF is upgraded to SBOL 3 on import.
sbol-db graph import path/to/legacy-sbol2.xml

# GenBank and FASTA are converted to SBOL 3 on import.
sbol-db graph import path/to/design.gbk --namespace https://example.org/lab
sbol-db graph import path/to/sequences.fasta --namespace https://example.org/lab

# Import an entire directory as one atomic transaction (commits all or none).
sbol-db graph import path/to/designs/ --skip-existing

# Corpus-scale onboarding: per-file txs, parallel, tolerate bad files.
sbol-db graph import path/to/corpus/ --continue-on-error --parallel 4 --skip-existing

# Resolve an object by IRI.
sbol-db object get https://synbiohub.org/public/igem/i13504

# Stream every stored object as newline-delimited JSON (corpus dump).
sbol-db object export-all --sbol-class http://sbols.org/v3#Component > components.jsonl

# Re-emit a single object as RDF.
sbol-db object export <iri> --format turtle

# Walk the bounded forward/backward neighborhood of an IRI.
sbol-db query neighborhood <iri> --depth 2 --direction both

# Find every occurrence of an EcoRI site (forward + reverse complement).
sbol-db query sequence-search GAATTC

# Load the Sequence Ontology, then list its descendants of "promoter".
sbol-db ontology fetch so
sbol-db ontology descendants SO:0000167

# Run a SPARQL query from stdin.
echo 'PREFIX sbol: <http://sbols.org/v3#>
SELECT ?s WHERE { ?s a sbol:Component } LIMIT 10' \
  | sbol-db query sparql -

# Start the HTTP server.
sbol-db server
# Then visit http://127.0.0.1:8888/docs for the Scalar-rendered API
# reference, or http://127.0.0.1:8888/openapi.json for the raw schema.

sbol-db --help lists all subcommands.

Quickstart — Library

The CLI wraps the sbol-db-storage contract: SbolObjectService (the Postgres implementation of SbolStore) and sbol-db-sparql::SparqlEngine (which evaluates over any TripleSource). Both are usable as library types:

use sbol_db_core::SerializationFormat;
use sbol_db_postgres::{connect, run_migrations, SbolObjectService};
use sbol_db_sparql::{ResultFormat, SparqlEngine, SparqlOptions};
use sbol_db_storage::ImportInput;

#[tokio::main]
async fn main() -> Result<(), Box<dyn std::error::Error>> {
    let pool = connect("postgres://sbol:sbol@localhost:5432/sbol").await?;
    run_migrations(&pool).await?;
    let svc = SbolObjectService::new(pool);

    svc.import_document(ImportInput {
        body: std::fs::read_to_string("design.ttl")?,
        format: SerializationFormat::Turtle,
        namespace: None,
        source_uri: Some("design.ttl".into()),
        document_iri: None,
        created_by: None,
        name: None,
        description: None,
    })
    .await?;

    let engine = SparqlEngine::new(svc.triple_source());
    let outcome = engine
        .execute(
            "PREFIX sbol: <http://sbols.org/v3#> \
             SELECT ?s WHERE { ?s a sbol:Component }",
            Some(ResultFormat::Json),
            &SparqlOptions::default(),
        )
        .await?;
    println!("{}", String::from_utf8_lossy(&outcome.payload.body));
    Ok(())
}

Data Lab

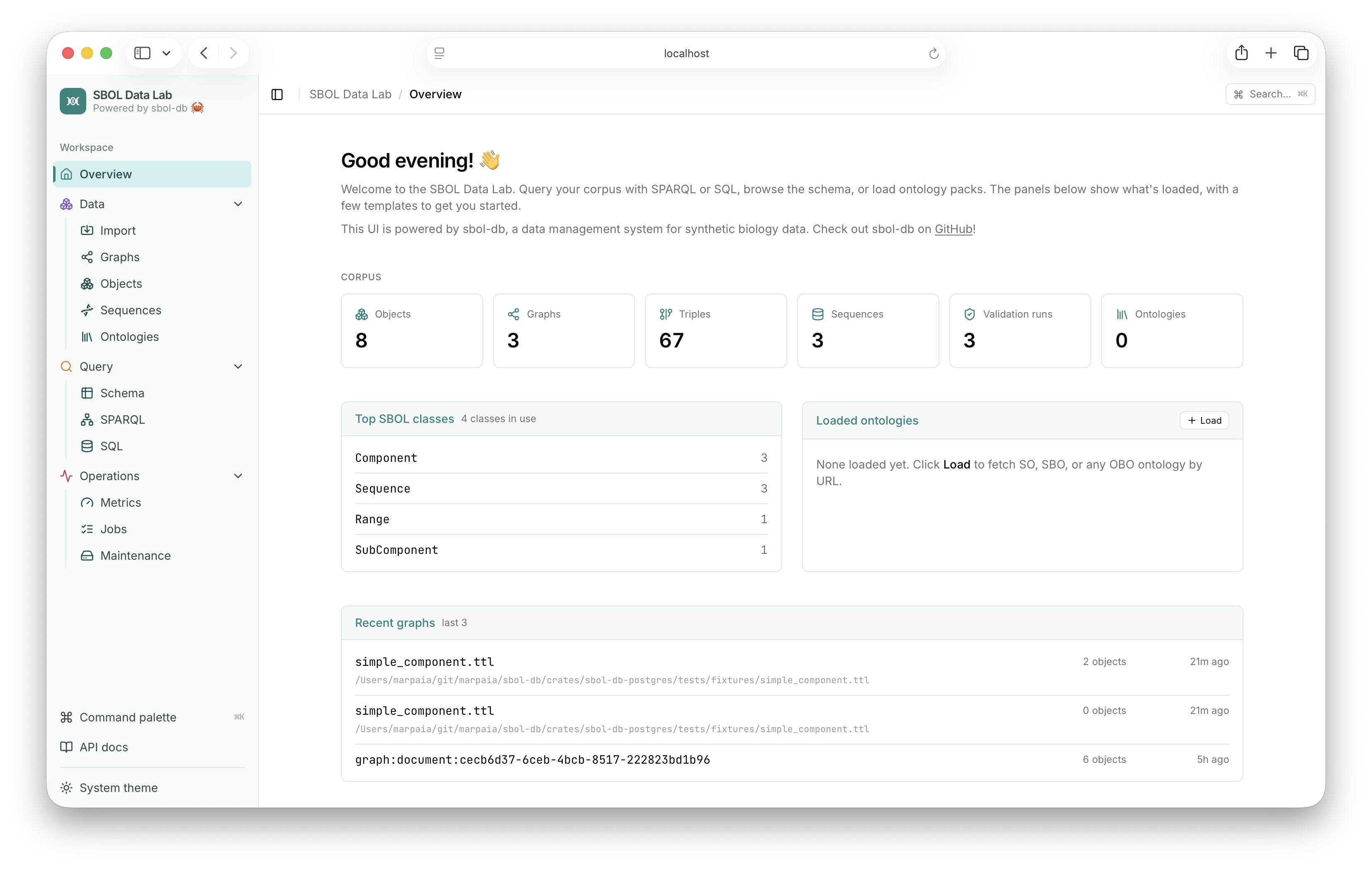

sbol-db server also serves the SBOL Data Lab, an embedded web UI at http://127.0.0.1:8888/lab. It's a single front end over the whole query surface: write SPARQL or SQL against your corpus, browse the relational schema and RDF prefixes, load ontology packs, and watch jobs and metrics. The compiled assets are baked into the binary, so the lab ships wherever the server does. See docs/ui.md.

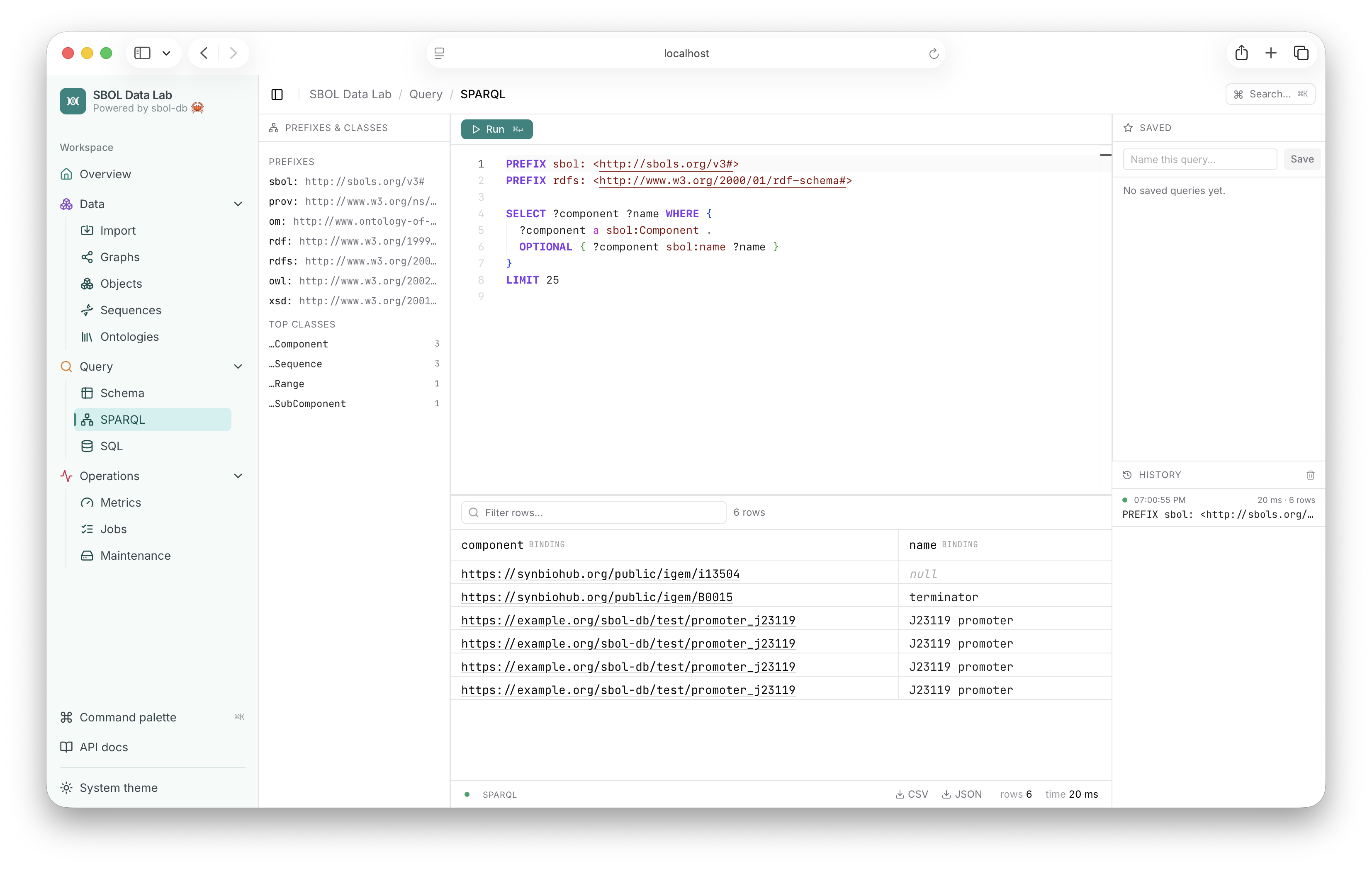

Read-only SPARQL 1.1, with a prefix and class sidebar, saved queries, and history:

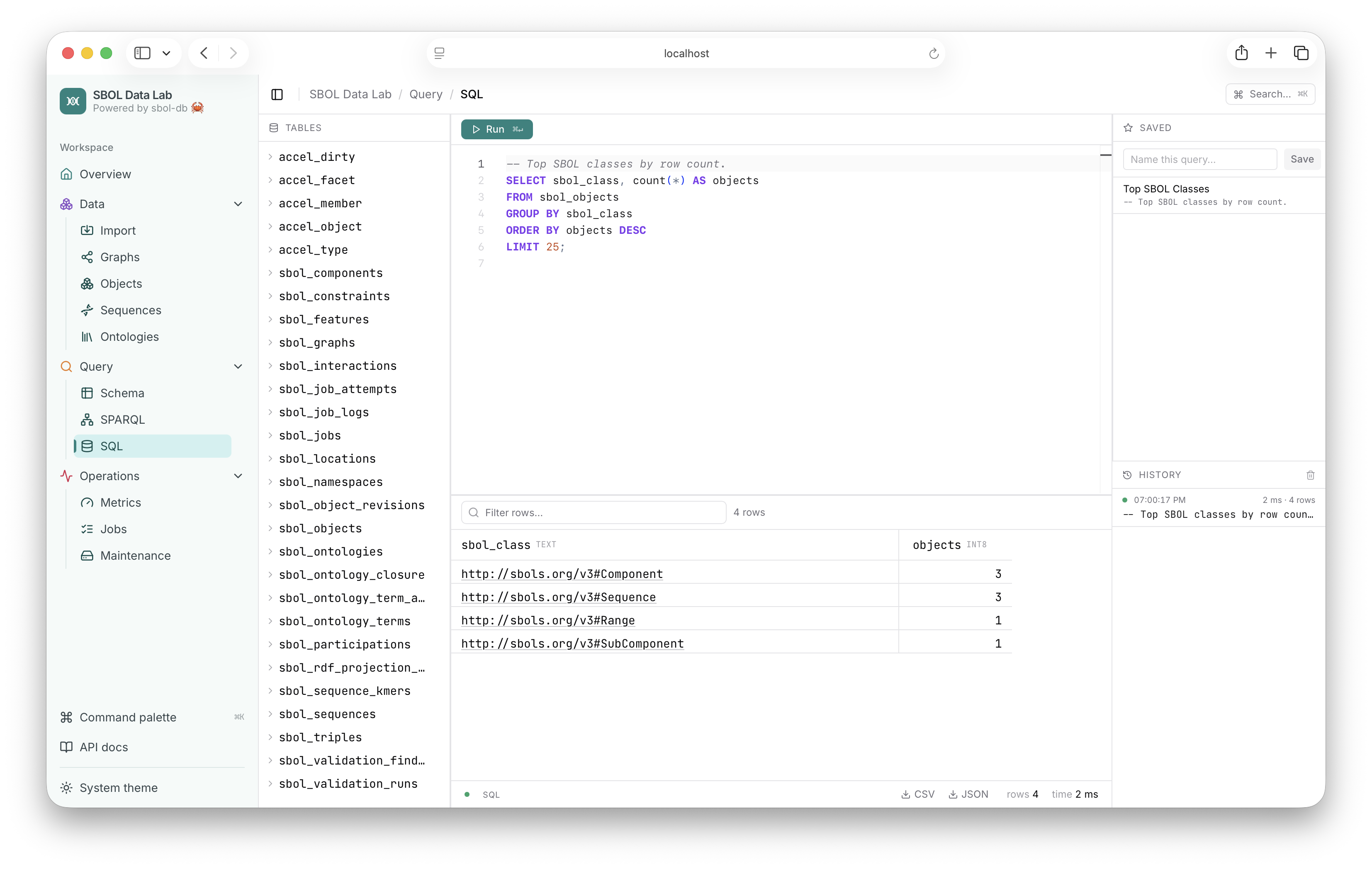

Or query the relational projection directly in SQL, with a browsable table list:

REST surface

sbol-db server starts an axum server. Routes mirror the CLI:

Method	Path	Purpose
POST	/graphs	Import SBOL RDF, GenBank, or FASTA
POST	/graphs/bulk	Atomic bulk import (≤ 100, one txn)
GET	/graphs/{id}	Graph metadata
GET	/objects?iri=...	Resolve a stored object by IRI
GET	/objects/list	Paginated corpus listing (keyset cursor)
POST	/objects/lookup	Bulk IRI → object resolution (≤ 1000)
GET	/objects/{id}/rdf	Re-emit object subgraph as RDF
GET	/objects/neighborhood	Bounded graph traversal (JSON)
GET	/objects/neighborhood.rdf	Bounded graph traversal (RDF subgraph)
GET/POST	/sparql	Read-only SPARQL 1.1 endpoint
GET/POST	/sparql-auth	SPARQL 1.1 Update (Basic auth)
*	/sparql-graph-crud-auth/	Graph Store HTTP Protocol (Basic auth)
GET	/sequences/search	Nucleotide substring + RC search
POST	/sequences/search	Bulk pattern search (≤ 256 patterns)
GET/POST	/ontology	List / load ontologies
GET	/ontology/term	Term metadata (resolves IRI aliases)
GET	/ontology/descendants	Transitive closure for a term
POST	/jobs	Enqueue an async job (returns id)
GET	/jobs	List recent jobs (filterable)
GET	/jobs/{id}	One job (status, result, error)
POST	/jobs/{id}/cancel	Cancel a queued or running job
GET	/healthz	Static liveness probe
GET	/readyz	Postgres SELECT 1 readiness probe
GET	/metrics	Prometheus metrics exposition
GET	/docs	Interactive API docs (Scalar UI)
GET	/openapi.json	OpenAPI 3.1 schema

See docs/sparql.md for the SPARQL Protocol shape, docs/neighborhood.md for traversal parameters, docs/sequences.md for the k-mer search, and docs/ontology.md for ontology loading.

sbol-db can also stand in for the Virtuoso triplestore behind SynBioHub: the /sparql-auth and /sparql-graph-crud-auth/ endpoints implement the authenticated write surface SynBioHub expects, storing RDF verbatim. See docs/synbiohub.md.

Async batch processing

For corpus-scale imports and background work, sbol-db ships a Postgres-backed async job runtime that distributes work across every node in the cluster — no sidecar broker, no leader election, no extra infra. Each sbol-db server pod embeds a worker by default; multiple pods share the database safely via FOR UPDATE SKIP LOCKED.

• POST /jobs and sbol-db jobs enqueue for fire-and-poll bulk imports, including worker-side public HTTPS imports for remote SBOL, GenBank, and FASTA sources.
• At-least-once delivery with idempotency keys, exponential backoff, and a dead-letter queue.
• Embedded or dedicated workers — run sbol-db server everywhere, or split the API and worker fleets with --no-worker and sbol-db worker.
• Observable via Prometheus: queue depth, oldest-queued age, per-kind throughput and durations, worker heartbeats. See the deployment guide.

# Enqueue an import job (returns a UUID immediately).
sbol-db jobs enqueue import_document @payload.json \
  --idempotency-key=doc:42
sbol-db jobs enqueue import_remote_document @remote-payload.json

# Poll until done.
sbol-db jobs status <uuid>

See docs/deployment.md#async-job-runtime for deployment shapes (single-node, two-node HA, dedicated worker fleet) and operator-surface details.

Workspace layout

Crate	Purpose
sbol-db-core	Domain types shared across the workspace. No I/O dependencies.
sbol-db-storage	Backend-neutral storage contract: the SbolStore / TripleSource traits and their request/response types. Names no concrete database.
sbol-db-rdf	sbol::Document ↔ triples projection, RDF export, content hashing.
sbol-db-derive	Pure import plan builder: parse, derive triples and object summaries, validate. No database.
sbol-db-postgres	Postgres implementation of the storage contract: sqlx repositories, embedded migrations, the SbolObjectService entry point.
sbol-db-sqlite	SQLite implementation of the storage contract: a single-file, embedded SQL engine.
sbol-db-rocksdb	RocksDB implementation: an embedded, dictionary-encoded, permuted-index triplestore.
sbol-db-backend	Backend factory: Backend::open routes a connection string to the engine its scheme selects.
sbol-db-conformance	Backend-neutral conformance suite every engine passes through the trait surface.
sbol-db-sparql	Read-only SPARQL evaluator (spareval::QueryableDataset over any TripleSource).
sbol-db-jobs	Async job runtime — JobHandler trait, registry, worker, built-in handlers.
sbol-db-ui	Embedded data-lab SPA served at /lab (React + Vite, baked in via rust-embed).
sbol-db-server	axum HTTP API.
sbol-db	CLI binary.

The boundary between the storage backends and sbol-db-sparql is the TripleSource trait in sbol-db-storage: SPARQL evaluation never touches a concrete database, only the trait's pattern-scan method. That seam is what lets SQLite and RocksDB serve the same query surface as Postgres. See the crate guide and storage.md for details.
