Borderlands Live Feed

An UnrealEngine PythonSDK mod for Borderlands 2 and Borderlands: The Pre-Sequel! that provides access to continuously up-to-date information about the current game.

Borderlands Live Feed outputs information on the current character and game mode instantly as they change in-game, outputting the raw information to a JSON file. This JSON file may be accessed by client applications for any desired application.

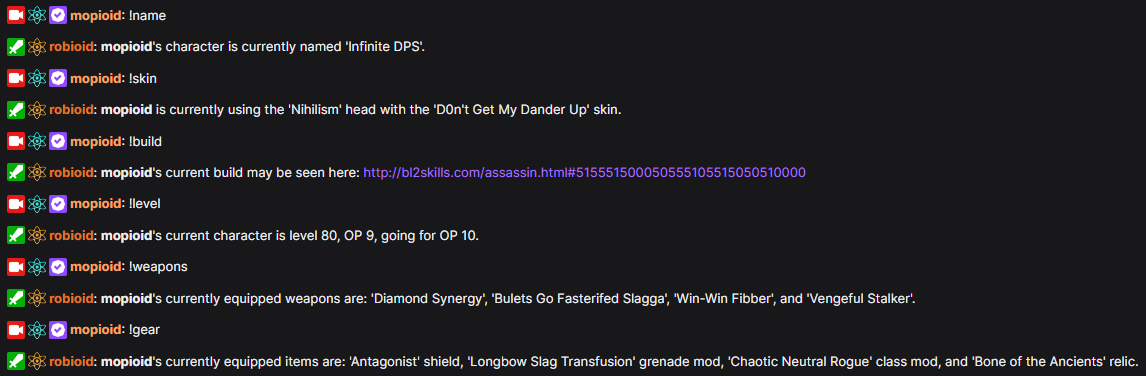

Included with Borderlands Live Feed is a script for Streamlabs Chatbot, which allows Twitch and YouTube streamers to provide information about their game via chat commands (see above image).

Installation

Begin by downloading the latest version of Borderlands Live Feed.

Mod Installation (Required)

1. Install UnrealEngine PythonSDK if you have not already.

2. Locate the SDK's Mods folder (located in the Win32 folder of the Binaries folder of your BL2/TPS installation).

3. Copy the LiveFeed folder from the Mods folder in BorderlandsLiveFeed.zip to the SDK's Mods folder.

4. Launch the game, select "Mods" from the main menu, then select "Live Feed" to enable it.

Streamlabs Chatbot Installation (Optional)

1. Launch Streamlabs Chatbot if it is not already running.

2. Navigate to the Scripts section in Streamlabs Chatbot's sidebar. If you have not done so previously, you must configure Streamlabs Chatbot to be able to use scripts.

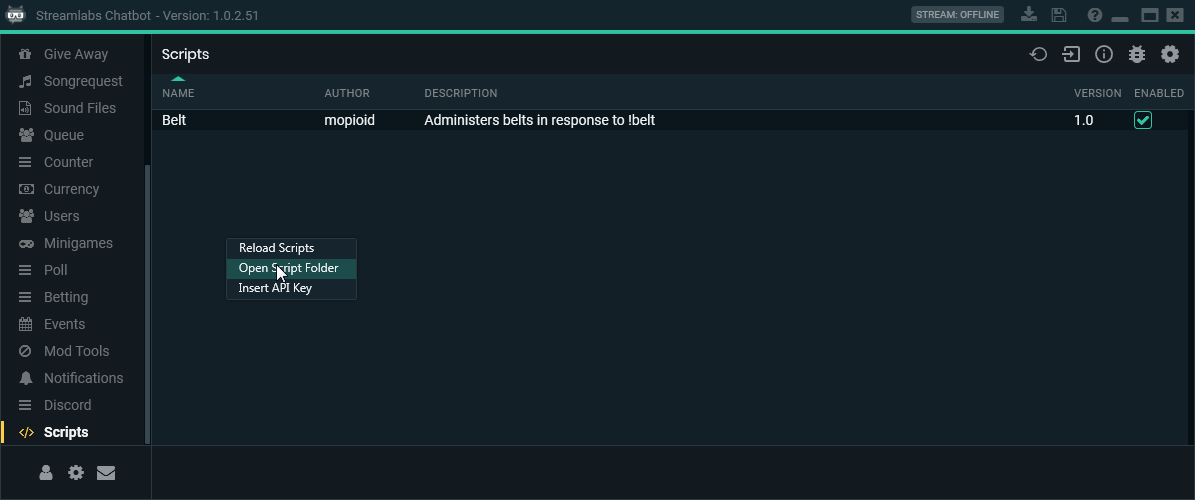

3. Right-click in the scripts window and select "Open Script Folder."

4. Copy the BorderlandsLiveFeed folder from the Chatbot folder in Borderlands-Live-Feed-master.zip to Streamlabs Chatbot's Scripts folder.

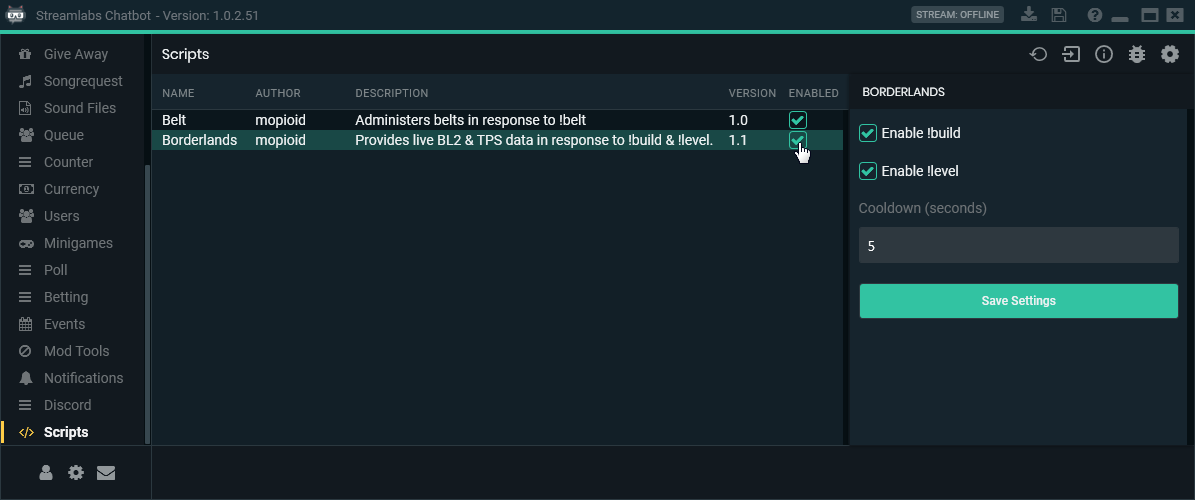

5. In Streamlabs Chatbot's Scripts window, click the circular Reload Scripts icon, and "Borderlands" should appear in the list.

6. Click the checkbox next to Borderlands to enable it.

7. See Streamlabs Chatbot Usage for details on setting up commands.

Usage

JSON Usage (Advanced)

Borderlands Live Feed outputs its information to %APPDATA%\BorderlandsLiveFeed\Output.json.

Example output:

{
    "name": "Sniper Aurelia",
    "class": "Baroness",
    "head": "Aurelia",
    "skin": "Aurelia's Designer Ensemble",
    "level": 70,
    "OPLevel": null,
    "playthrough": 2,
    "currentPlaythrough": 1,
    "currentOPLevel": null,
    "map": "Eridian_slaughter_P",
    "weapons": ["Barking Rakehell", "Pacifying Wet Week", "Skookum Skullmasher", "Streamlined Omni-Cannon"],
    "shield": "Naught",
    "grenade": "Longbow Cryo Transfusion",
    "classMod": "Uninterested Sport Hunter Class Mod",
    "relic": "3DD1.E",
    "skills": [4,5,5,0,5,1,0,1,0,5,0,1,4,1,5,1,5,1,5,0,0,0,1,1,2,1,2,0,1,5,0,5,0,0,0,0,0]
}

Fields are assigned null if unavailable.

The weapon field will always be an array of a length of 4, with each member corresponding to a weapon slot (members corresponding to empty weapon slots are assigned null).

The skills field is an array of integers corresponding to the number of points spent in each skill. This corresponds to the URL formats of bl2skills.com and thepresequel.com.

Streamlabs Chatbot Usage

While the Borderlands Live Feed script is enabled in Chatbot, various parameters are available to be used in Commands:

Parameter	Description	Example output
$blname	Character class and name	a Baroness named 'Sniper Aurelia'
$blskin	Head and skin customizations	'Aurelia' head with the 'Aurelia's Designer Ensemble' skin
$blbuild	Skill tree URL	http://thepresequel.com/Aurelia/4550510105014151515000112120150500000
$bllevel	Level and playthrough	level 70 in UVHM, currently playing in TVHM
$blweapons	Equipped weapons	'Barking Rakehell', 'Pacifying Wet Week', 'Skookum Skullmasher', and 'Streamlined Omni-Cannon'
$blgear	Equipped gear	'Naught' shield, 'Longbow Cryo Transfusion' grenade mod, 'Uninterested Sport Hunter' class mod, and '3DD1.E' relic

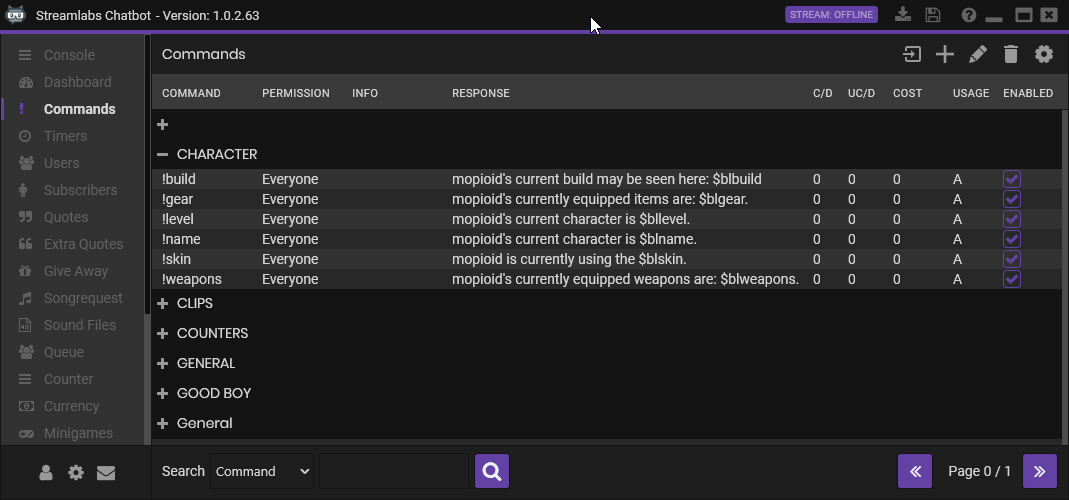

See screenshot for suggested usage of these parameters:
