draft: replace revm execution paths with evm2

[onbjerg]

Draft only. This is just an experiment/PoC hacky integration of evm2. This is not mergeable.

Replaces the main revm-backed execution paths with evm2 and removes the revm dependency from the workspace. This gets sync execution running through evm2, but the branch is intentionally dirty and still has several parked/stubbed paths.

Known remaining work:

• Untangle SpecId handling.
• Unvendor the temporary reth-core crates.
• Misc cleanup across touched crates.
• Untangle abstractions that are revm-specific rather than evm2-specific.
• Re-add inspectors and re-enable stubbed features:
  • reth-bb / BAL execution paths.
  • RPC call, estimate gas, trace, debug, simulate, and bundle execution helpers.
  • Custom inspector and precompile-cache examples.
  • Payload builder / BAL hooks that were parked.
  • Invalid-block/reorg witness paths that previously relied on revm inspectors or revm state adapters.

[onbjerg]

derek bench blocks=500 warmup=125 baseline=main feature=codex/excise-revm bal=false cores=0 run-pairs=2 otlp=true metrics=false samply slack=always

[decofe]

cc @onbjerg

✅ Benchmark complete! View job

Benchmark Results

Configuration

• Derek command: derek bench blocks=500 warmup=125 baseline=main feature=codex/excise-revm bal=false cores=0 run-pairs=2 otlp=true metrics=false slack=always samply

Metric	main	codex/excise-revm	Change
Mean	30.24ms	116.19ms	+284.25% ❌ (±0.86%, floor 1.20%)
P50	26.02ms	103.40ms	+297.44% ❌ (±0.91%, floor 1.20%)
P90	46.10ms	194.23ms	+321.37% ❌ (±0.69%, floor 1.35%)
P99	170.42ms	295.61ms	+73.46% ❌ (±6.71%, floor 5.00%)
Mgas/s	1090.75	273.49	-74.93% ❌ (±0.47%, floor 1.20%)
Wall Clock	30.75s	117.57s	+282.37% ❌ (±0.89%, floor 0.70%)
Persist Wait	26.50ms	0.12ms	-99.55% ✅ (±1.55%, floor 5.00%)

500 blocks, 125 warmup, 2 run pairs

Wait Time Breakdown

Persistence Wait

Metric	main	codex/excise-revm
Mean	26.50ms	0.12ms
P50	0.03ms	0.03ms
P95	271.93ms	0.23ms

Trie Cache Update Wait

Metric	main	codex/excise-revm
Mean	0.14ms	0.06ms
P50	0.00ms	0.00ms
P95	0.76ms	0.36ms

Execution Cache Update Wait

Metric	main	codex/excise-revm
Mean	0.00ms	0.00ms
P50	0.00ms	0.00ms
P95	0.00ms	0.00ms

Target Metrics

Metric	Baseline	Feature	Change
reth_database_transaction_opened_total{mode="read-write"} mean	0.3158	0.5094	+61.31% ❌ (±9.86%, floor 10.00%)
reth_database_transaction_opened_total{mode="read-only"} mean	81.5475	64.7762	-20.57% ✅ (±2.22%, floor 7.50%)
reth_sync_block_validation_state_root_histogram mean	0.0021	0.0138	+553.31% ❌ (±7.17%, floor 5.00%, materiality 5.88ms)
reth_trie_proof_task_account_worker_idle_time_seconds mean	453.53ms	3155.21ms	+595.71% ✅ (±1.39%, floor 7.50%)
reth_trie_proof_task_storage_worker_idle_time_seconds mean	475.22ms	3174.32ms	+567.96% ✅ (±2.04%, floor 5.00%)
reth_tree_root_sparse_trie_idle_time_seconds mean	8.51ms	101.48ms	+1092.29% ✅ (±2.20%, floor 7.50%, materiality 17.64ms)
reth_tree_root_hashing_task_idle_time_seconds mean	26.08ms	101.21ms	+288.03% ✅ (±1.09%, floor 5.00%)
reth_database_transaction_close_duration_seconds{mode="read-write",outcome="commit"} mean	15.60ms	21.74ms	+39.40% ❌ (±2.72%, floor 5.00%, materiality 16.81ms)
reth_storage_providers_database_save_blocks_commit_mdbx mean	0.0156	0.0218	+39.41% ❌ (±2.74%, floor 5.00%, materiality 15.99ms)
reth_storage_providers_database_save_blocks_commit_rocksdb mean	0.0027	0.0031	+16.57% ❌ (±2.40%, floor 2.50%, materiality 0.94ms)
reth_storage_providers_database_save_blocks_mdbx mean	32.06ms	38.18ms	+19.11% ❌ (±1.15%, floor 5.00%)

Observability

• Logs
• Traces

Charts

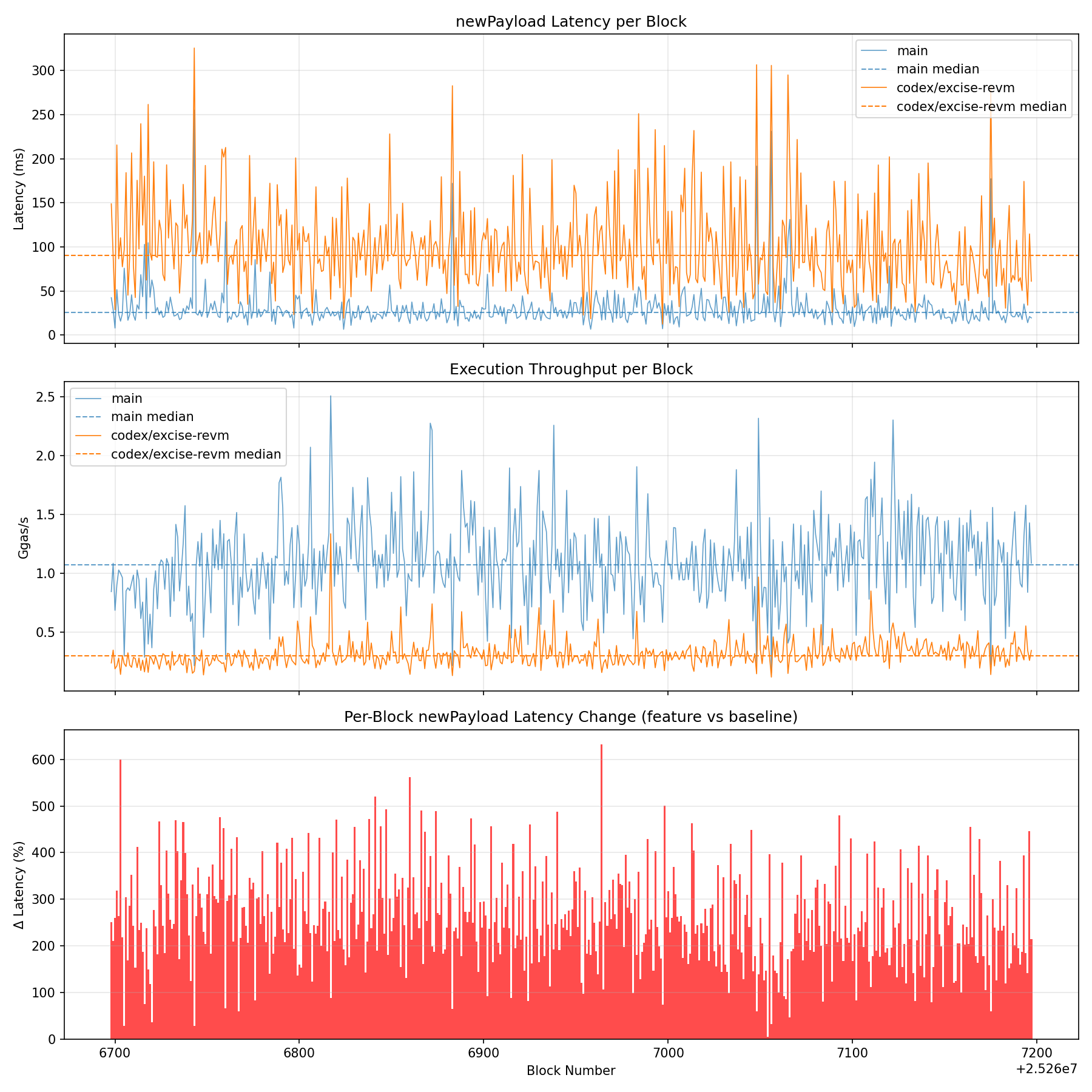

Latency, Throughput & Diff

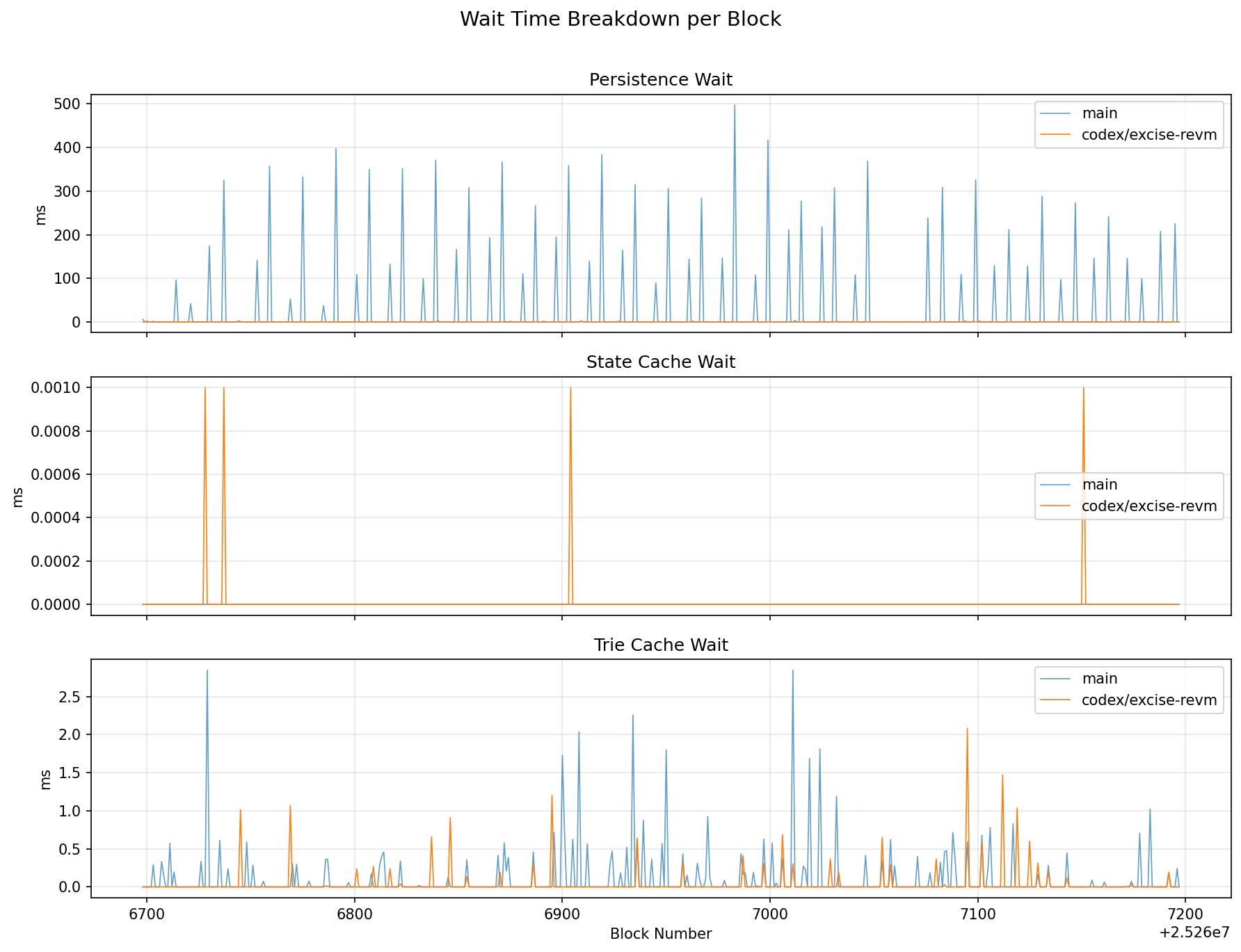

Wait Time Breakdown

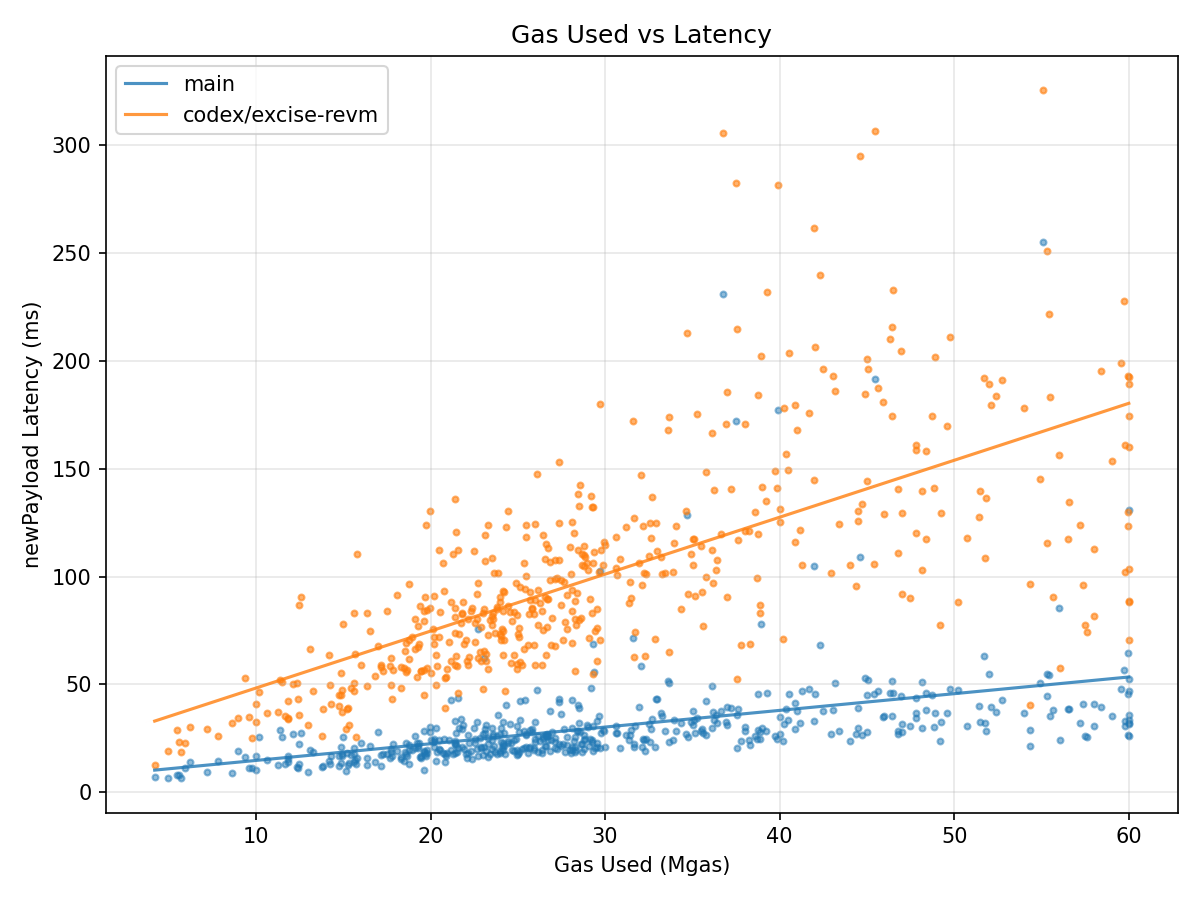

Gas vs Latency

Samply Profiles

• baseline-1: Firefox Profiler
• baseline-2: Firefox Profiler
• feature-1: Firefox Profiler
• feature-2: Firefox Profiler

[onbjerg]

derek bench blocks=500 warmup=125 baseline=main feature=codex/excise-revm bal=false cores=0 run-pairs=1 otlp=true slack=never samply

[decofe]

cc @onbjerg

✅ Benchmark complete! View job

Benchmark Results

Configuration

• Derek command: derek bench blocks=500 warmup=125 baseline=main feature=codex/excise-revm bal=false cores=0 run-pairs=1 otlp=true metrics=false slack=never samply

Metric	main	codex/excise-revm	Change
Mean	30.29ms	101.32ms	+234.49% ❌ (±10.57%, floor 1.20%)
P50	25.81ms	90.65ms	+251.22% ❌ (±16.09%, floor 1.20%)
P90	45.61ms	175.47ms	+284.71% ❌ (±25.79%, floor 1.35%)
P99	172.00ms	282.65ms	+64.33% ❌ (±28.78%, floor 5.00%)
Mgas/s	1095.37	318.61	-70.91% ❌ (±2.34%, floor 1.20%)
Wall Clock	15.43s	51.55s	+234.11% ❌ (±10.64%, floor 0.70%)
Persist Wait	26.05ms	0.07ms	-99.72% ✅ (±27.32%, floor 5.00%)

500 blocks, 125 warmup, 1 run pairs

Wait Time Breakdown

Persistence Wait

Metric	main	codex/excise-revm
Mean	26.05ms	0.07ms
P50	0.03ms	0.03ms
P95	241.52ms	0.08ms

Trie Cache Update Wait

Metric	main	codex/excise-revm
Mean	0.10ms	0.04ms
P50	0.00ms	0.00ms
P95	0.59ms	0.24ms

Execution Cache Update Wait

Metric	main	codex/excise-revm
Mean	0.00ms	0.00ms
P50	0.00ms	0.00ms
P95	0.00ms	0.00ms

Target Metrics

Metric	Baseline	Feature	Change
reth_database_transaction_opened_total{mode="read-write"} mean	0.3206	0.5078	+58.38% ❌ (±41.81%, floor 10.00%)
reth_database_transaction_opened_total{mode="read-only"} mean	83.2692	64.8663	-22.10% ✅ (±8.12%, floor 7.50%)
reth_sync_block_validation_state_root_histogram mean	0.0021	0.0138	+556.88% ❌ (±50.56%, floor 5.00%, materiality 5.15ms)
reth_trie_proof_task_account_worker_idle_time_seconds mean	464.15ms	2711.75ms	+484.24% ✅ (±61.91%, floor 7.50%)
reth_trie_proof_task_storage_worker_idle_time_seconds mean	482.67ms	2731.54ms	+465.92% ✅ (±57.83%, floor 5.00%)
reth_tree_root_sparse_trie_idle_time_seconds mean	8.71ms	86.66ms	+894.61% ✅ (±114.64%, floor 7.50%, materiality 15.46ms)
reth_tree_root_hashing_task_idle_time_seconds mean	26.21ms	86.35ms	+229.51% ✅ (±35.39%, floor 5.00%)

Observability

• Logs
• Traces

Charts

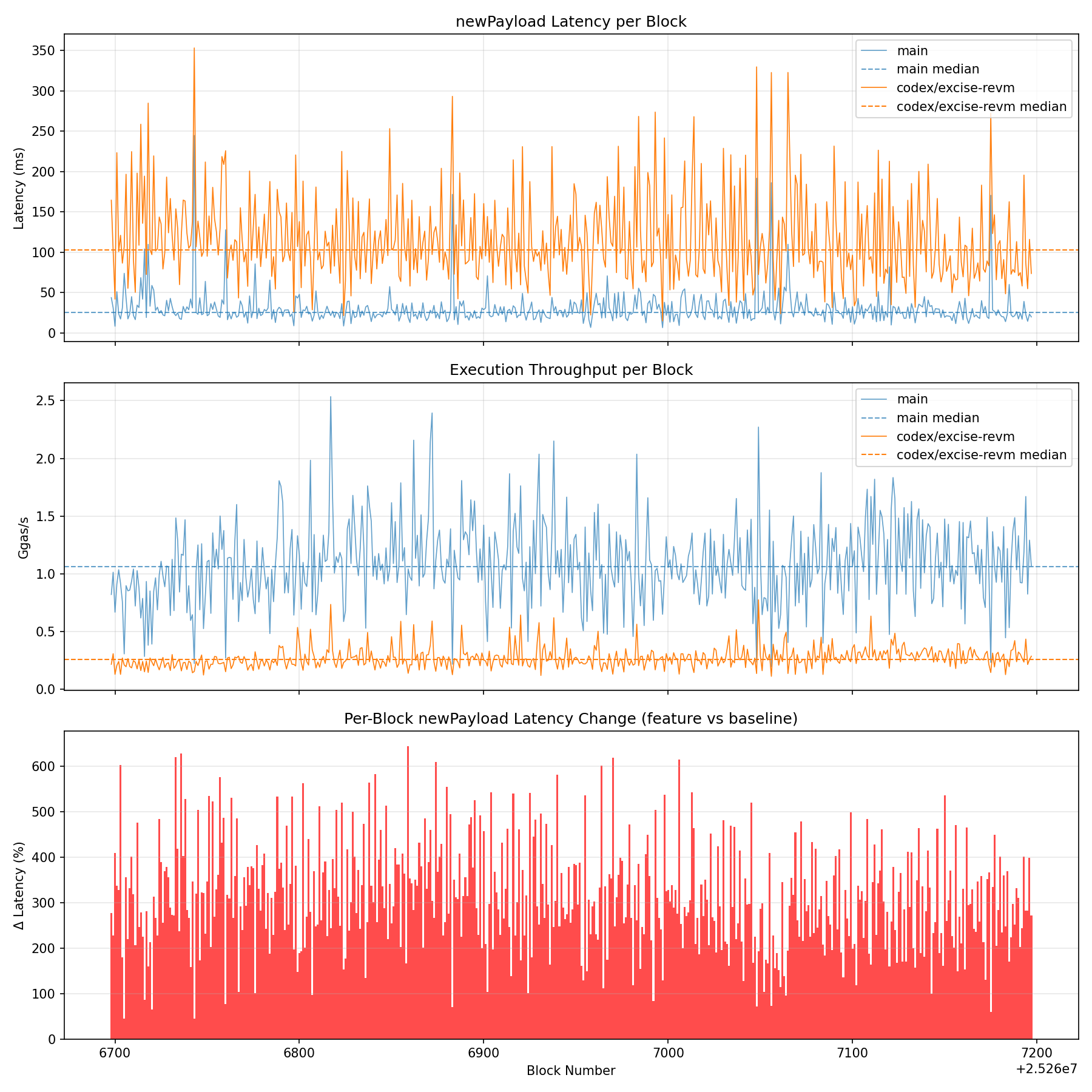

Latency, Throughput & Diff

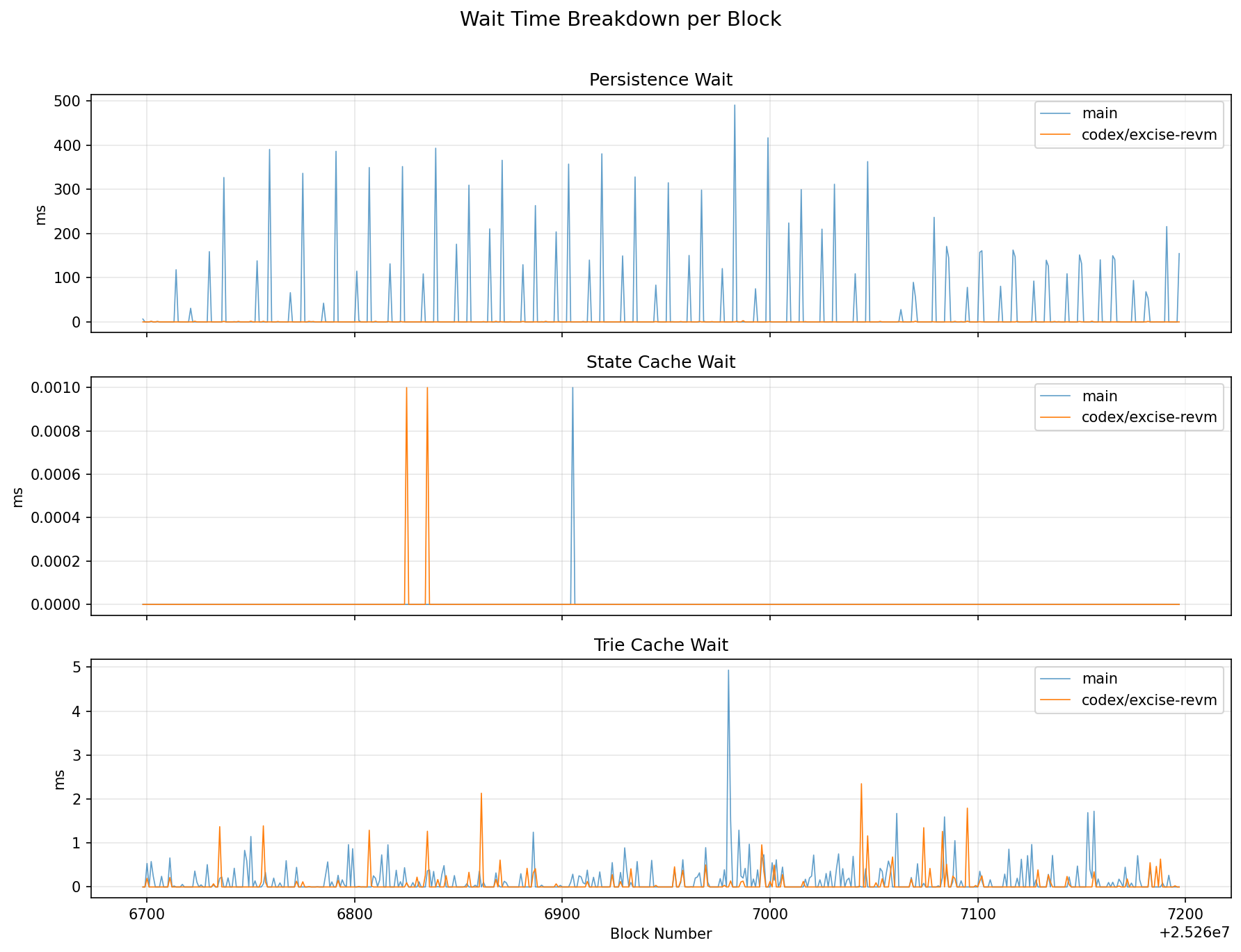

Wait Time Breakdown

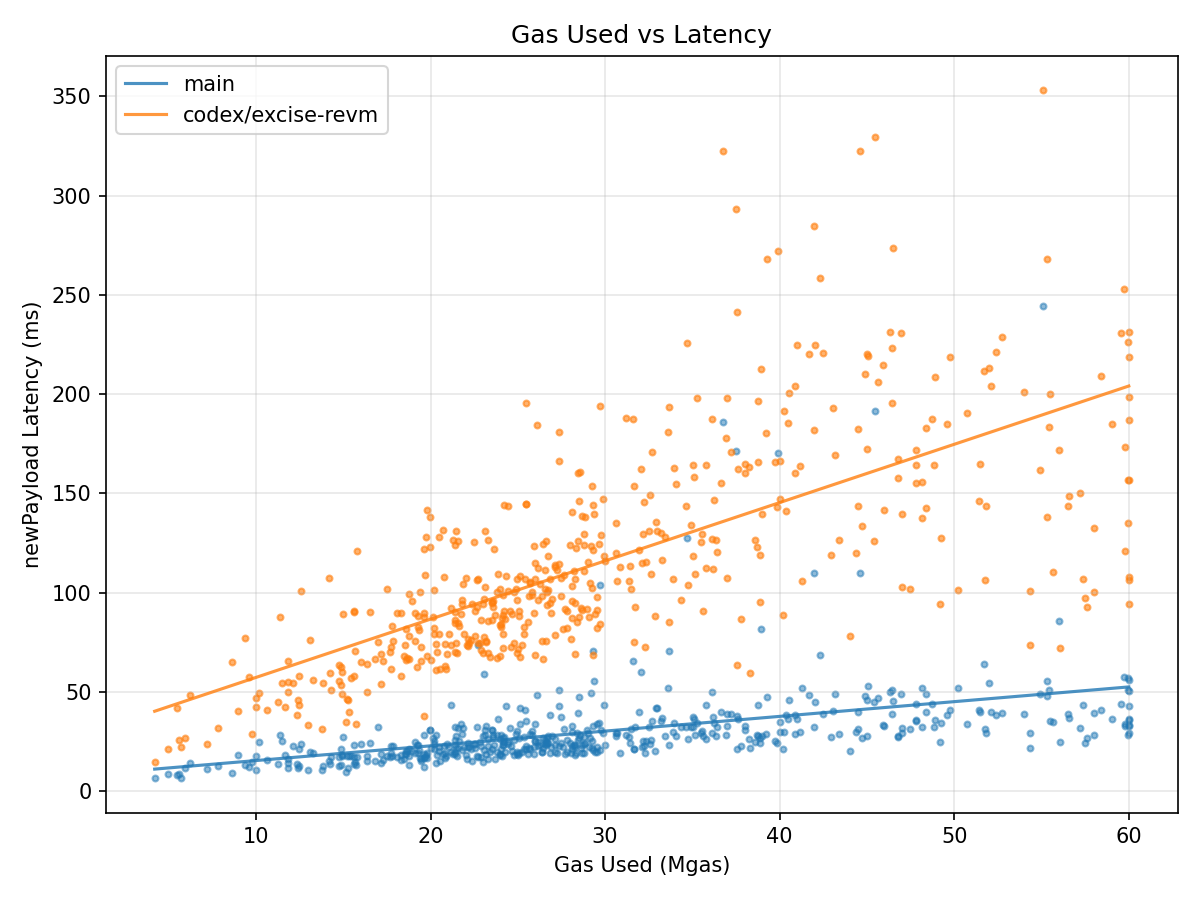

Gas vs Latency

Samply Profiles

• baseline-1: Firefox Profiler
• feature-1: Firefox Profiler
