A Computer Vision method for Object Tracking which uses NeRF templates and feature-metric alignment to robustly track the 6DoF pose of a known object.
With pixtrack, you can:
- Create an object-level NeRF and a corresponding SFM model capturing its 3D keypoint structure

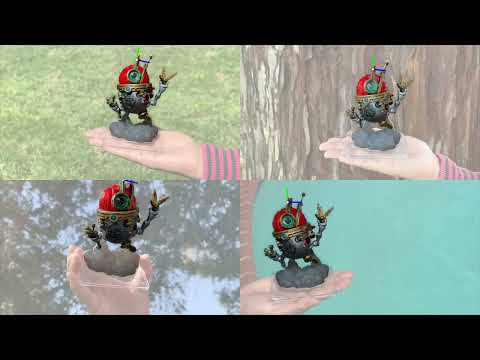

- Run 6-DoF object tracking on a video file and visualize the pose trajectory of the object with respect to the camera
Follow these steps:
Step1: Update the cuda version in pixtrack/DockerFile and setup.sh to the version on your machine/server.
Step2: Setting up the environment.
git clone [email protected]:GiantAI/pixtrack.git
cd pixtrack
docker build -t pixtrack .
source run_docker.sh
cd pixtrack
source setup.shBefore you can run object pose tracking, you need to do the following:
- Collect object data following the protocol.
- Create an SfM using the collected images.
- Train a NeRF using the images and the SfM.
- Create an object SfM using the NeRF.
Currently, we use environment variables to set paths to the data, sfm, nerf, etc. An example config file is provided (config/gimble.sh).
Once data is collected (step 1), and assuming the paths are set in the config file, run the following (steps 2-4):
source config/gimble.sh
python3 scripts/run_reconstruction.py --images_path $PIXSFM_DATASETS/$OBJECT/ --outputs_path $PIXSFM_OUTPUTS/$OBJECT
source train_ingp_nerf.sh
python3 scripts/create_nerf_dataset_and_sfm.py
python3 scripts/augment_sfm.pyAn example dataset of the premier_protein object can be found here
To run object tracking, do this:
cd ~/pixtrack
python3 pixtrack/pose_trackers/pixloc_tracker_r9.py --query <path to directory with query images> --out_dir <path to output directory>
python3 pixtrack/visualization/run_vis_on_poses.py --out_dir <path to output directory containing object tracking results>To create a video from a folder of images, do this:
cd <path to output dirctory containing images>
ffmpeg -start_number 1 -pattern_type glob -i '*.jpg' -c:v libx264 -vf "fps=30,format=yuv420p" overlay.mp4
